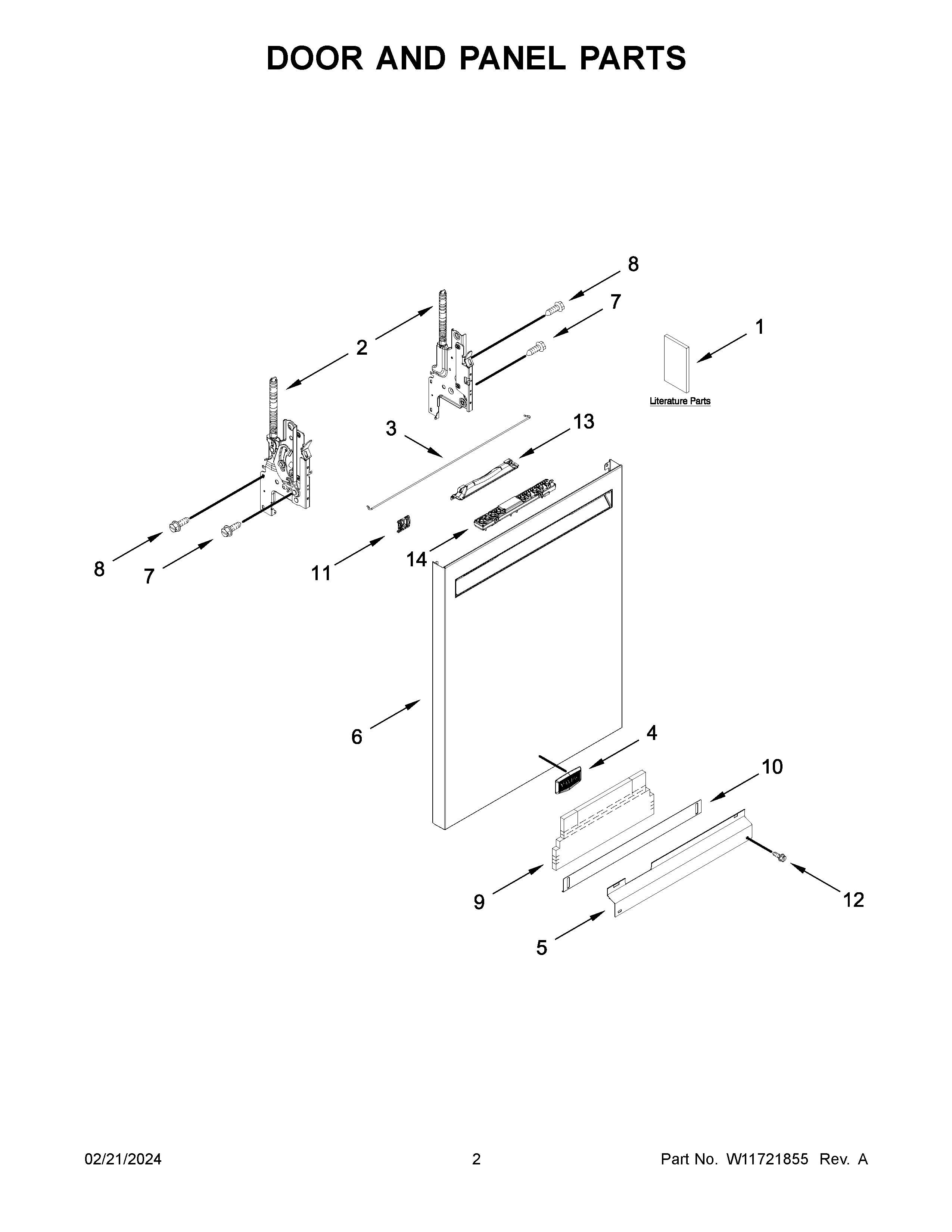

MDB4949SKZ3 02 – DOOR AND PANEL PARTS

MDB4949SKZ3 02 – DOOR AND PANEL PARTS

Written by

in

MDB4949SKZ3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BTECH SHEET
1AENERGY GUIDE
1OWNERS MANUAL
2HINGE-DOOR
2AW11712996 Whirlpool Door Hinge
3W11377160 Whirlpool Brace Assembly
4WPW10612925 Whirlpool Microwave Nameplate
5W11545318 Whirlpool Toekick Plate
5AW11110746 Whirlpool Panel
6PANEL
6AW11659650 Whirlpool Panel
6BW11659651 Whirlpool Panel
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10AW11467726 Whirlpool Toe Panel
10W11579528 Whirlpool Toe Panel
11W10692757 Whirlpool Dishwasher Nut Assembly
12ASCREW
12W11551775 Whirlpool Screw
13AHANDLE (WHITE)
13W11242122 Whirlpool Dishwasher Handle
13BHANDLE (GREY)
14W11659652 Whirlpool UI Panel with Core
