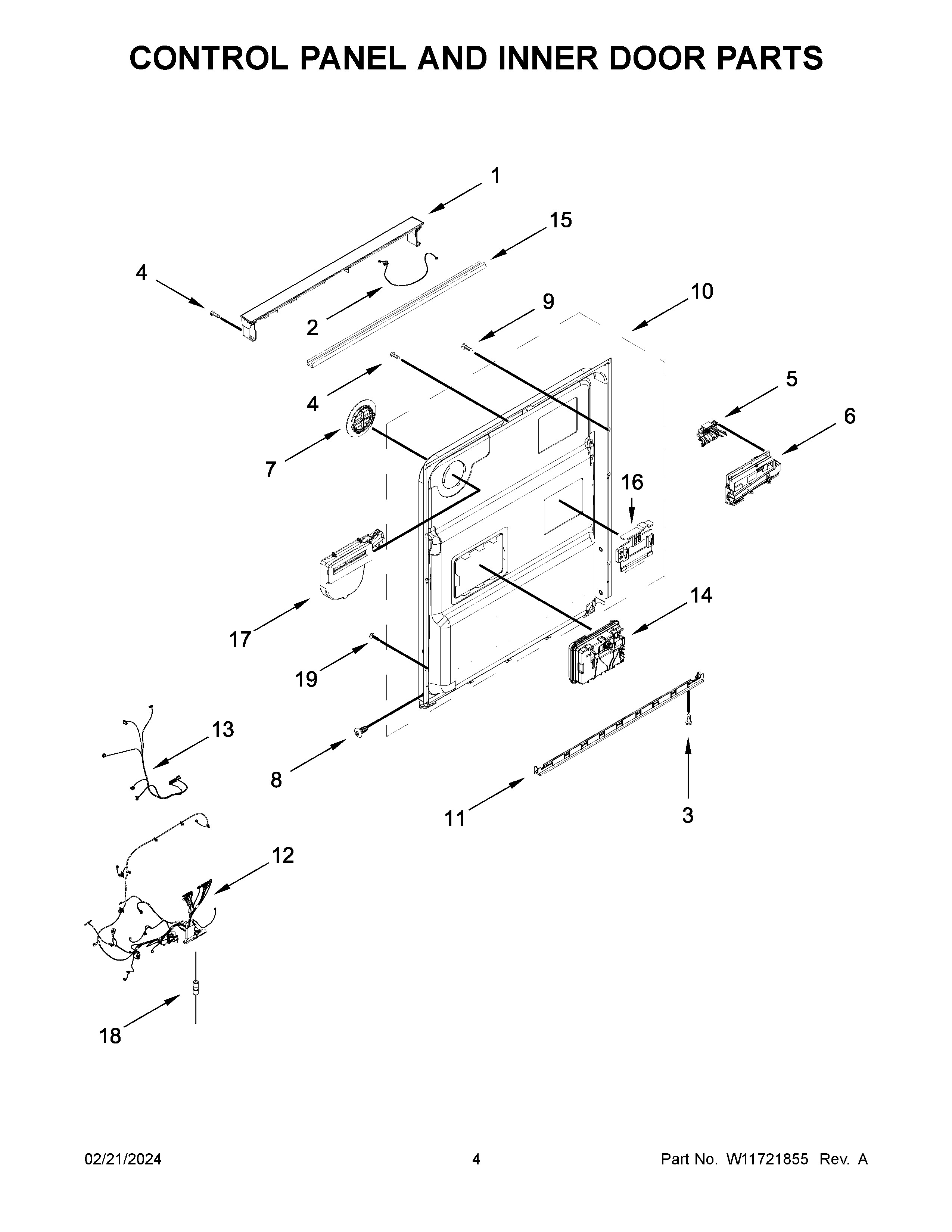

MDB4949SKZ3 03 – CONTROL PANEL AND INNER DOOR PARTS

MDB4949SKZ3 03 – CONTROL PANEL AND INNER DOOR PARTS

Written by

in

MDB4949SKZ3 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1W11630613 Whirlpool Control Panel
1ACONSOLE CAP (WHITE)
2W11627526 Whirlpool Wire Harness
3W11627527 Whirlpool Screw
4WPW10213953 Whirlpool Screw
5W11412299 Whirlpool Dishwasher Door Latch
6W11660283-includeCORE Whirlpool W11660283 Microwave Electronic Control Board with Core
7W11545290 Whirlpool Deflector
8WP3400071 Whirlpool Screw
9WPW10348409 Whirlpool Screw
10W11559689 Whirlpool Door Inner
11W11664713 Whirlpool Dishwasher Lower Door Seal
12HARNS-WIRE
13W11611303 Whirlpool Wire Harness
14DISPENSER
15W11213719 Whirlpool Dishwasher Seal
16W11088985 Whirlpool Bracket Assembly
17VENT
18W11397505 Whirlpool Wire Harness
19WPW10348408 Whirlpool Dishwasher Screw
