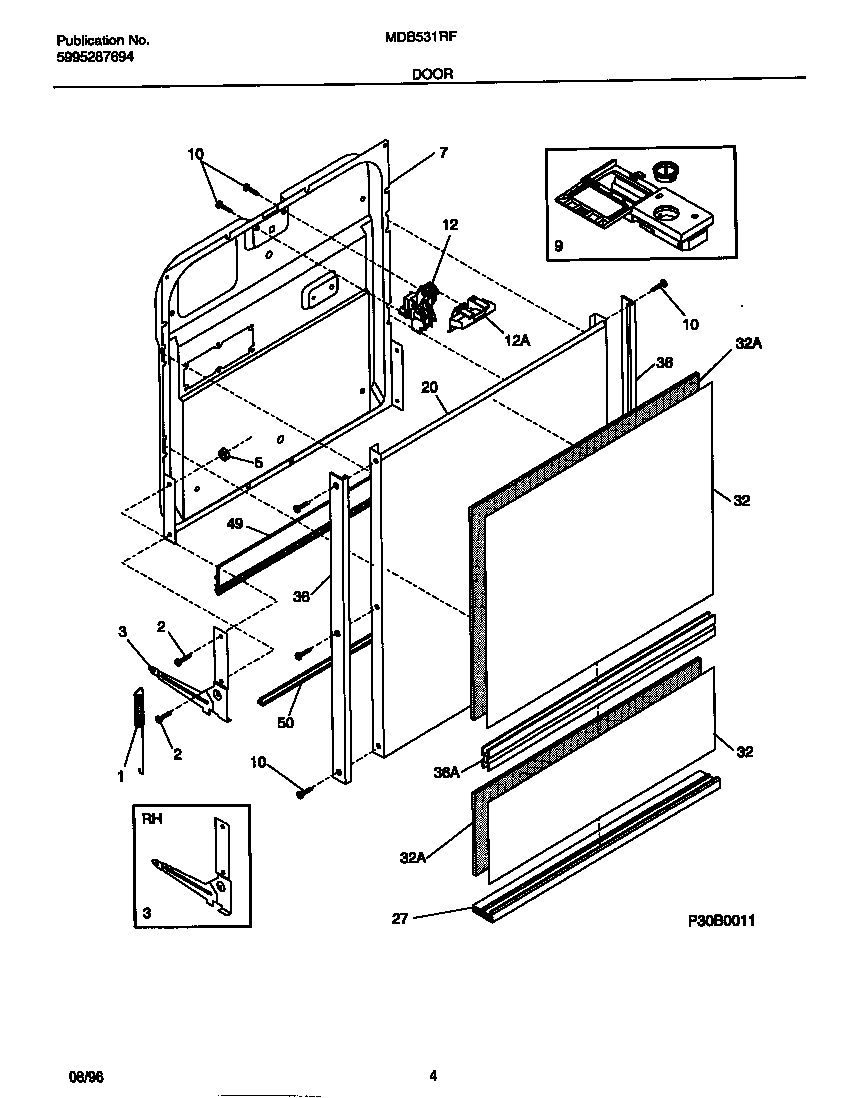

MDB531RFR0 03 – DOOR

Products

Position	Product
*36084	WCI 154200501
*36085	WCI 154200601
*36086	SCREW-8 X 5/8“ (2)
1	154430501 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3	PIN-ARM (NOT ILLUSTRATED)
3	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154210501
9	154574401 Frigidaire Dishwasher Dispenser
10	154419403 Frigidaire Dishwasher Screw
12	5304442175 Frigidaire Black Door Latch Assembly
20	WCI 154210601
27	WCI 154257604
32	WCI 154229104
32	WCI 154229106
32	WCI 154229105
32	WCI 154229103
32	WCI 154229003
32	WCI 154229002
36	WCI 154254204
36	WCI 154254504
49	WCI 154244701
50	WCI 154211401
