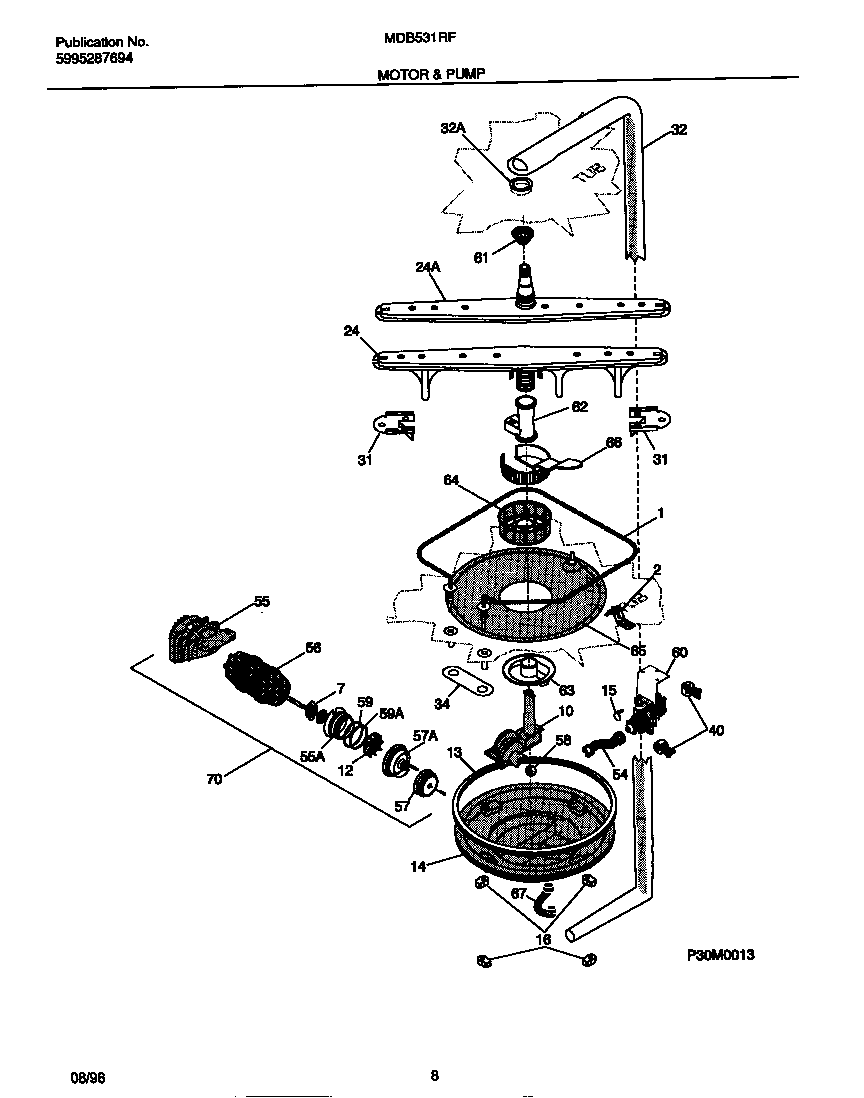

MDB531RFR0 05 – MOTOR & PUMP

MDB531RFR0 05 – MOTOR & PUMP

Written by

in

MDB531RFR0 05 – MOTOR & PUMP

Products

PositionProduct
*36102WCI 154227804
*36093BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*36095WCI 154247201
*36090SCREW, SS IMPELLER (NOT ILLUSTRATED)
*36089154106202 Frigidaire Dishwasher Heater Nut
*36099154289801 Frigidaire Dishwasher Shield
*36097WCI 154247401
*36098154754901 Frigidaire Dishwasher Screw
*36096154348401 Frigidaire Dishwasher Clamp
*36100SCREW
*36092WCI 154200901
*36103154241101 Frigidaire Dishwasher Retainer
*36091WCI 154252001
*36101WCI 5303316032
*36094CLAMP, HOSE
1154665201 Frigidaire Dishwasher Heater
2WCI 154211001
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154245401
15WCI 154246701
16WCI 154246501
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24154313601 Frigidaire Dishwasher Control Arm P1
31WCI 154281001
32WCI 154251701
32WCI 154251601
34WCI 154064901
40154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154246201
55WCI 154245601
56WCI 154245701
57WCI 154246001
57WCI 154246101
58154246402 Frigidaire Dishwasher P-1 BALL
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60WCI 154247501
61WCI 154250201
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
655304506525 Frigidaire Dishwasher Filter Assembly
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
70WCI 154291501
