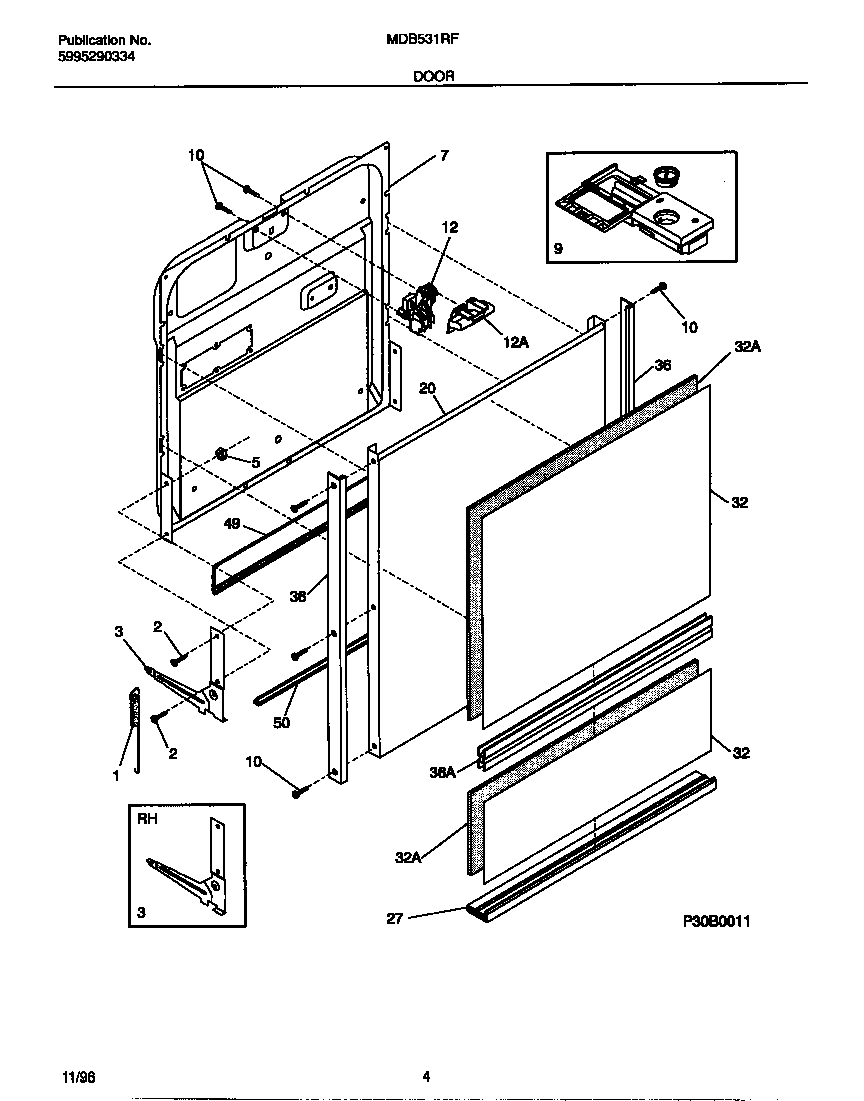

MDB531RFR1 03 – DOOR

MDB531RFR1 03 – DOOR

Written by

in

MDB531RFR1 03 – DOOR

Products

PositionProduct
*28844WCI 154200501
*28845WCI 154200601
*28846SCREW-8 X 5/8“ (2)
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
3PIN-ARM (NOT ILLUSTRATED)
55303013272 Frigidaire Oven Nut
7WCI 154210501
9154574401 Frigidaire Dishwasher Dispenser
10154419403 Frigidaire Dishwasher Screw
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154210601
27WCI 154257604
32WCI 154229106
32WCI 154229105
32WCI 154229104
32WCI 154229003
32WCI 154229002
32WCI 154229103
36WCI 154254204
36WCI 154254504
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
