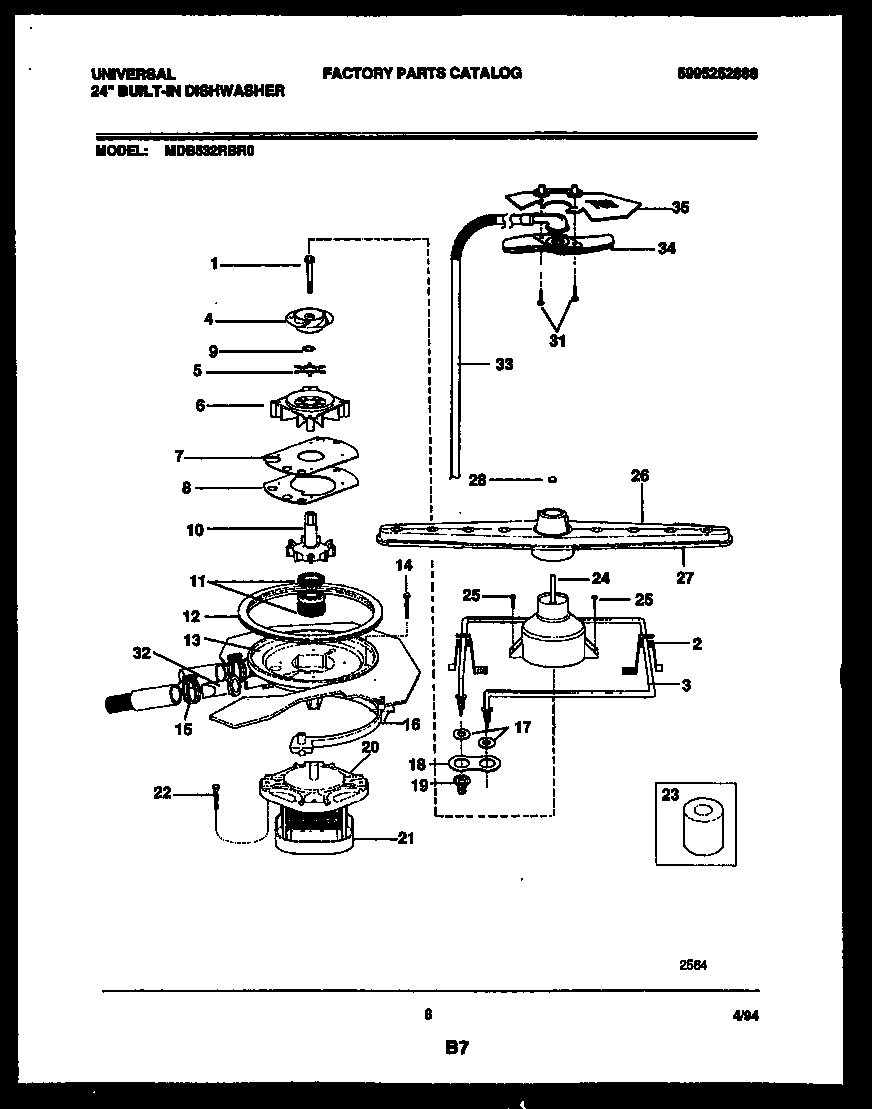

MDB532RB0 06 – MOTOR PUMP PARTS

Products

Position	Product
1	WCI 5300806353
2	HEATER BRACKET
2A	SCREW-BRACKET (2)
3	WCI 5300809584
4	5300809918 Frigidaire Dishwasher Upper Impeller
5	5300809920 Frigidaire Dishwasher Blade Assembly
6	WCI 5300809921
7	WCI 5300807884
8	5300807709 Frigidaire Dishwasher Gasket
9	5300806521 Frigidaire Dishwasher Filter O-Ring
10	WCI 5300809909
11	WCI 5300803903
12	5300809586 Frigidaire Dishwasher Gasket
13	PUMP HOUSING
14	WCI 5300807268
15	CLAMP
16	WCI 5300809590
17	WASHER
18	WCI 154064901
19	154106202 Frigidaire Dishwasher Heater Nut
20	WCI 5300809366
21	WCI 5300809984
22	WCI 5300809022
23	WCI 5300803923
24	FILTER ASSY
25	WCI 5300807359
26	LOWER SPRAY ARM ASSY
27	WCI 5300809938
28	SPRAY ARM NUT
31	SCREW-10 X 2 7/8``
32	WCI 5300809937
33	WCI 154119301
34	WCI 154119401
35	WCI 154126401
