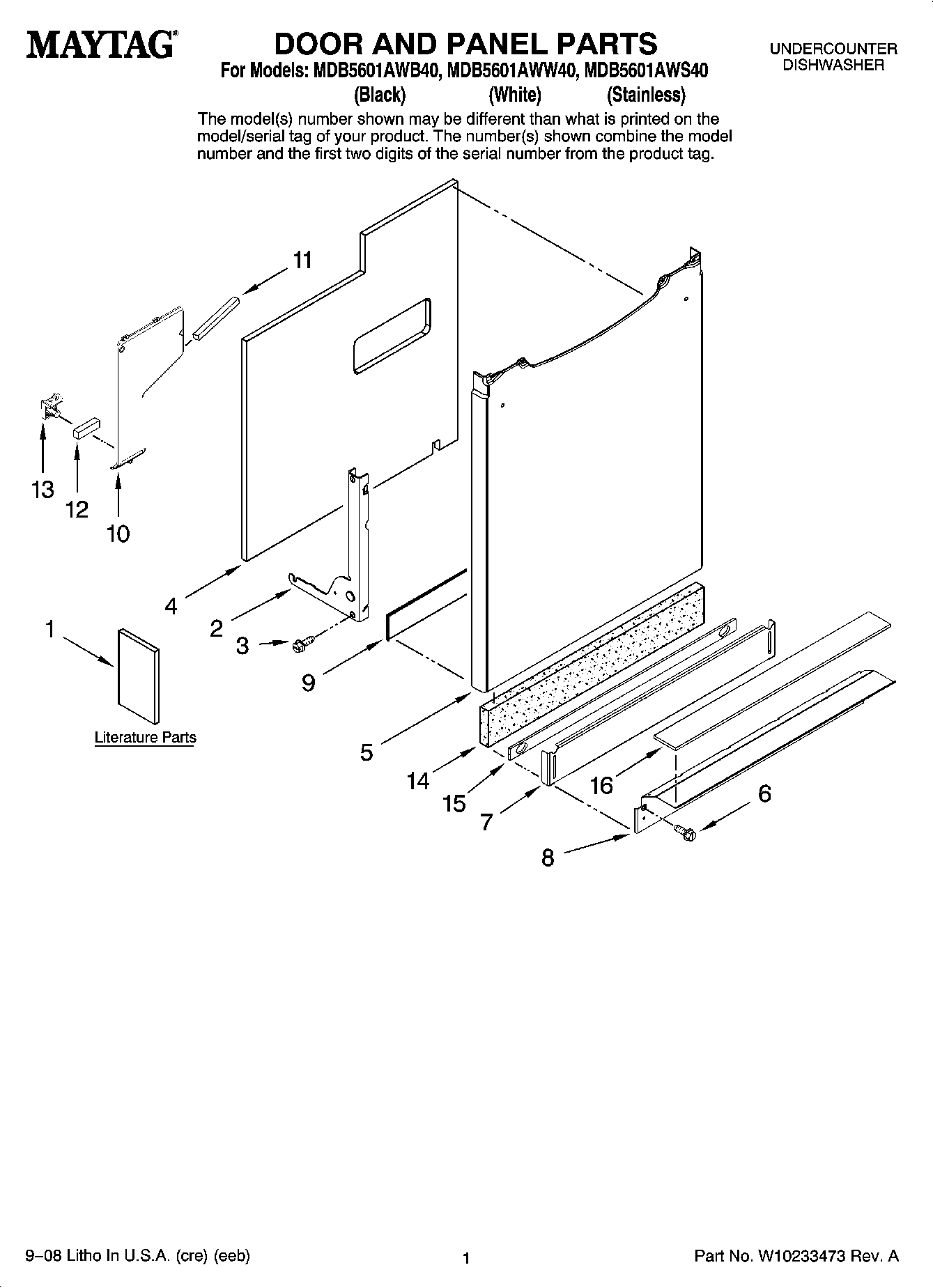

MDB5601AWW40 01 – DOOR AND PANEL PARTS

MDB5601AWW40 01 – DOOR AND PANEL PARTS

Written by

in

MDB5601AWW40 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10114400
1MANUAL, USE & CARE
1MAY W10158012
2MAY W10202227
2MAY W10202226
3MAY 99001075
4INSULATION, DOOR
5MAY 99003299
5MAY 99003300
5MAY 99003302
6SCREW, ACCESS PANEL
6WP6-912366 Whirlpool Dishwasher Screw
7PANEL, TOE (W/DAMPER-BLK)
7MAY 99002766
8MAY 99002591
8MAY 99002593
9MAY W10117748
10DOOR LINER, SECONDARY
11Foam Strip(Long)
12MAY 99003482
13MAY 99003541
14WP6-920587 Whirlpool Dishwasher Shield
15MAY 99002698
15Damper, Toe Panel (Black)
16Foam, Front Sprt
