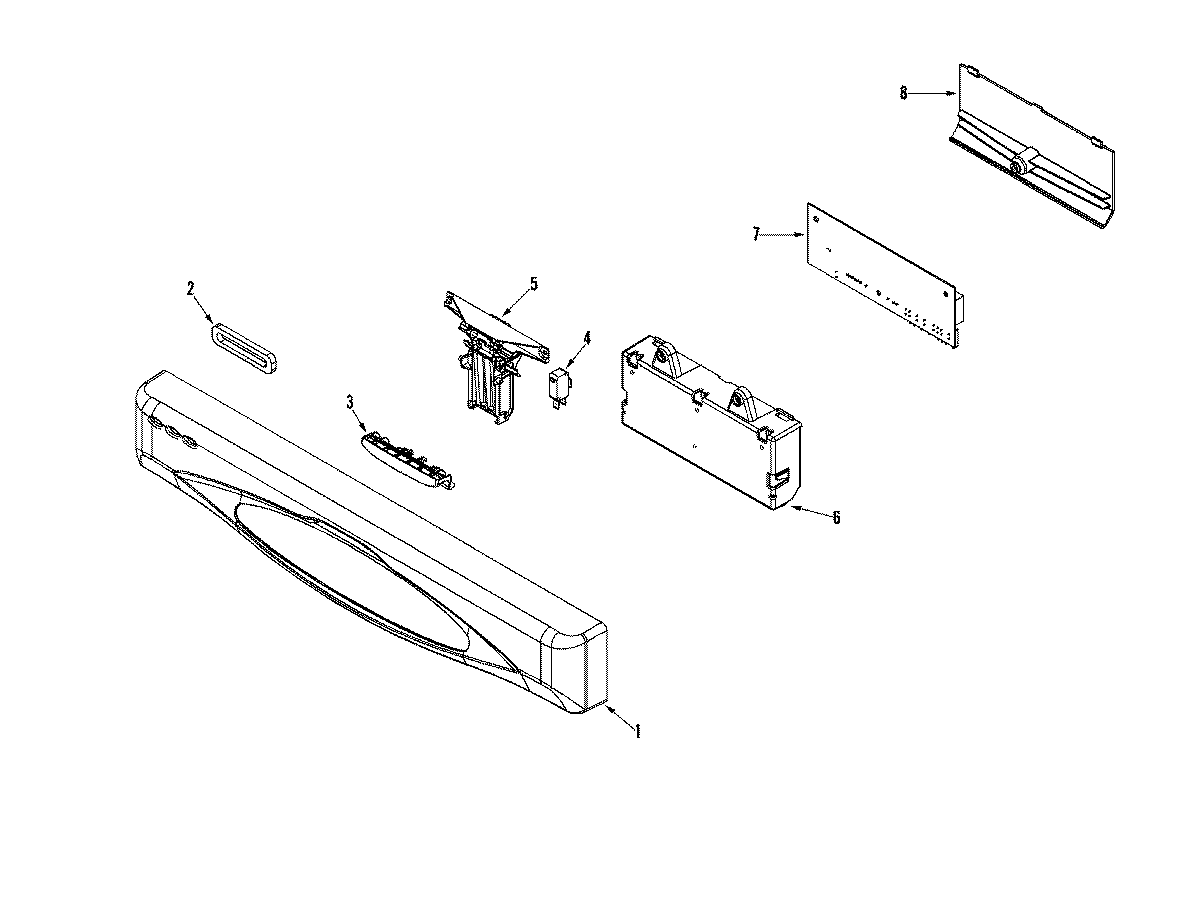

MDB5651AWS 01 – CONTROL PANEL

MDB5651AWS 01 – CONTROL PANEL

Written by

in

MDB5651AWS 01 – CONTROL PANEL

Products

PositionProduct
1Panel, Control (Black)
2WP99003222 Whirlpool Dishwasher Vent Seal
3WPW10130695 Whirlpool Dishwasher Door Latch Assembly
4MAY 99002751
5WPW10275768 Whirlpool Door Latch
6WP99002576 Whirlpool Dishwasher Cover
712002709 Whirlpool Dishwasher ERC Electronic Control Board Kit
7MAY W10111822
7MAY 99003622
8MAY 99002575
8SCREW, No.8X1/2 HEX WASHER HEAD
9HARNESS, WIRE
9MAY 99002986
