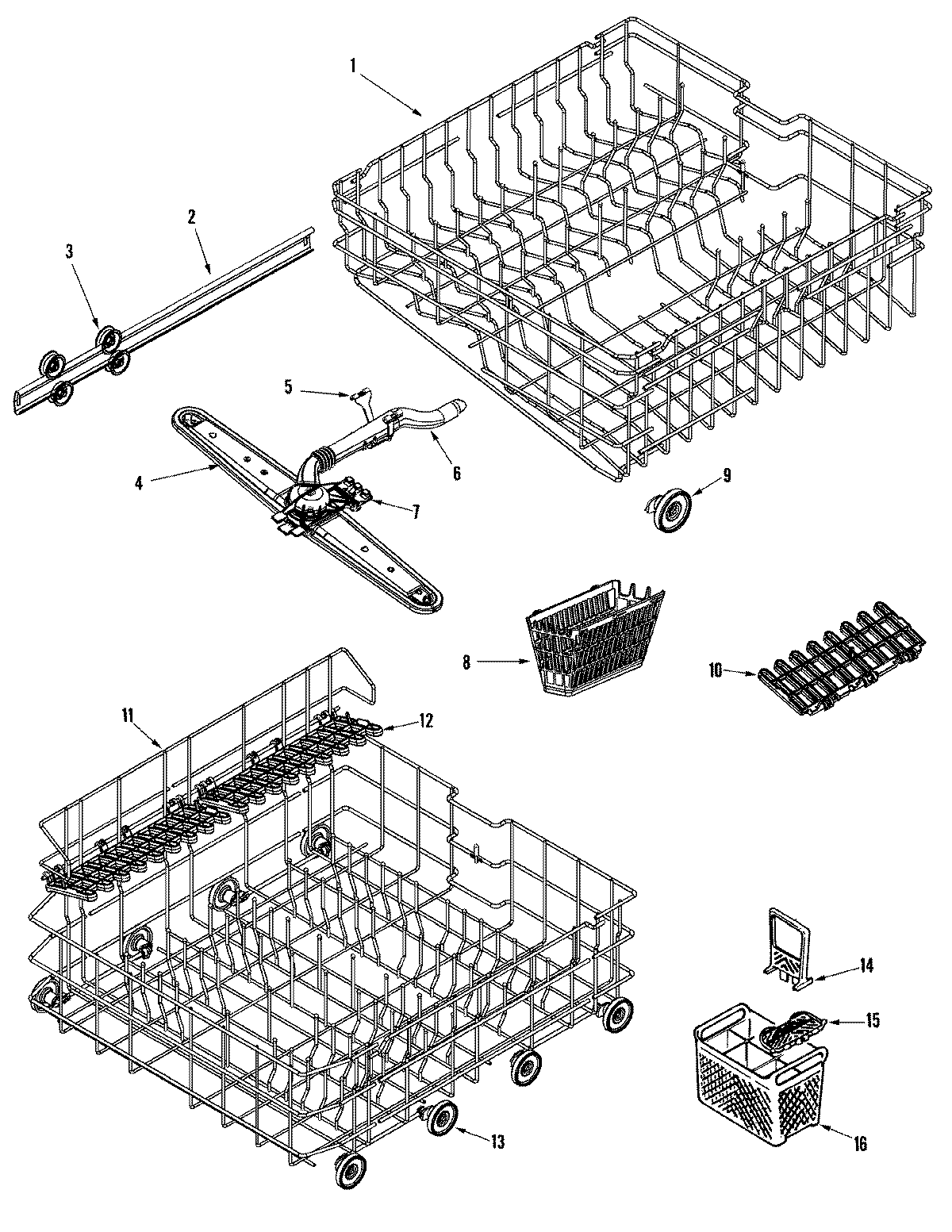

MDB5651AWS 05 – TRACK & RACK ASSEMBLY

MDB5651AWS 05 – TRACK & RACK ASSEMBLY

Written by

in

MDB5651AWS 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99003201
2MAY 99003476
2TRACK, RACK
3WP99002947 Whirlpool Tub Wheel
3WPY912798 Whirlpool Dishwasher Tub Washer Wheel
4WP99003070 Whirlpool Dishwasher Wash Arm
4SCREW, TRUSS HEAD (10-18X.75)
599002945 Whirlpool Dishwasher Upper Wash Manifold Clip
6WASH MANIFOLD ASSY (UPR)
7CLIP, UPR WASH MANIFOLD (FRT)
8W11175758 Whirlpool Dishwasher Basket Ware
9WP99002781 Whirlpool Dishwasher Wheel
10MAY 99002671
11MAY 99003311
11MAY 99002905
12MAY 99002672
13WP99002780 Whirlpool Lower Wheel Assembly
14MAY 99002619
15MAY 99002618
16WP6-918873 Whirlpool Silverware Basket
