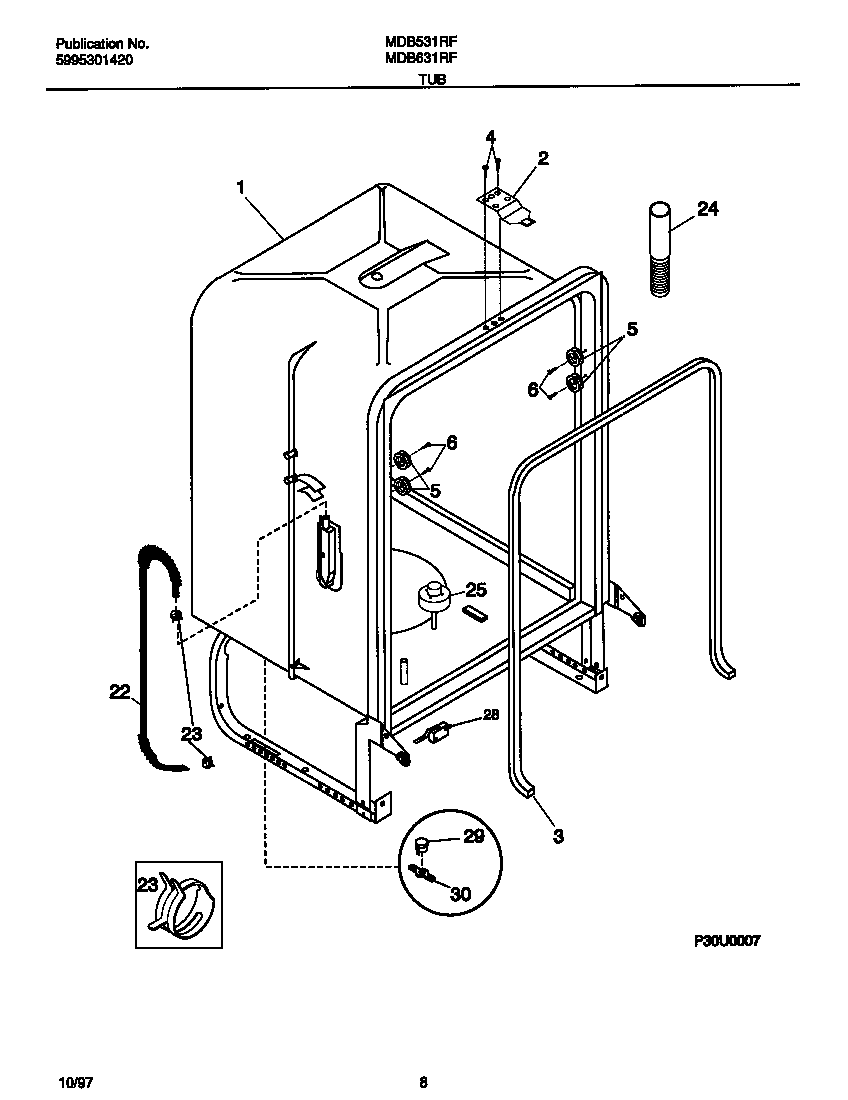

MDB631RFS3 05 – TUB

MDB631RFS3 05 – TUB

Written by

in

MDB631RFS3 05 – TUB

Products

PositionProduct
*11976WCI 5300807270
*11975154641601 Frigidaire Dishwasher Insulation
1WCI 154209301
2154662601 Frigidaire Door Strike Latch
3154827601 Frigidaire Dishwasher Tub Gasket
4808690701 Frigidaire Dishwasher Screw
55304507405 Frigidaire Dishwasher Gray Tub Dishrack Roller
65303943103 Frigidaire Dishwasher P-1 Screw Kit (8 Each Wash/Screw)
225304523457 Frigidaire Inlet Hose
23CLAMP, HOSE
24154225602 Frigidaire Dishwasher Drain Hose, 10' Long
255304506520 Frigidaire Dishwasher Float Assembly
28B154200701 Frigidaire Dishwasher Screw
28CFLOAT SWITCH ASSY
28AWCI 154225501
29154290204 Frigidaire Dishwasher Thermostat
30B154297701 Frigidaire Dishwasher Screw
30A154241101 Frigidaire Dishwasher Retainer
