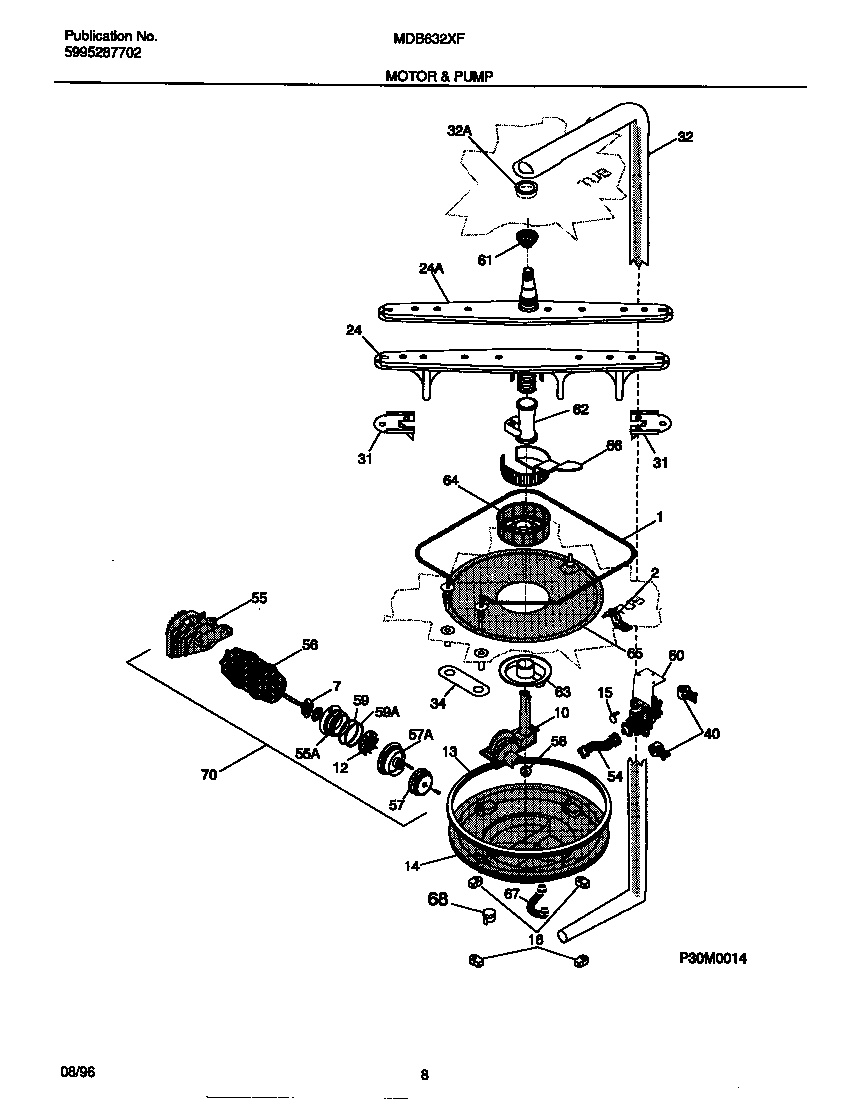

MDB632XFR0 05 – MOTOR & PUMP

Written by

Products

Position	Product
*35773	SCREW
*35771	154348401 Frigidaire Dishwasher Clamp
*35770	WCI 154247201
*35772	WCI 154247401
*35774	WCI 5303316032
*35769	CLAMP, HOSE
1C	154289801 Frigidaire Dishwasher Shield
1A	154665201 Frigidaire Dishwasher Heater
1B	154106202 Frigidaire Dishwasher Heater Nut
2	WCI 154211001
7	WCI 154245901
10	807145201 Frigidaire Dishwasher Cover-Volute
12B	SCREW, SS IMPELLER (NOT ILLUSTRATED)
12A	WCI 154245801
13	154246801 Frigidaire Dishwasher Primary Gasket
14	WCI 154245401
15	WCI 154246701
16	WCI 154246501
24A	5304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24	154313601 Frigidaire Dishwasher Control Arm P1
24B	WCI 154252001
31	WCI 154281001
32	WCI 154251601
32	WCI 154251701
34	WCI 154064901
40	154611101 Frigidaire Dishwasher Clamp
54	154234401 Frigidaire Dishwasher Hose P-1
55	WCI 154246201
55	WCI 154245601
56B	154754901 Frigidaire Dishwasher Screw
56A	WCI 154245701
57	WCI 154246001
57	WCI 154246101
58	154246402 Frigidaire Dishwasher P-1 BALL
59	154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59	154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60C	BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
60B	WCI 154200901
60A	WCI 154247501
61	WCI 154250201
62	5304518968 Frigidaire Lower Spray Arm Support
63	5304506533 Frigidaire Dishwasher Filter Base
65	5304506525 Frigidaire Dishwasher Filter Assembly
66	154252701 Frigidaire Dishwasher Filter Trap Assembly
67	WCI 154246601
68A	WCI 154227804
68B	154241101 Frigidaire Dishwasher Retainer
70	WCI 154291501
