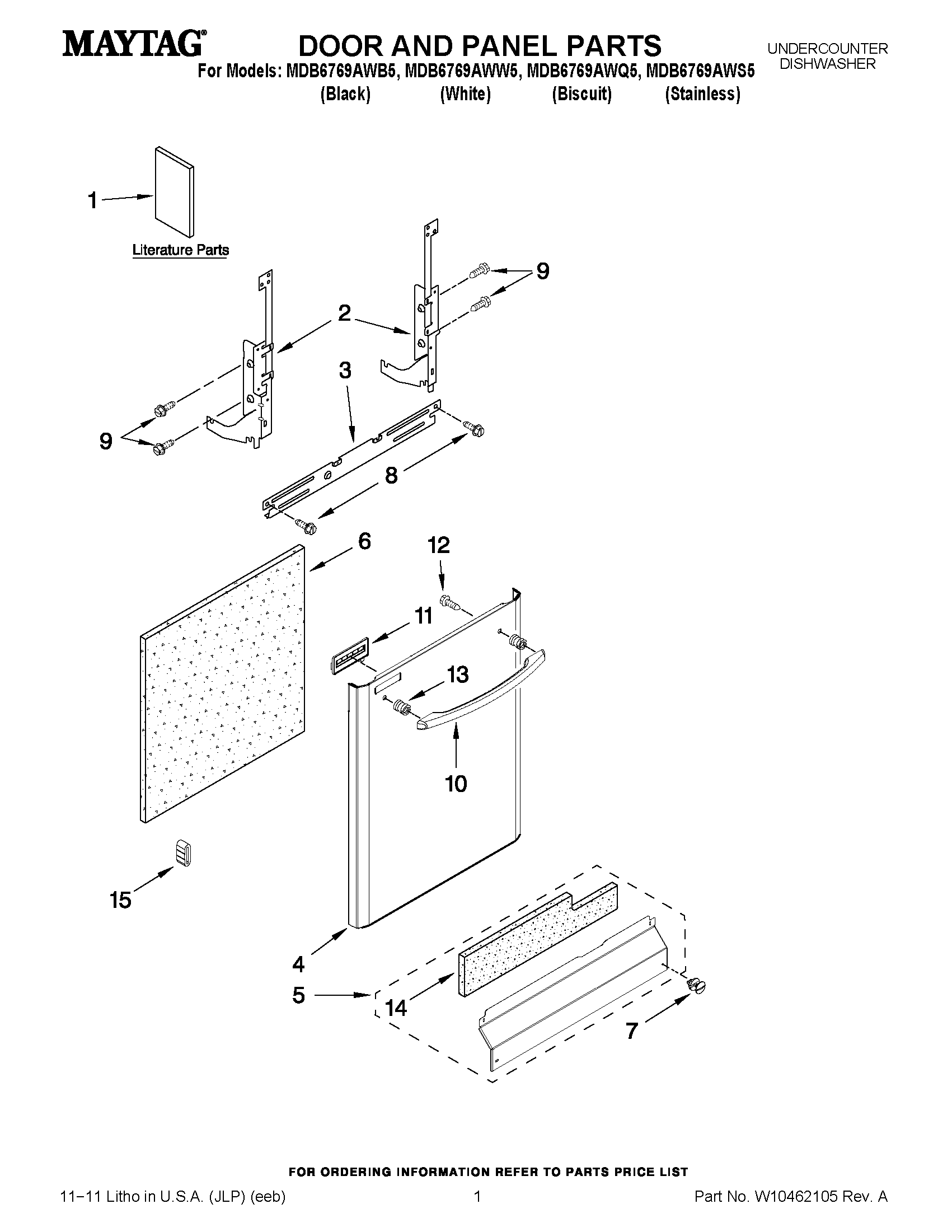

MDB6769AWS5 01 – DOOR AND PANEL PARTS

MDB6769AWS5 01 – DOOR AND PANEL PARTS

Written by

in

MDB6769AWS5 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10435039
1MAY W10398587
1TECH SHEET
1MAY W10240117
1MAY W10240116
2MAY W10143374
2MAY W10143373
3MAY 8268983
4PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (WHITE)
4PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (BLACK)
4PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (BISQUE)
4PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (STAINLESS)
5MAY W10369024
6MAY W10073520
7SCREW (BLACK)
8Screw
9MAY 489470
10HANDLE (BISQUE)
10MAY W10199635
10MAY W10199637
10MAY W10199639
11VENT ASSEMBLY (BLACK)
12MAY W10123421
13STUD, MOUNTING
14INSULATION, ACCESS PANEL
15SLEEVE, FRICTION
