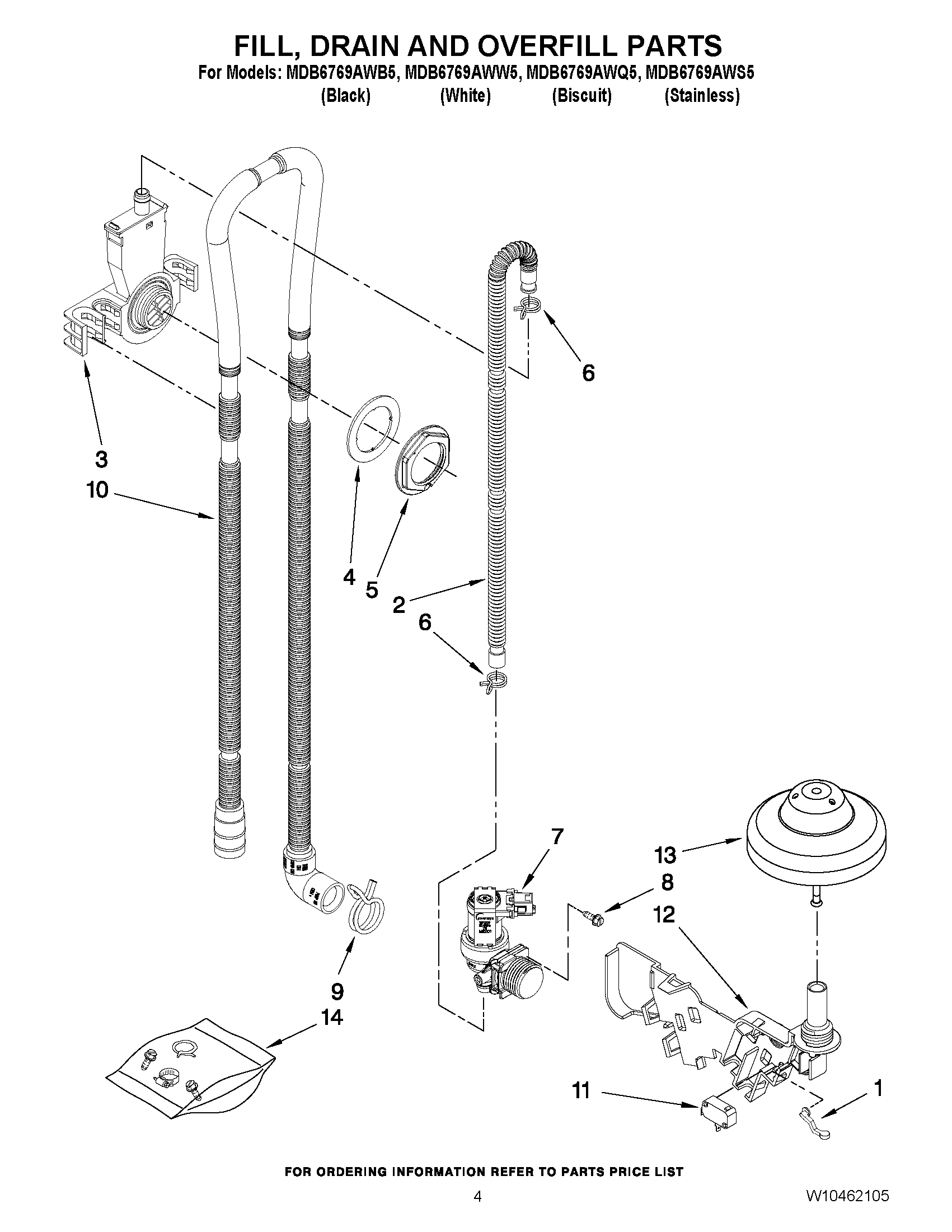

MDB6769AWS5 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

Products

Position	Product
1	LEVER, OVERFLOW SWITCH
2	MAY 8531412
3	WATER INLET (ALSO ORDER ITEMS 4)
4	MAY 8531323
5	MAY 8531327
7	MAY W10195047
8	Screw
9	MAY 371505
10	MAY W10137608
11	SWITCH, OVERFILL
12	STANDPIPE, OVERFILL (ALSO INCLUDES ITEM 13)
13	MAY 8268895
14	MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAMPS, SCREWS & 2UNDER COUNTER BRACKETS)
