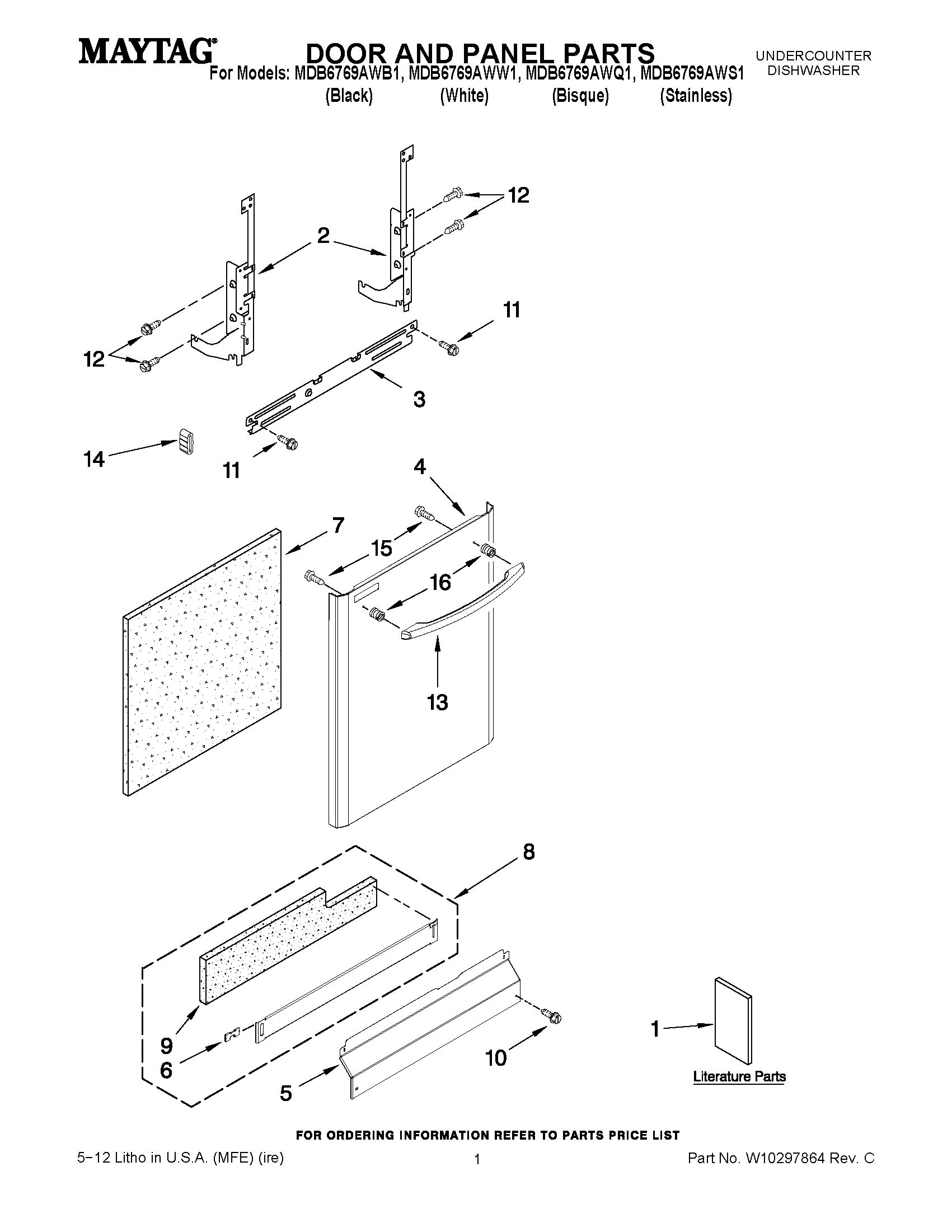

MDB6769AWW1 01 – DOOR AND PANEL PARTS

MDB6769AWW1 01 – DOOR AND PANEL PARTS

Written by

in

MDB6769AWW1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10240116
1MAY W10240159
1MAY W10240115
1TECH SHEET
1MAY W10240117
2MAY W10143374
2MAY W10143373
3MAY 8268983
4PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (BISQUE)
4PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (WHITE)
4PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (BLACK)
4PANEL FRONT (INCLUDES ITEMS 6, 13, 15) (STAINLESS)
5MAY 8573257
5MAY 8573256
5ACCESS PANEL (BLACK)
6CLIP, GROUNDING
7MAY W10073520
8TOE PANEL (INCLUDES ITEM 9) (BLACK)
9INSULATION, ACCESS PANEL
10SCREW (BLACK)
11Screw
12MAY 489470
13MAY W10199635
13MAY W10199637
13MAY W10199639
13HANDLE (BISQUE)
14SLEEVE, FRICTION
15MAY W10123421
16STUD, MOUNTING
