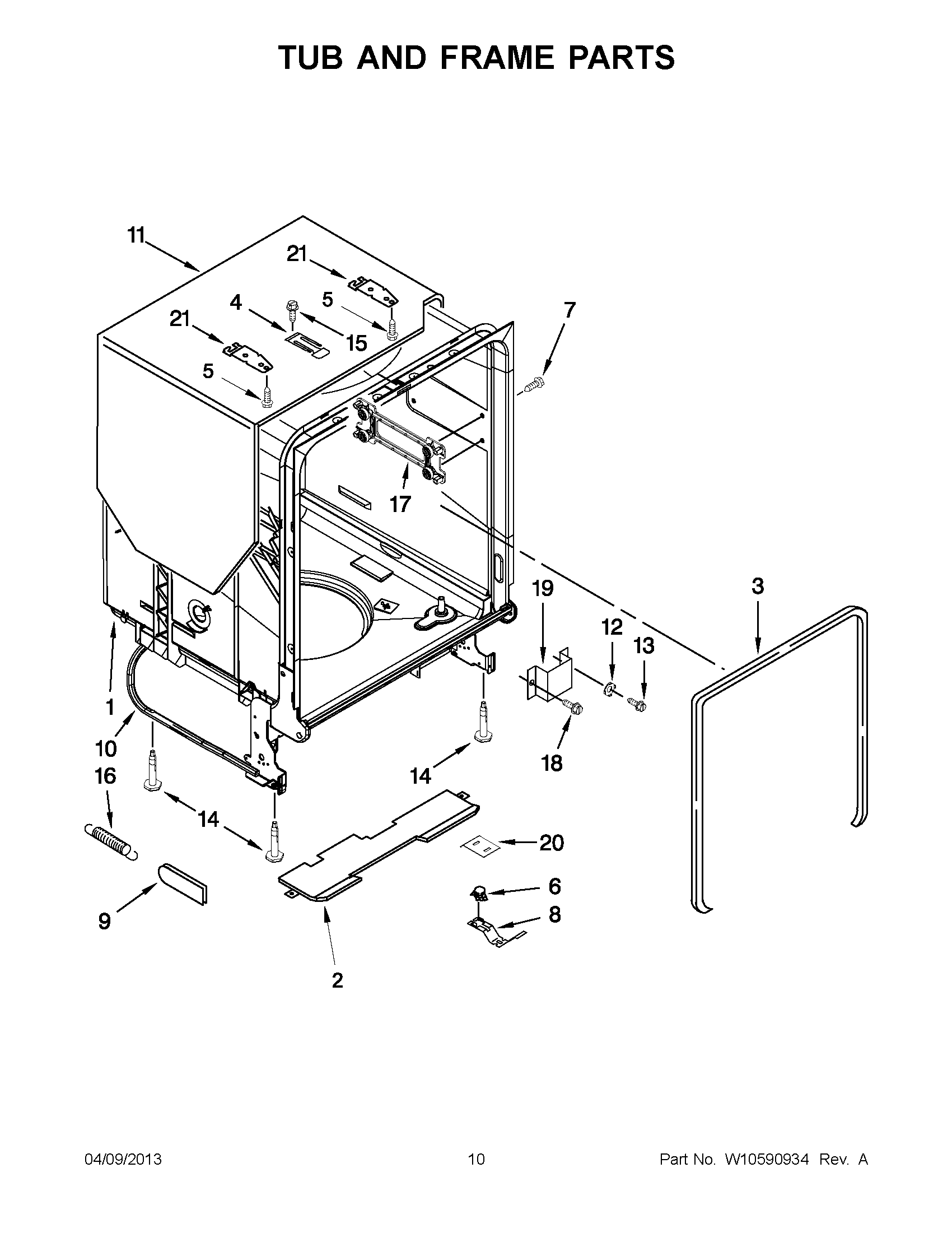

MDB6769PAB2 05 – TUB AND FRAME PARTS

MDB6769PAB2 05 – TUB AND FRAME PARTS

Written by

in

MDB6769PAB2 05 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10266935
2	INSULATION BOTTOM
3	MAY W10524469
4	STRIKE, PLATE
5	MAY W10277003
6	MAY W10339474
7	MAY W10341745
8	MAY 3378595
9	MAY 8268990
10	SUPPORT ASSEMBLY, BOTTOM
11	MAY 8573239
12	WASHER, PRONGED CUP
13	MAY 3400014
14	MAY W10304228
15	MAY W10165274
16	MAY W10337934
17	MAY W10505751
18	MAY 3400892
19	MAY 8268991
20	SHIELD, THERMOSTAT
21	MAY 8269145
