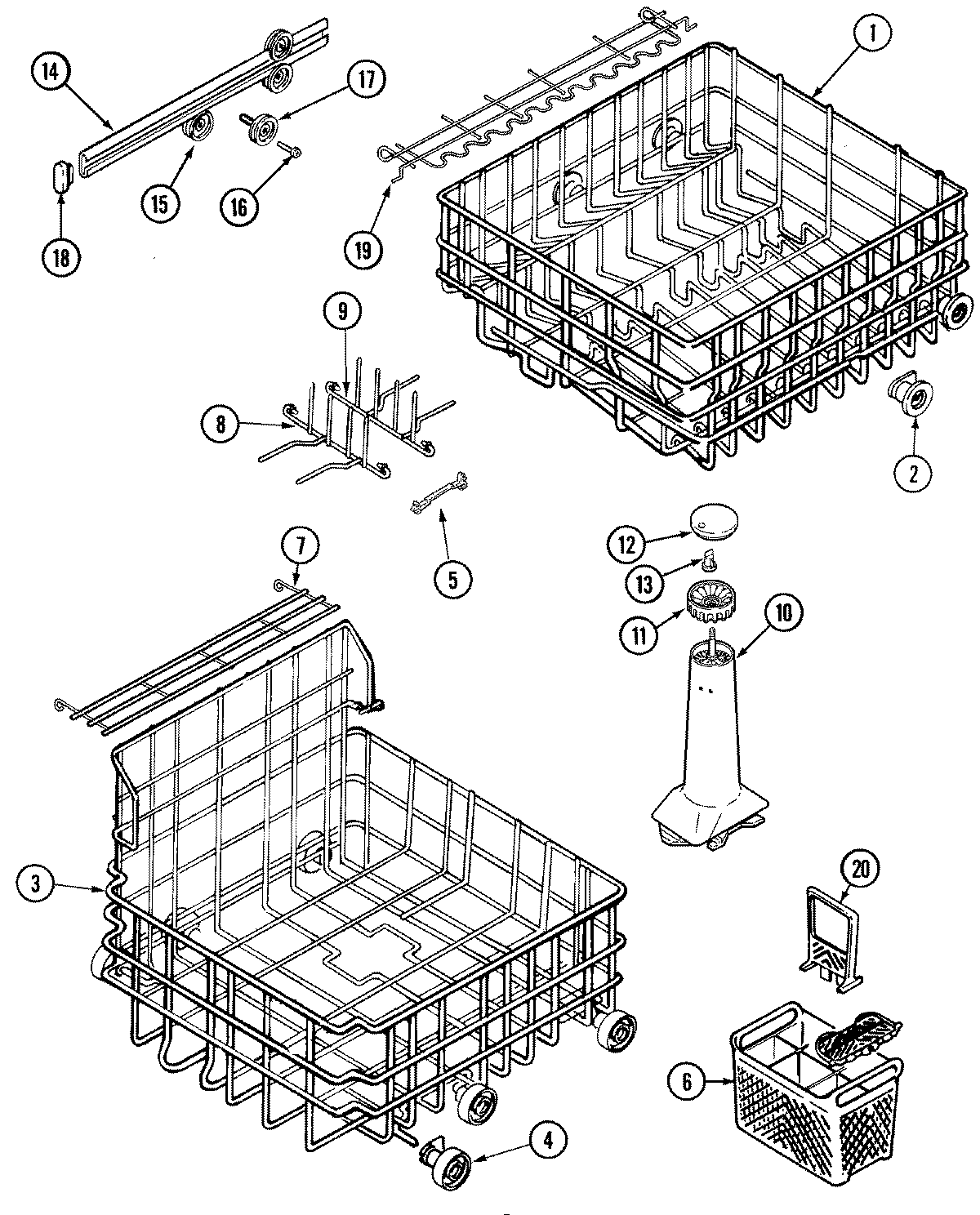

MDB6800AWB 05 – TRACK & RACK ASSEMBLY

MDB6800AWB 05 – TRACK & RACK ASSEMBLY

Written by

in

MDB6800AWB 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99001482
2WP903093 Whirlpool Dishwasher Rack Wheel
3W10139223 Whirlpool Dishwasher Lower Dish Rack
4WP99002780 Whirlpool Lower Wheel Assembly
5WPY912709 Whirlpool Dishwasher Adjuster Clip
6WP6-918873 Whirlpool Silverware Basket
7MAY 903436
812002218 Whirlpool Dishwasher Tine Bowl with Sleeves
9WPW10116789 Whirlpool Dishwasher Sleeve
9WP99002138 Whirlpool Dishwasher Tine Row
10MAY 99001533
11MAY 99001442
12WP99001443 Whirlpool Dishwasher Nut
13MAY 99001426
14WPY912545 Whirlpool Dishwasher Track
15WP99002342 Whirlpool Dishwasher Tub Wheel
16WP99002947 Whirlpool Tub Wheel
17WPY912798 Whirlpool Dishwasher Tub Washer Wheel
18MAY 912546
19MAY 99001429
20MAY Y912708
21MAY 99002016
21MAY 99002017
