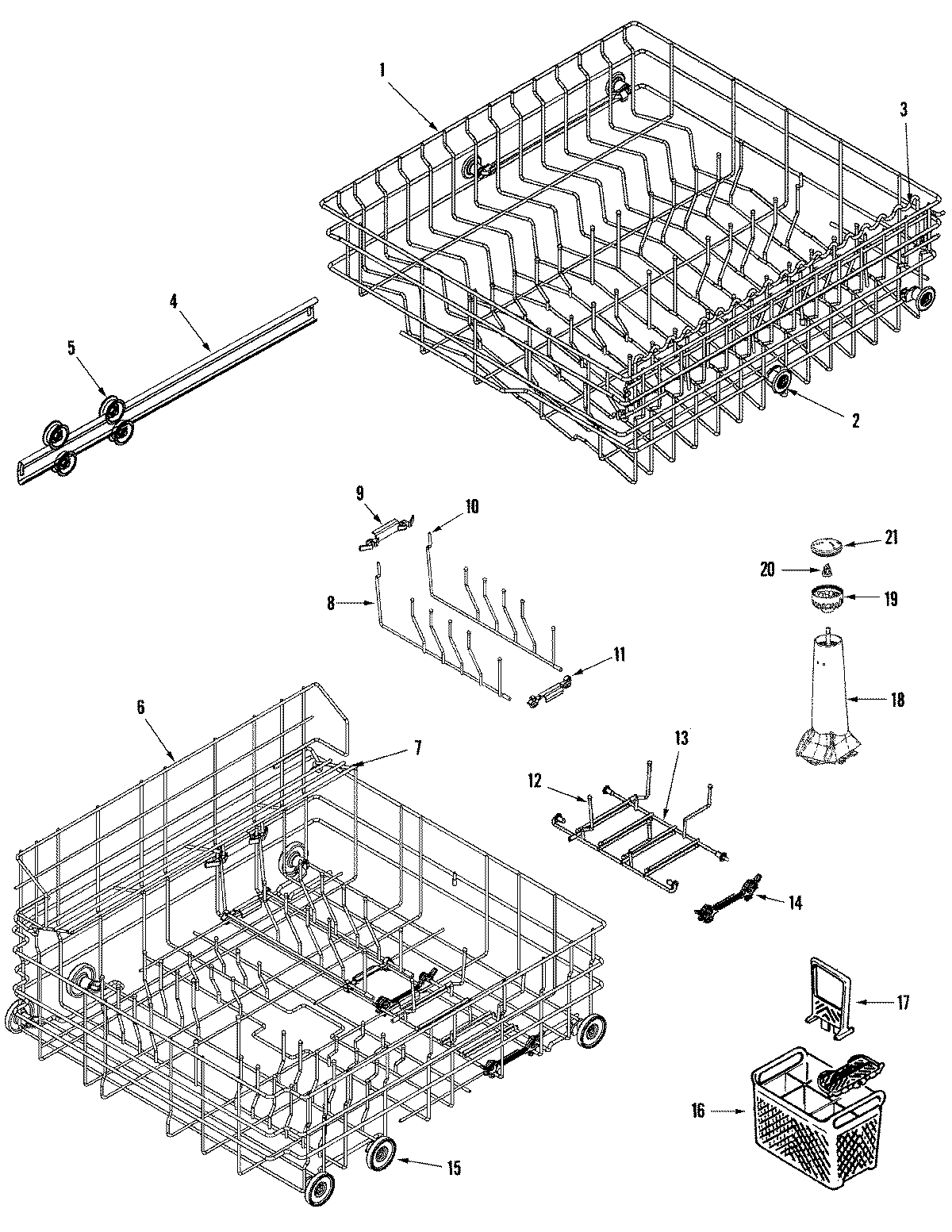

MDB7000AWA 05 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99001482
2	WP903093 Whirlpool Dishwasher Rack Wheel
3	MAY 99001429
4	MAY 912546
4	WPY912545 Whirlpool Dishwasher Track
5	WP99002947 Whirlpool Tub Wheel
5	WP99002342 Whirlpool Dishwasher Tub Wheel
5	WPY912798 Whirlpool Dishwasher Tub Washer Wheel
6	W10139223 Whirlpool Dishwasher Lower Dish Rack
7	MAY 903436
8	MAY 99001434
9	MAY 99001746
10	MAY 99001435
10	WPW10116789 Whirlpool Dishwasher Sleeve
11	WP99001436 Whirlpool Dishwasher Fold Clip
12	12002218 Whirlpool Dishwasher Tine Bowl with Sleeves
13	WP99002138 Whirlpool Dishwasher Tine Row
14	WPY912709 Whirlpool Dishwasher Adjuster Clip
15	WP99002780 Whirlpool Lower Wheel Assembly
16	WP6-918873 Whirlpool Silverware Basket
17	MAY Y912708
18	MAY 99001533
19	MAY 99001442
20	MAY 99001426
21	WP99001443 Whirlpool Dishwasher Nut
22	MAY 99002016
22	MAY 99002017
