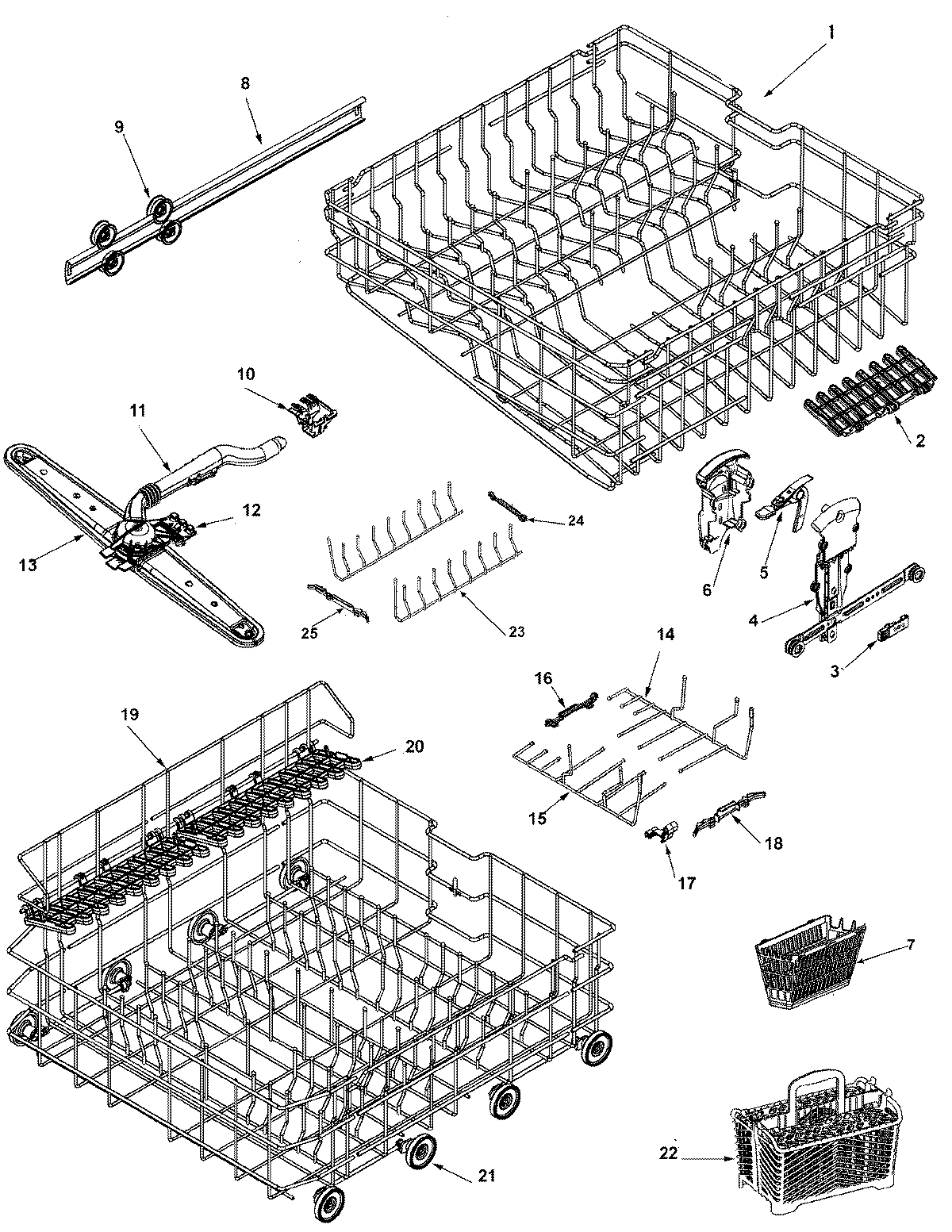

MDB7601AWQ 05 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99003462
1	MAY 99003459
1	MAY 99002905
1	MAY 99003460
2	MAY 99002671
3	MAY 99003020
4	MAY 99003008
4	MAY 99003009
4	MAY 99003010
5	99003178 Whirlpool Dishwasher Adjuster Lever (Blue)
6	MAY 99003011
7	W11175758 Whirlpool Dishwasher Basket Ware
8	TRACK, RACK
8	MAY 99003476
9	WP99002947 Whirlpool Tub Wheel
9	WPY912798 Whirlpool Dishwasher Tub Washer Wheel
10	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
11	WP99003070 Whirlpool Dishwasher Wash Arm
11	SCREW, TRUSS HEAD (10-18X.75)
12	CLIP, UPR WASH MANIFOLD (FRT)
13	WASH MANIFOLD ASSY (UPR)
15	12002750 Whirlpool Dishwasher Convertible Tine Kit
16	WP99002687 Whirlpool Tine Pivot Clip
16	MAY 99003003
17	MAY 99002689
18	WP99003527 Whirlpool Dishwasher Adjustable Tine Clip
19	MAY 99003461
20	MAY 99002672
21	WP99002780 Whirlpool Lower Wheel Assembly
22	MAY 99002697
22	MAY 99002683
22	WP6-918873 Whirlpool Silverware Basket
23	MAY 99003485
24	WP99002709 Whirlpool Tine Pivot Clip
25	WP99003484 Whirlpool Dishwasher Folding Tine Clip
