MDB7601AWS 02 – DOOR

MDB7601AWS 02 – DOOR

Written by

in

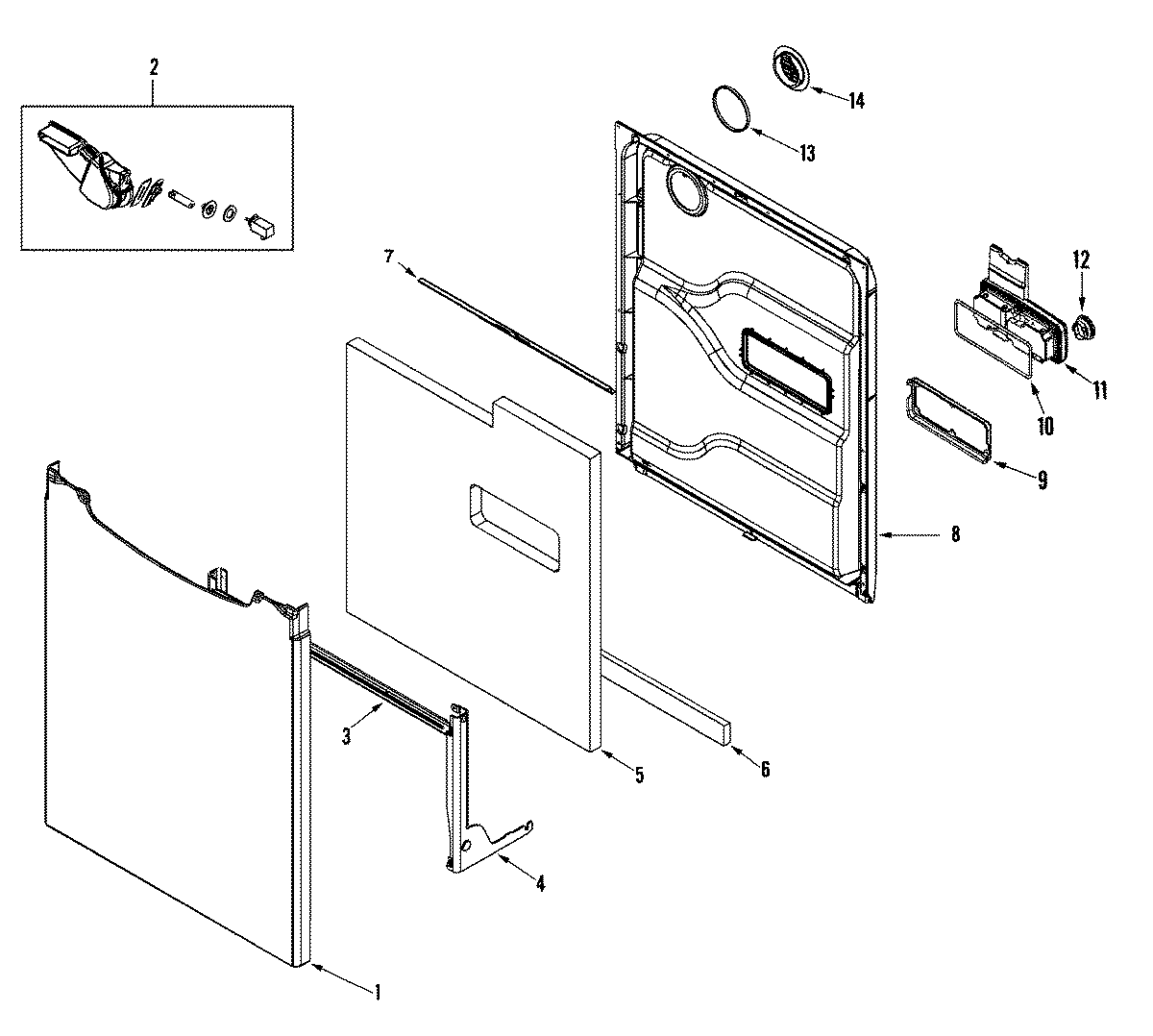

MDB7601AWS 02 – DOOR

Products

PositionProduct
1MAY 99003534
2VENT HOUSING ASSEMBLY
3MAY 99002604
4WPW10118637 Whirlpool Dishwasher Bracket
4MAY 99001075
4MAY 99002929
5INSULATION, DOOR
6WPW10117748 Whirlpool Dishwasher Insulation Pad
7MAY 99002586
8DOOR, INNER (W/DAMPER)
8DOOR LINER, SECONDARY
8MAY 99003541
8MAY 99003482
8Foam Strip(Long)
8WPY912620 Whirlpool Dishwasher Screw
9SCREW, No.8X1/2 HEX WASHER HEAD
96-918900 Whirlpool Dishwasher Bracket
10MAY 99002270
11Dispenser, Rinse Aid
12WP99002614 Whirlpool Dishwasher Rinse Knob
13MAY 99002186
1499002590 Whirlpool Dishwasher Door Vent Bezel
