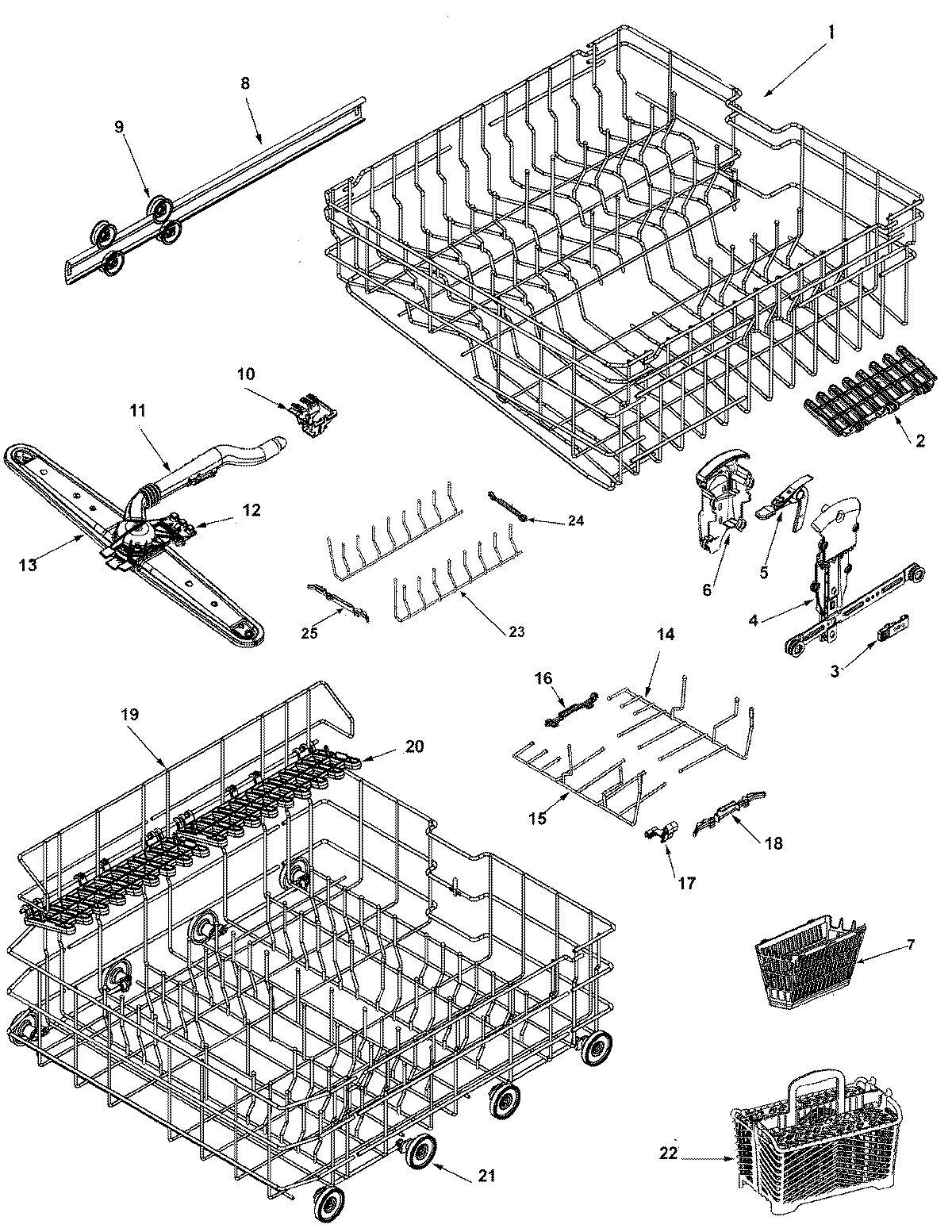

MDB7601AWS 05 – TRACK & RACK ASSEMBLY

MDB7601AWS 05 – TRACK & RACK ASSEMBLY

Written by

in

MDB7601AWS 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99003462
1MAY 99003459
1MAY 99002905
1MAY 99003460
2MAY 99002671
3MAY 99003020
4MAY 99003008
4MAY 99003009
4MAY 99003010
599003178 Whirlpool Dishwasher Adjuster Lever (Blue)
6MAY 99003011
7W11175758 Whirlpool Dishwasher Basket Ware
8TRACK, RACK
8MAY 99003476
9WP99002947 Whirlpool Tub Wheel
9WPY912798 Whirlpool Dishwasher Tub Washer Wheel
1099002945 Whirlpool Dishwasher Upper Wash Manifold Clip
11WP99003070 Whirlpool Dishwasher Wash Arm
11SCREW, TRUSS HEAD (10-18X.75)
12CLIP, UPR WASH MANIFOLD (FRT)
13WASH MANIFOLD ASSY (UPR)
1512002750 Whirlpool Dishwasher Convertible Tine Kit
16WP99002687 Whirlpool Tine Pivot Clip
16MAY 99003003
17MAY 99002689
18WP99003527 Whirlpool Dishwasher Adjustable Tine Clip
19MAY 99003461
20MAY 99002672
21WP99002780 Whirlpool Lower Wheel Assembly
22MAY 99002697
22MAY 99002683
22WP6-918873 Whirlpool Silverware Basket
23MAY 99003485
24WP99002709 Whirlpool Tine Pivot Clip
25WP99003484 Whirlpool Dishwasher Folding Tine Clip
