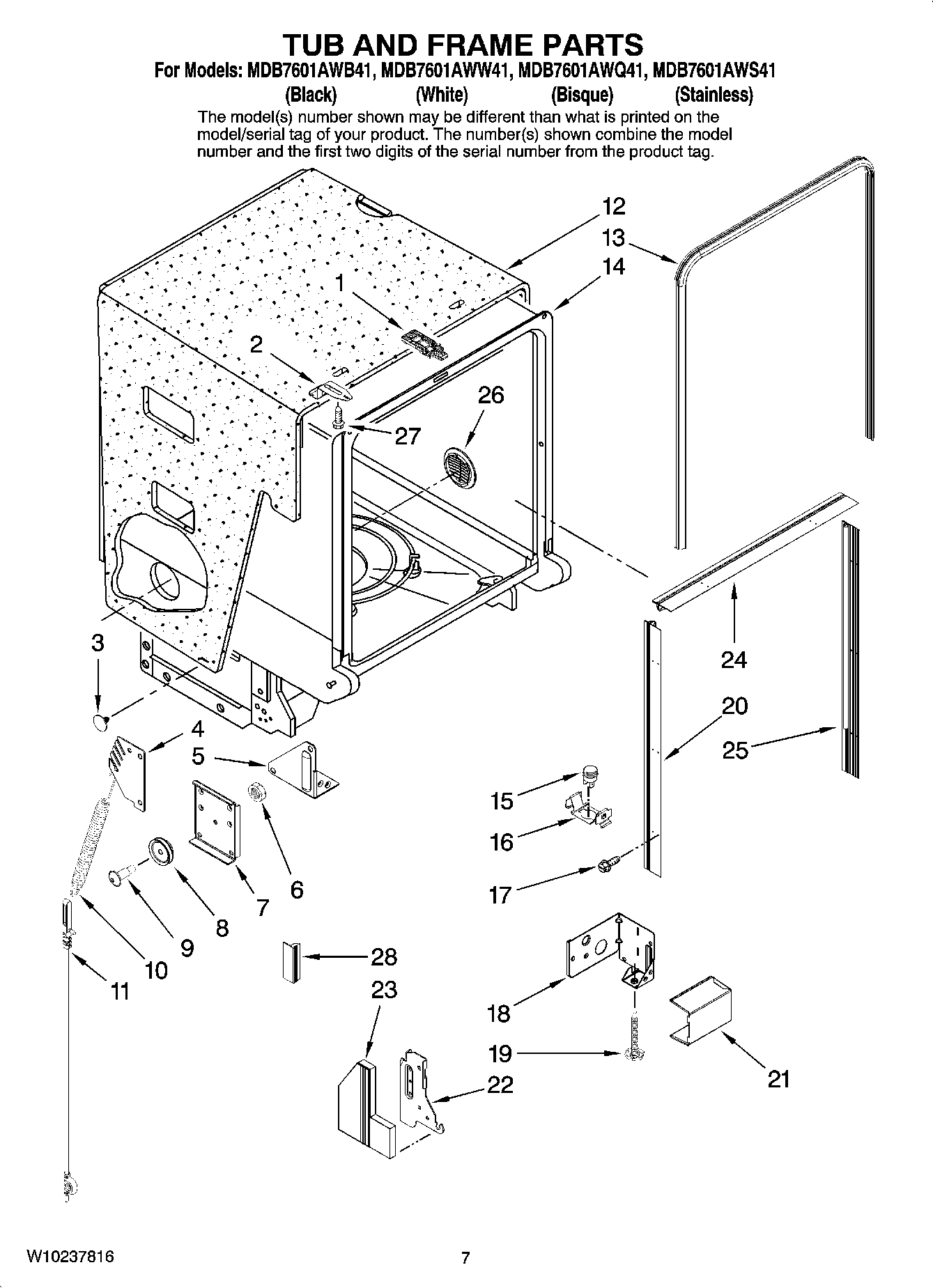

MDB7601AWW41 07 – TUB AND FRAME PARTS

MDB7601AWW41 07 – TUB AND FRAME PARTS

Written by

in

MDB7601AWW41 07 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10119337
2MAY 6-916881
3FASTENER, INSULATION
46-918346 Whirlpool Dishwasher Bracket
5BRACKET, SUPPORT (LT)
6MAY 99003688
7MAY W10173920
8WP99002608 Whirlpool Dishwasher Cable Roller
9MAY 99003687
10WP99002598 Whirlpool Door Spring
11WP99003446 Whirlpool Door Cable
12WPW10223013 Whirlpool Dishwasher Insulation Pad
13MAY 99002588
14MAY W10170236
15MAY 99002633
16MAY 99002634
17MAY 99002692
18BRACKET, JUNCTION BOX SUPPORT
19MAY W10143258
20Strip, Trim
21MAY 6-916711
22MAY W10137496
22MAY W10137495
23BACKER, HINGE SEAL (LT)
23BACKER, HINGE SEAL (RT)
24MAY W10164698
25Strip, Trim Right
26Grill,Air/Water Inlet
27MAY 6-912799
28GAP SEAL, TOE KICK (BLK)
