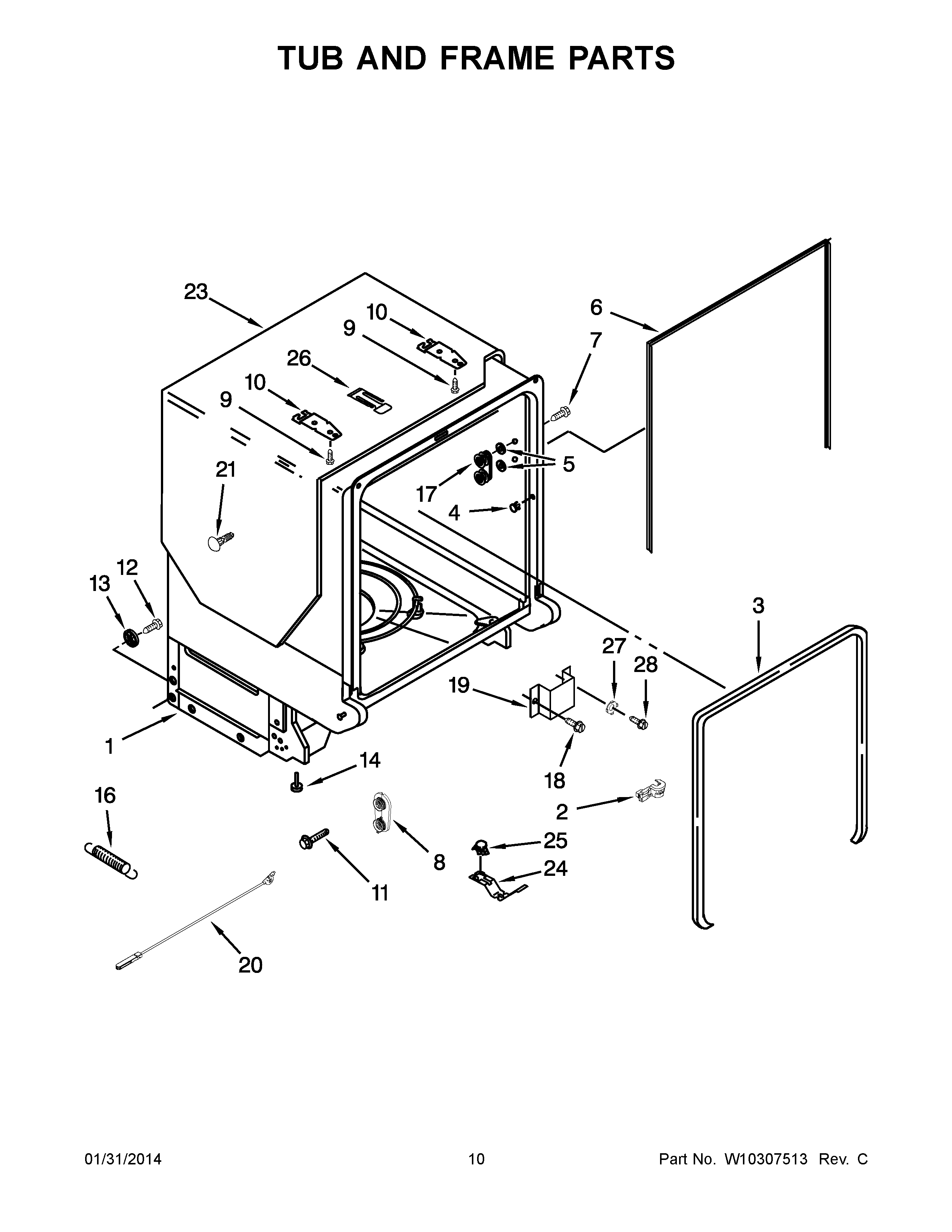

MDB7609AWB2 06 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSY (NOT SERVICED)
2	MAY 8573061
3	MAY W10112096
4	MAY W10082838
5	MAY 9743002
6	MAY 8269110
7	SCREW
8	DOOR BALANCE ASSEMBLY
9	MAY 3367670
10	MAY 8269145
11	SCREW
12	SCREW
13	WHEEL, LEG
14	MAY 8524584
16	MAY 8270020
17	WHEEL & MOUNT ASSEMBLY (ALSO ORDER ITEM 6)
18	MAY 3400892
19	MAY 8268991
20	CABLE, DOOR ASSEMBLY
21	RETAINER, PUSH
23	MAY 8573240
24	MAY 9742648
25	MAY 661566
26	MAY W10077370
27	WASHER, PRONGED CUP
28	MAY 3400014
