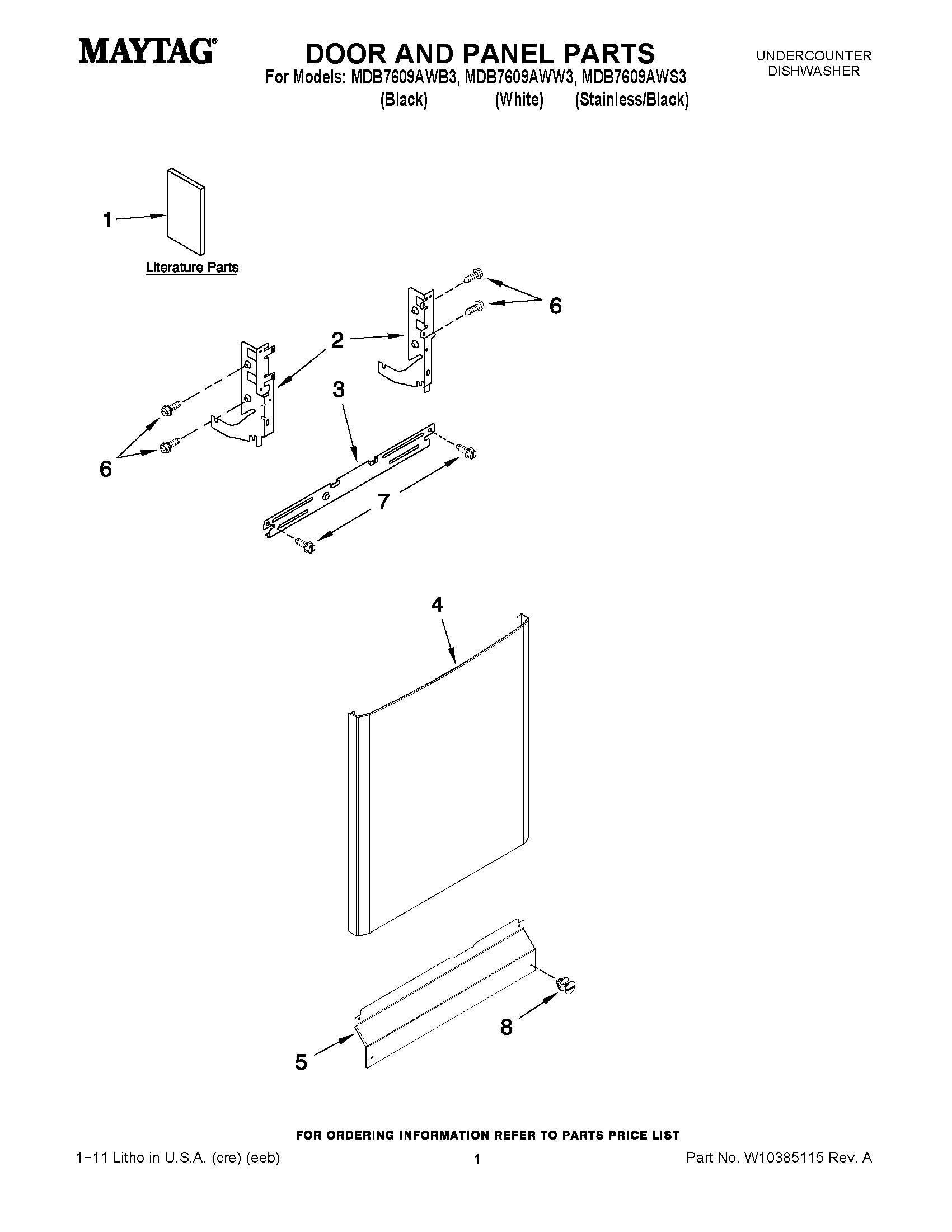

MDB7609AWB3 01 – DOOR AND PANEL PARTS

MDB7609AWB3 01 – DOOR AND PANEL PARTS

Written by

in

MDB7609AWB3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10255114
1MAY W10300260
1TECH SHEET
1MAY W10284980
2MAY 8534853
2MAY 8534854
3MAY 8268983
4MAY W10199761
4MAY W10199758
4MAY W10199759
5MAY W10237243
5MAY W10237241
5MAY W10237242
6SCREW
7Screw
8SCREW (WHITE)
8SCREW (BLACK)
8SCREW (BISCUIT)
