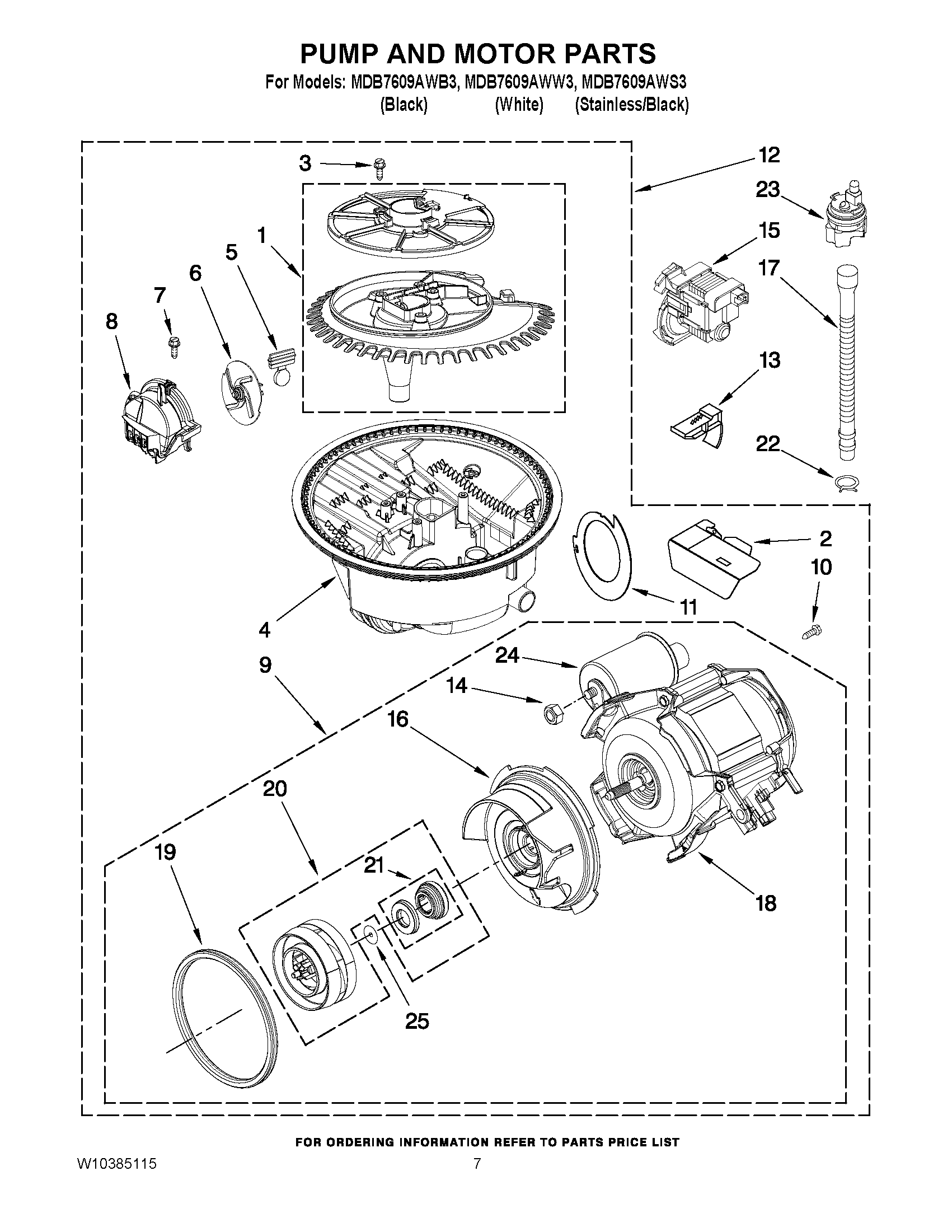

MDB7609AWS3 06 – PUMP AND MOTOR PARTS

Products

Position	Product
1	MAY 8534952
2	MAY 8283527
3	MAY W10348405
4	MAY 8572618
5	MAY 8268375
6	MAY W10083957
7	MAY 9741232
8	MAY 8531857
9	MAY W10231537
10	MAY 3400217
11	MAY W10084567
12	MAY W10298344
13	MAY W10300599
14	MAY 8533949
15	MAY 8558995
16	VOLUTE, BACK (ALSO ORDER ITEMS 21 & 25)
17	MAY 8269144
18	MAY W10200940
19	MAY 8268401
20	IMPELLER KIT (ALSO ORDER ITEM 25)
21	FACE SEAL ASSEMBLY (ALSO ORDER ITEM 25)
22	MAY 356138
23	MAY W10134017
24	MAY W10334457
25	MAY 8531018
