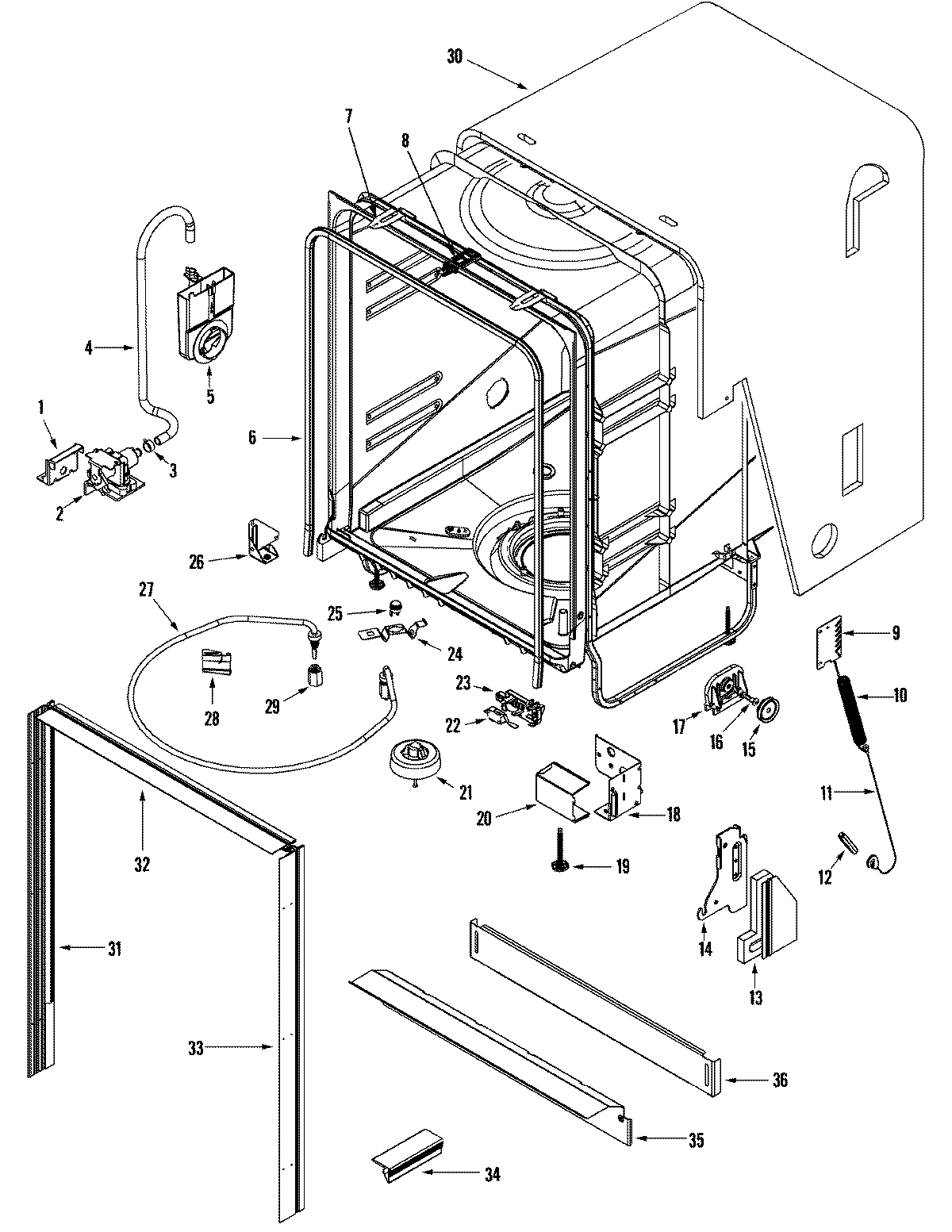

MDB7650AWQ 06 – TUB

Products

Position	Product
1	MAY 99002629
2	W11082871 Whirlpool Dishwasher Inlet Valve
2	MAY 99002553
3	WP596669 Whirlpool Hose Clamp
4	WP99002852 Whirlpool Dishwasher Injector Hose
5	MAY 99002645
5	MAY 99002646
6	MAY 99002588
7	MAY 99002648
8	MAY 99003357
8	WP99002644 Whirlpool Dishwasher Door Striker
9	6-918346 Whirlpool Dishwasher Bracket
10	WP99002598 Whirlpool Door Spring
11	WP99003446 Whirlpool Door Cable
13	BACKER, HINGE SEAL (RT)
13	BACKER, HINGE SEAL (LT)
14	MAY 99002928
14	MAY 99002927
15	WP99002608 Whirlpool Dishwasher Cable Roller
16	MAY 99002609
17	MAY 99002607
18	BRACKET, JUNCTION BOX SUPPORT
19	WPW10143258 Whirlpool Dishwasher Leg Leveler
20	MAY 99002638
20	MAY 912365
21	MAY 99002630
22	MAY 99002631
23	MAY 99002943
23	WP3390631 Whirlpool Screw
24	MAY 99002634
25	MAY 99002633
26	SCREW 10-32X.400 (T-20 HEAD)
26	BRACKET, SUPPORT (LT)
27	MAY 99002973
27	W10283681 Whirlpool Dishwasher Heater
28	WP6-917262 Whirlpool Dishwasher Heater Bracket
29	WP6-920168 Whirlpool Dishwasher Heater Nut
30	WPW10223013 Whirlpool Dishwasher Insulation Pad
30	FASTENER, INSULATION
31	MAY 99002690
32	MAY 99002723
33	MAY 99002691
33	MAY 99002692
34	MAY 99002702
35	MAY 99002861
36	MAY 99002767
36	MAY 99002114
