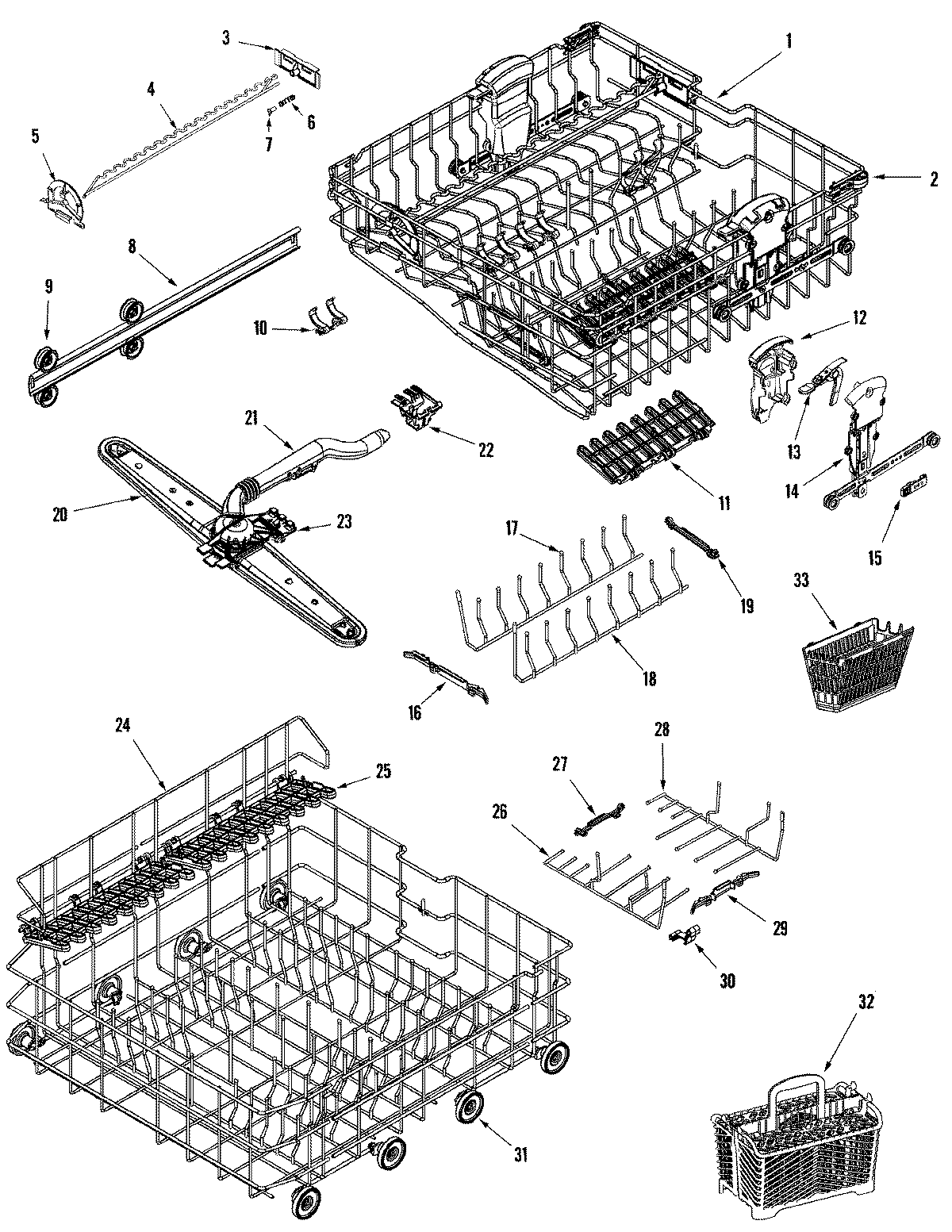

MDB7650AWS 05 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99003206
2	MAY 99002853
4	MAY 99002713
5	MAY 99002711
6	MAY 99002715
7	MAY 99002714
8	TRACK, RACK
8	WPW10261227 Whirlpool Dishwasher Stop Assembly
9	WP99002947 Whirlpool Tub Wheel
11	MAY 99002671
12	MAY 99003011
13	99003178 Whirlpool Dishwasher Adjuster Lever (Blue)
14	MAY 99003010
14	MAY 99003008
14	MAY 99003009
15	MAY 99003020
16	WP99002710 Whirlpool Dishwasher Fold-Down Latch
18	WP99003496 Whirlpool Convertible Row Tine
19	WP99002709 Whirlpool Tine Pivot Clip
20	WP99003070 Whirlpool Dishwasher Wash Arm
20	SCREW, TRUSS HEAD (10-18X.75)
21	WASH MANIFOLD ASSY (UPR)
22	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
23	CLIP, UPR WASH MANIFOLD (FRT)
24	MAY 99002963
24	MAY 99002905
25	MAY 99002672
26	12002750 Whirlpool Dishwasher Convertible Tine Kit
27	WP99002687 Whirlpool Tine Pivot Clip
29	WP99002688 Whirlpool Dishwasher Convertible Tine Latch
30	MAY 99002689
31	WP99002780 Whirlpool Lower Wheel Assembly
32	MAY 99002697
32	MAY 99002683
32	WP6-918873 Whirlpool Silverware Basket
33	W11175758 Whirlpool Dishwasher Basket Ware
