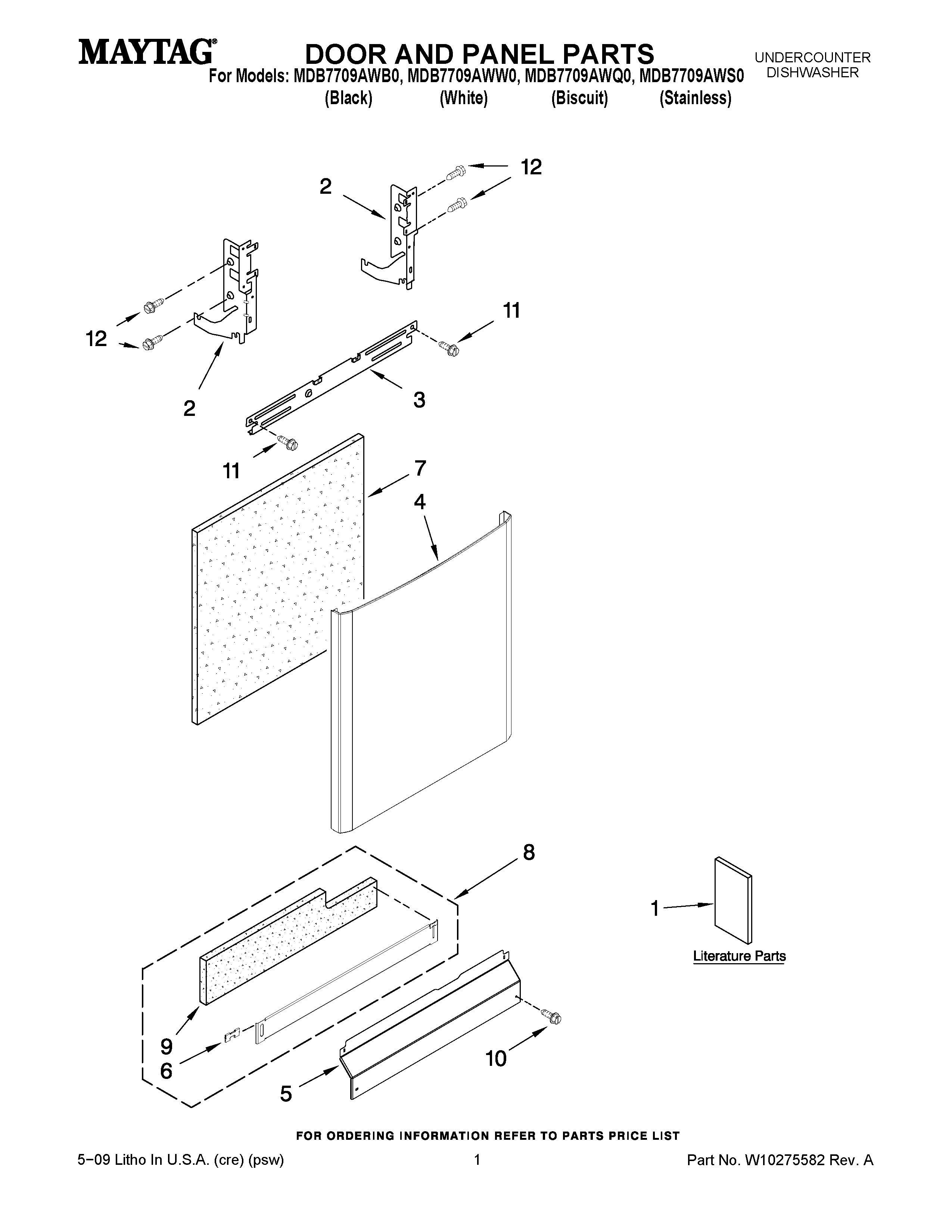

MDB7709AWS0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	TECH SHEET
1	MAY W10255026
1	MAY W10199707
1	MAY W10199659
1	MAY W10199658
2	MAY 8534853
2	MAY 8534854
3	MAY 8268983
4	MAY W10199760
4	MAY W10199761
4	MAY W10199759
4	MAY W10199758
5	MAY 8573257
5	ACCESS PANEL (BLACK)
5	MAY 8573256
6	CLIP, GROUNDING
7	MAY W10073520
8	TOE PANEL (INCLUDES ITEM 9) (BLACK)
8	TOE PANEL (INCLUDES ITEM 9) (BISCUIT)
8	TOE PANEL (INCLUDES ITEM 9) (WHITE)
9	INSULATION, ACCESS PANEL
10	WP3400836 Whirlpool Dishwasher Screw
10	SCREW (BLACK)
11	Screw
12	SCREW
