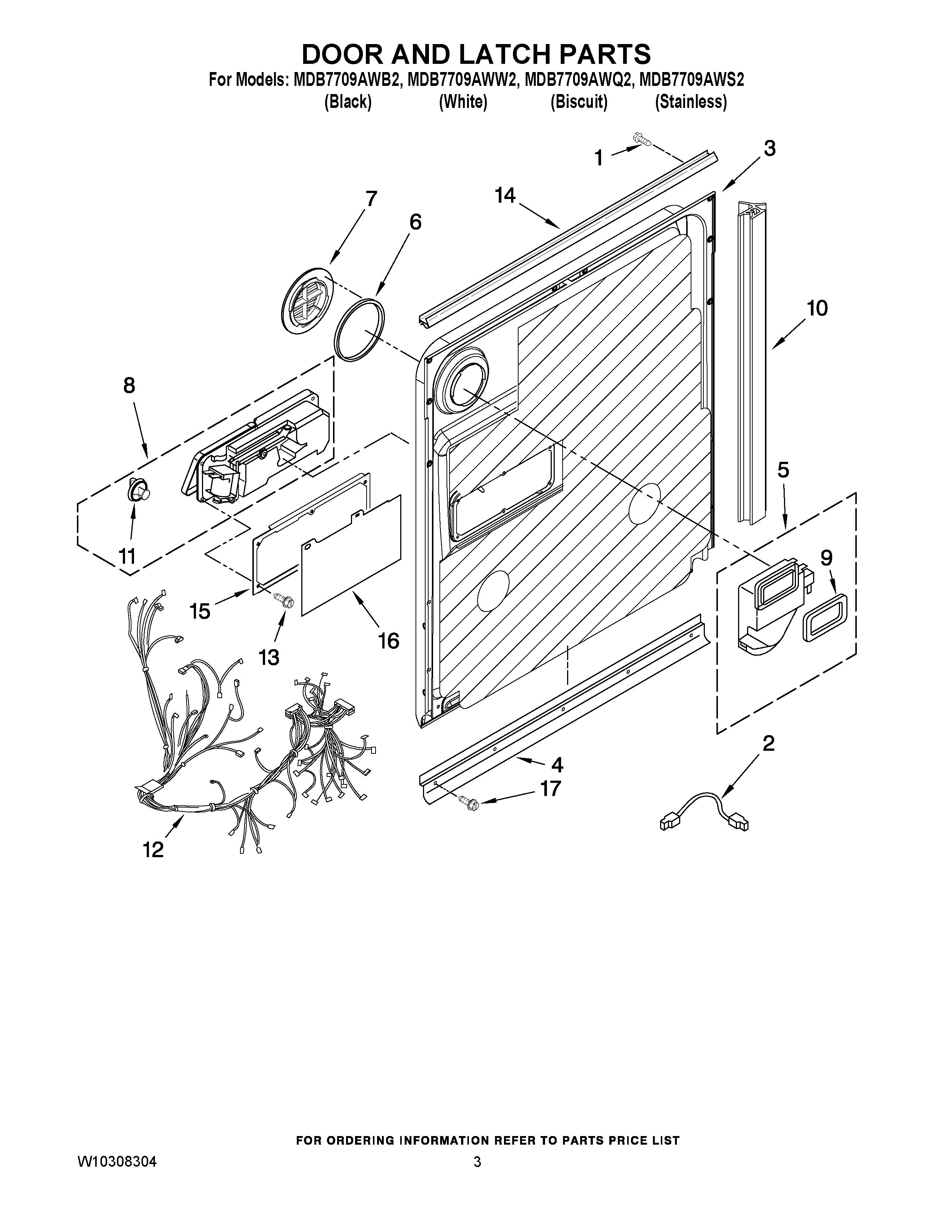

MDB7709AWS2 03 – DOOR AND LATCH PARTS

Products

Position	Product
1	SCREW
2	MAY 8545608
3	INNER DOOR MASTIC ASSEMBLY
4	MAY 8268937
5	VENT ASSEMBLY
6	MAY 8269259
7	MAY 8545536
8	MAY W10199696
9	SEAL, FRONT
10	SEAL, SIDE
11	MAY W10199683
12	MAY W10078201
13	MAY W10177098
14	MAY 8535660
15	BRACKET, DISPENSER
16	SHIELD, DISPENSER
17	MAY 8281217
