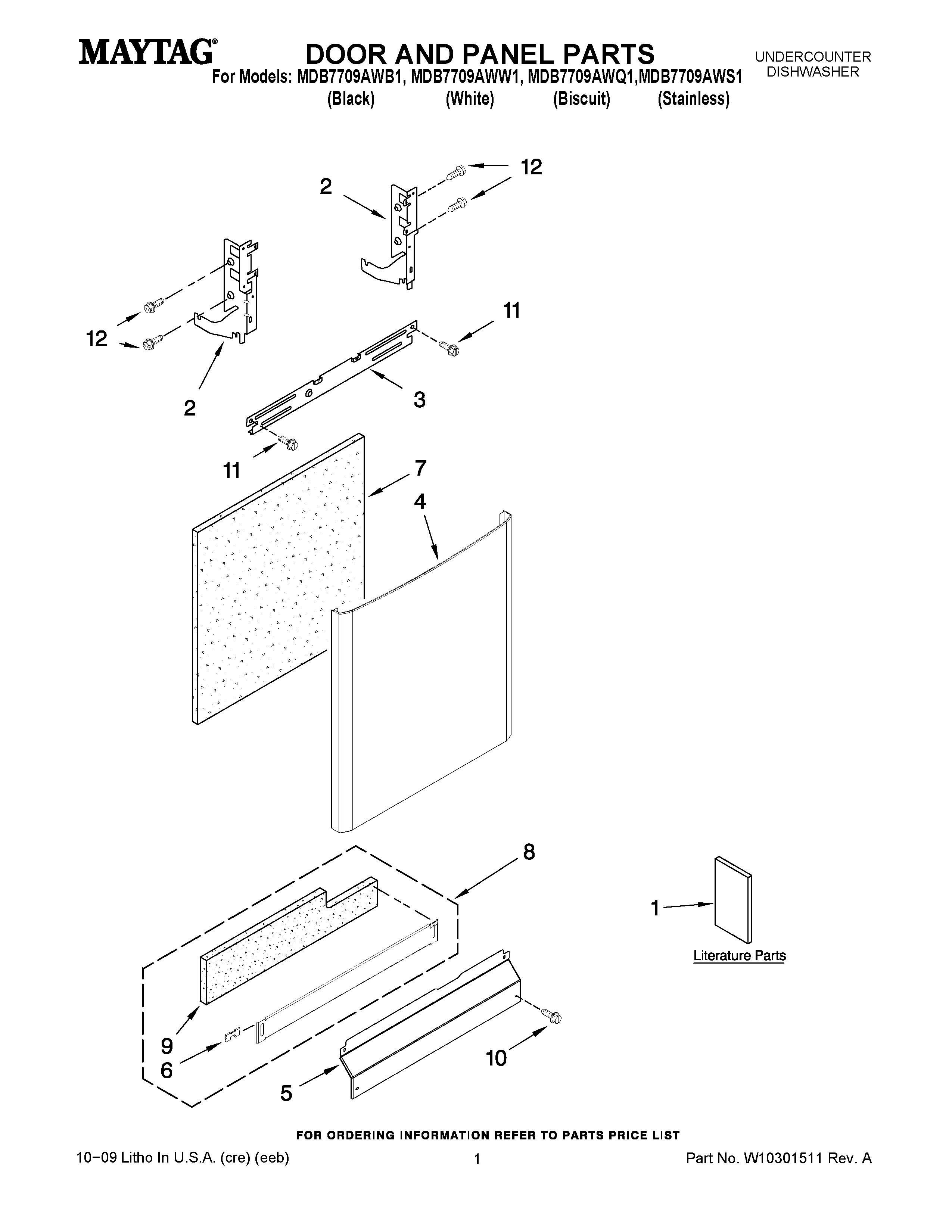

MDB7709AWW1 01 – DOOR AND PANEL PARTS

MDB7709AWW1 01 – DOOR AND PANEL PARTS

Written by

in

MDB7709AWW1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1TECH SHEET
1MAY W10255026
1MAY W10199707
1MAY W10199659
1MAY W10199658
2MAY 8534853
2MAY 8534854
3MAY 8268983
4MAY W10199760
4MAY W10199761
4MAY W10199759
4MAY W10199758
5MAY 8573257
5ACCESS PANEL (BLACK)
5MAY 8573256
6CLIP, GROUNDING
7MAY W10073520
8TOE PANEL (INCLUDES ITEM 9) (BLACK)
8TOE PANEL (INCLUDES ITEM 9) (BISCUIT)
8TOE PANEL (INCLUDES ITEM 9) (WHITE)
9INSULATION, ACCESS PANEL
10WP3400836 Whirlpool Dishwasher Screw
10SCREW (BLACK)
11Screw
12SCREW
