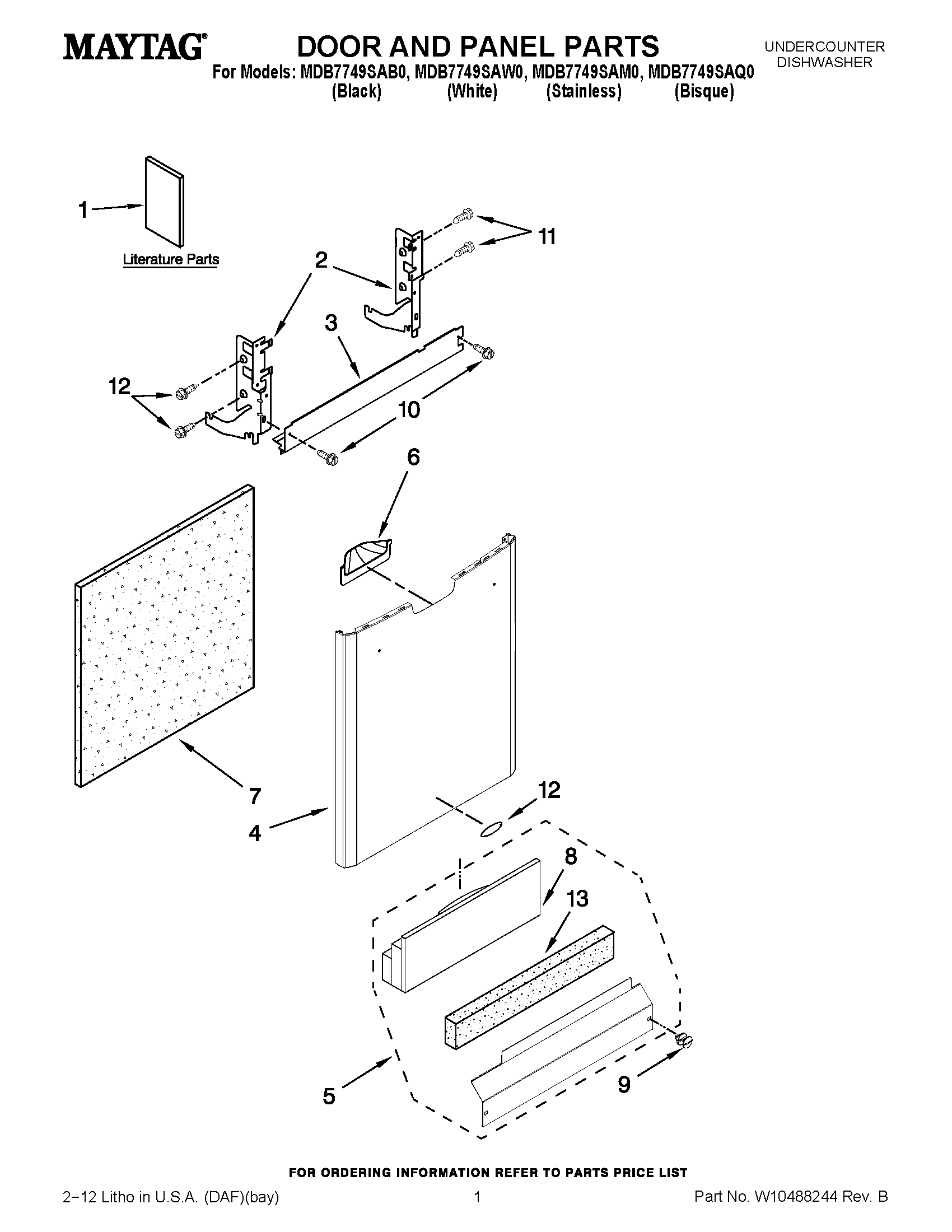

MDB7749SAB0 01 – DOOR AND PANEL PARTS

MDB7749SAB0 01 – DOOR AND PANEL PARTS

Written by

in

MDB7749SAB0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10438314
1TECH SHEET (FRENCH)
1MAY W10401504
1TECH SHEET (ENGLISH)
1MAY W10401494
2MAY 8534854
2MAY 8534853
3VAPOR BARRIER ASSEMBLY
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (WHITE)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (STAINLESS)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (BISCUIT/BISQUE)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (BLACK)
5MAY W10368715
5MAY W10368716
5MAY W10368717
6POCKET, PANEL (BISCUIT/BISQUE)
6MAY W10343320
6MAY W10343322
7MAY W10073520
8MAY W10350437
9SCREW (BISCUIT)
9SCREW (WHITE)
9SCREW (BLACK)
10Screw
11SCREW
12BADGE (BLACK)
13INSULATION, TOE PANEL
