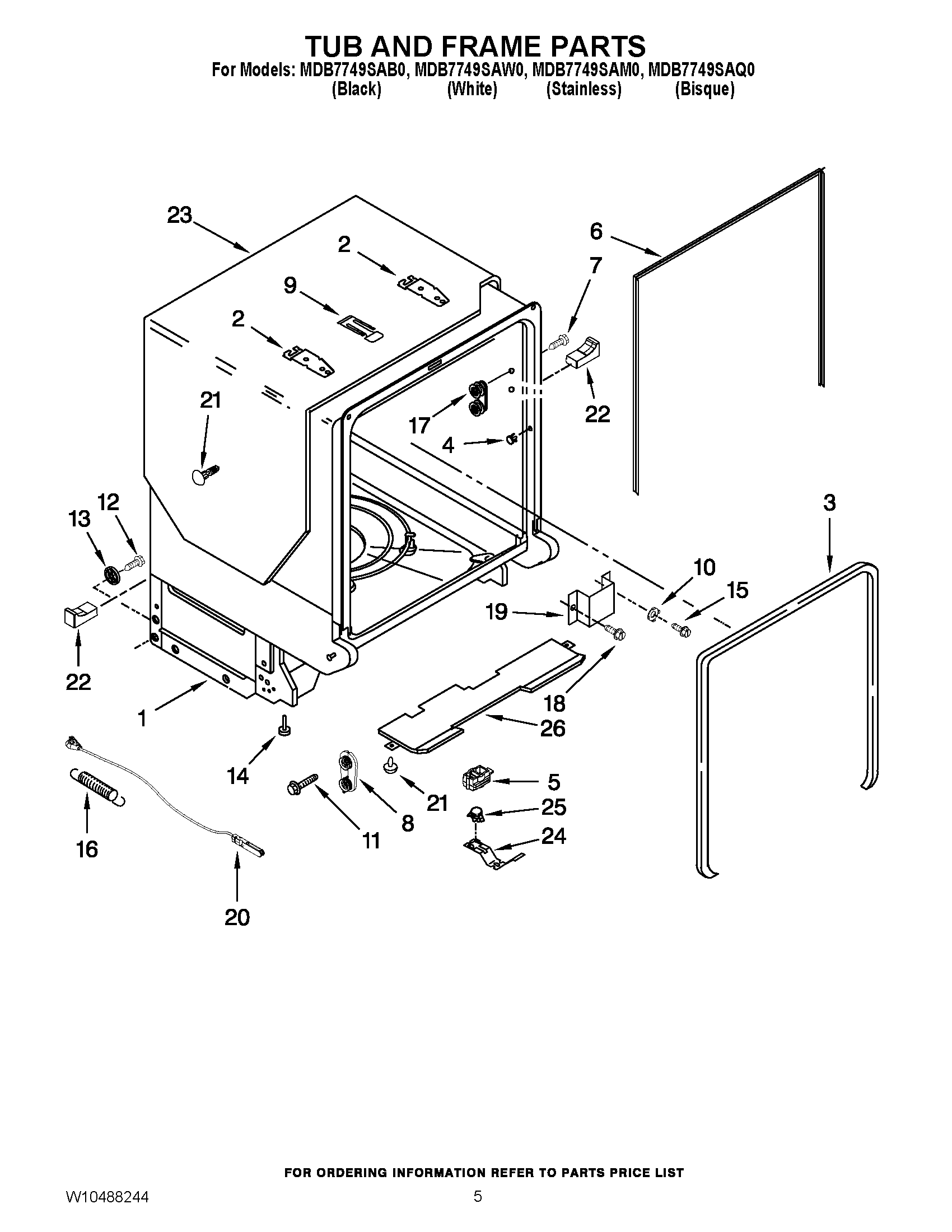

MDB7749SAB0 05 – TUB AND FRAME PARTS

MDB7749SAB0 05 – TUB AND FRAME PARTS

Written by

in

MDB7749SAB0 05 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10390304
2	MAY 8269145
3	SEAL, DOOR
4	MAY W10082838
5	MAY W10292870
6	SEAL, CABINET
7	MAY W10309090
8	DOOR BALANCE ASSEMBLY
9	STRIKE, PLATE
10	WASHER, PRONGED CUP
11	SCREW
12	MAY W10348411
13	WHEEL, LEG
14	MAY 8524584
15	MAY 3400014
16	MAY 8270020
17	WHEEL-TUB
18	MAY 3400892
19	MAY 8268991
20	CABLE, DOOR ASSEMBLY
21	RETAINER, PUSH
22	SPACER, TUB/BRACE (LEFT)
22	SPACER, TUB/BRACE (RIGHT)
23	MAY 8573240
24	MAY W10300703
25	MAY W10339563
26	INSULATION BOTTOM
