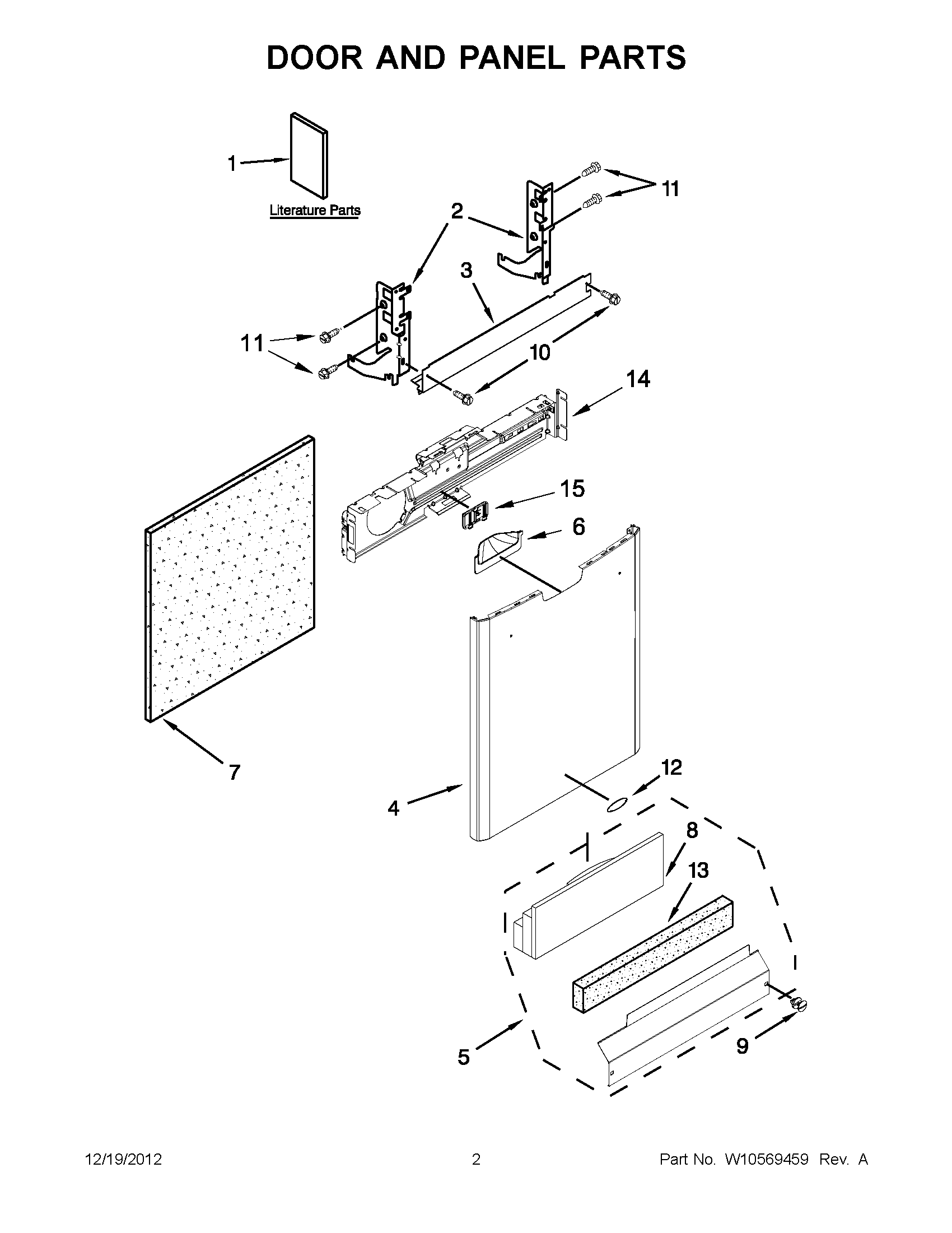

MDB7749SBB0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	TECH SHEET (FRENCH)
1	MAY W10401491
1	MAY W10401504
1	MAY W10555178
1	TECH SHEET (ENGLISH)
2	MAY 8534854
2	MAY 8534853
3	VAPOR BARRIER ASSEMBLY
4	FRONT PANEL (INCLUDES ITEMS 6 & 12) (STAINLESS)
4	FRONT PANEL (INCLUDES ITEMS 6 & 12) (BISCUIT/BISQUE)
4	FRONT PANEL (INCLUDES ITEMS 6 & 12) (BLACK)
4	FRONT PANEL (INCLUDES ITEMS 6 & 12) (WHITE)
5	MAY W10368716
5	MAY W10368717
5	MAY W10368715
6	MAY W10343320
6	MAY W10343322
6	POCKET, PANEL (BISCUIT/BISQUE)
6	MAY W10424843
7	INSULATION, FRONT PANEL
8	MAY W10350437
9	MAY W10503550
9	MAY W10503548
9	MAY W10503549
10	Screw
11	SCREW
12	BADGE (BLACK)
13	INSULATION, TOE PANEL
14	BRACKET, CONTROL
15	MAY W10463662
