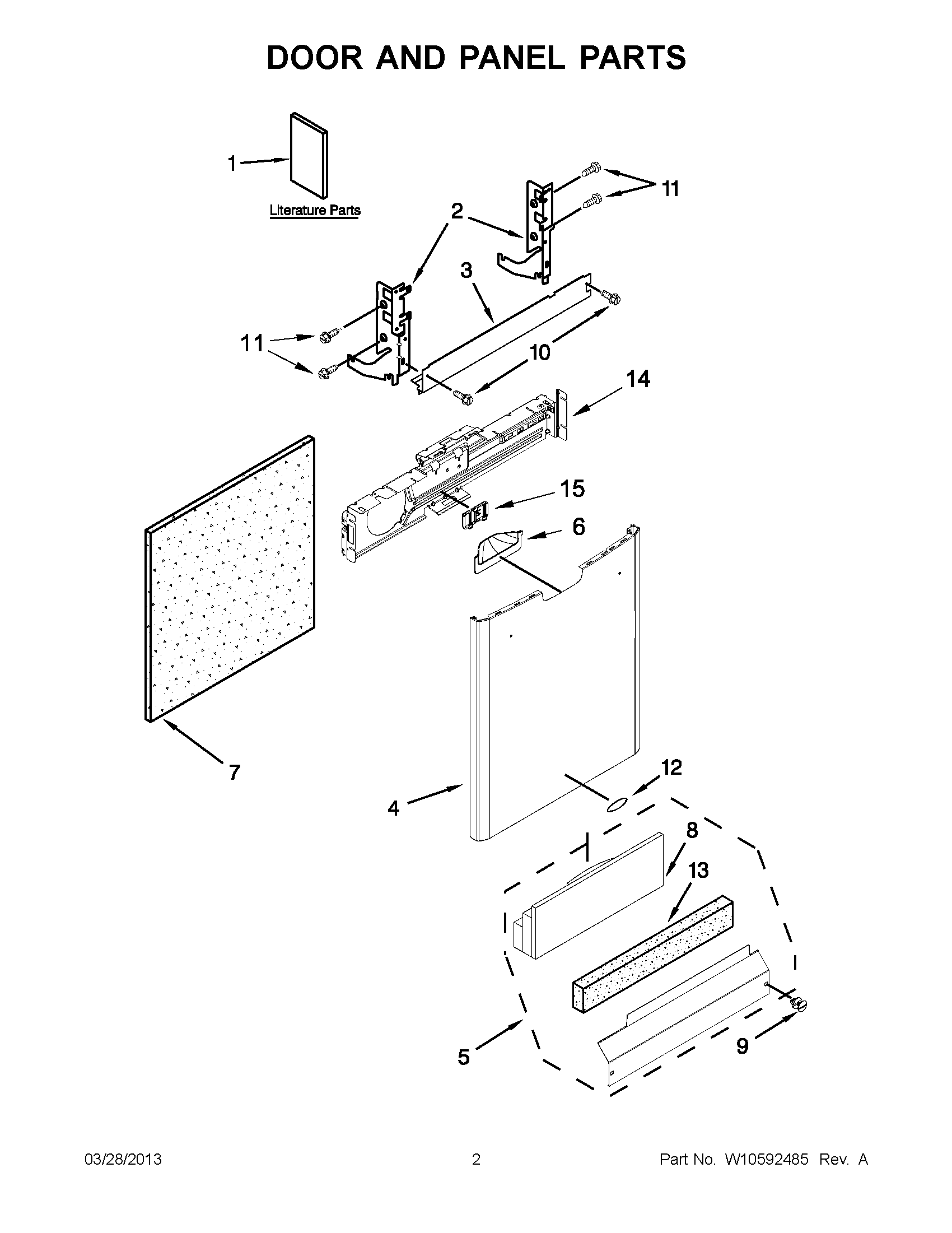

MDB7749SBB1 01 – DOOR AND PANEL PARTS

MDB7749SBB1 01 – DOOR AND PANEL PARTS

Written by

in

MDB7749SBB1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10580510
1MAY W10580509
1MAY W10532762
1MAY W10555178
1MAY W10401491
2MAY 8534853
2MAY 8534854
3VAPOR BARRIER ASSEMBLY
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (BLACK)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (BISCUIT/BISQUE)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (WHITE)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (STAINLESS)
5MAY W10368716
5MAY W10368715
5MAY W10368717
6MAY W10424843
6POCKET, PANEL (BISCUIT/BISQUE)
6MAY W10343322
6MAY W10343320
7INSULATION, FRONT PANEL
8MAY W10350437
9MAY W10503549
9MAY W10503550
9MAY W10503548
10Screw
11SCREW
12BADGE (BLACK)
13INSULATION, TOE PANEL
14BRACKET, CONTROL
15MAY W10463662
