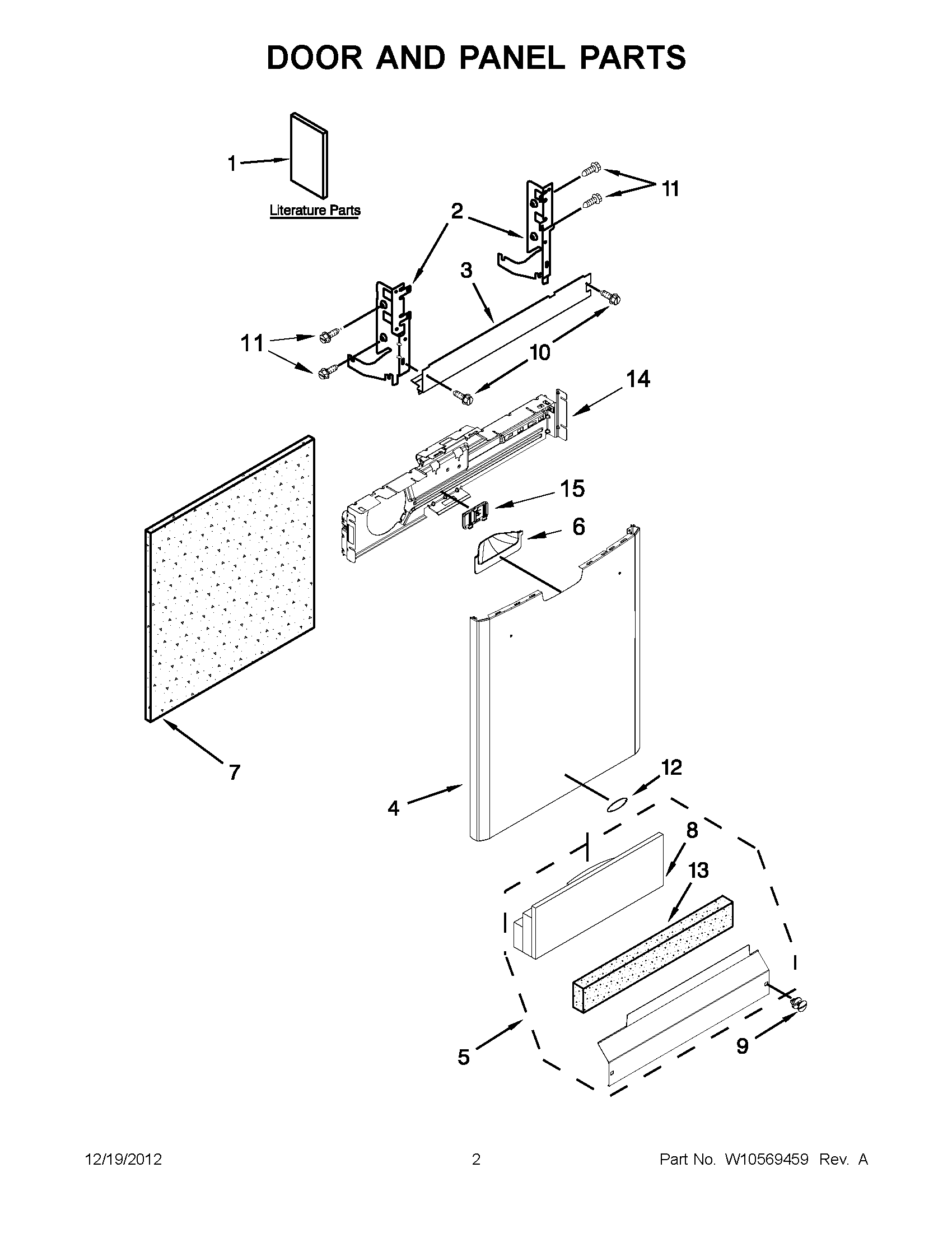

MDB7749SBM0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1TECH SHEET (FRENCH)
1MAY W10401491
1MAY W10401504
1MAY W10555178
1TECH SHEET (ENGLISH)
2MAY 8534854
2MAY 8534853
3VAPOR BARRIER ASSEMBLY
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (STAINLESS)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (BISCUIT/BISQUE)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (BLACK)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (WHITE)
5MAY W10368716
5MAY W10368717
5MAY W10368715
6MAY W10343320
6MAY W10343322
6POCKET, PANEL (BISCUIT/BISQUE)
6MAY W10424843
7INSULATION, FRONT PANEL
8MAY W10350437
9MAY W10503550
9MAY W10503548
9MAY W10503549
10Screw
11SCREW
12BADGE (BLACK)
13INSULATION, TOE PANEL
14BRACKET, CONTROL
15MAY W10463662
