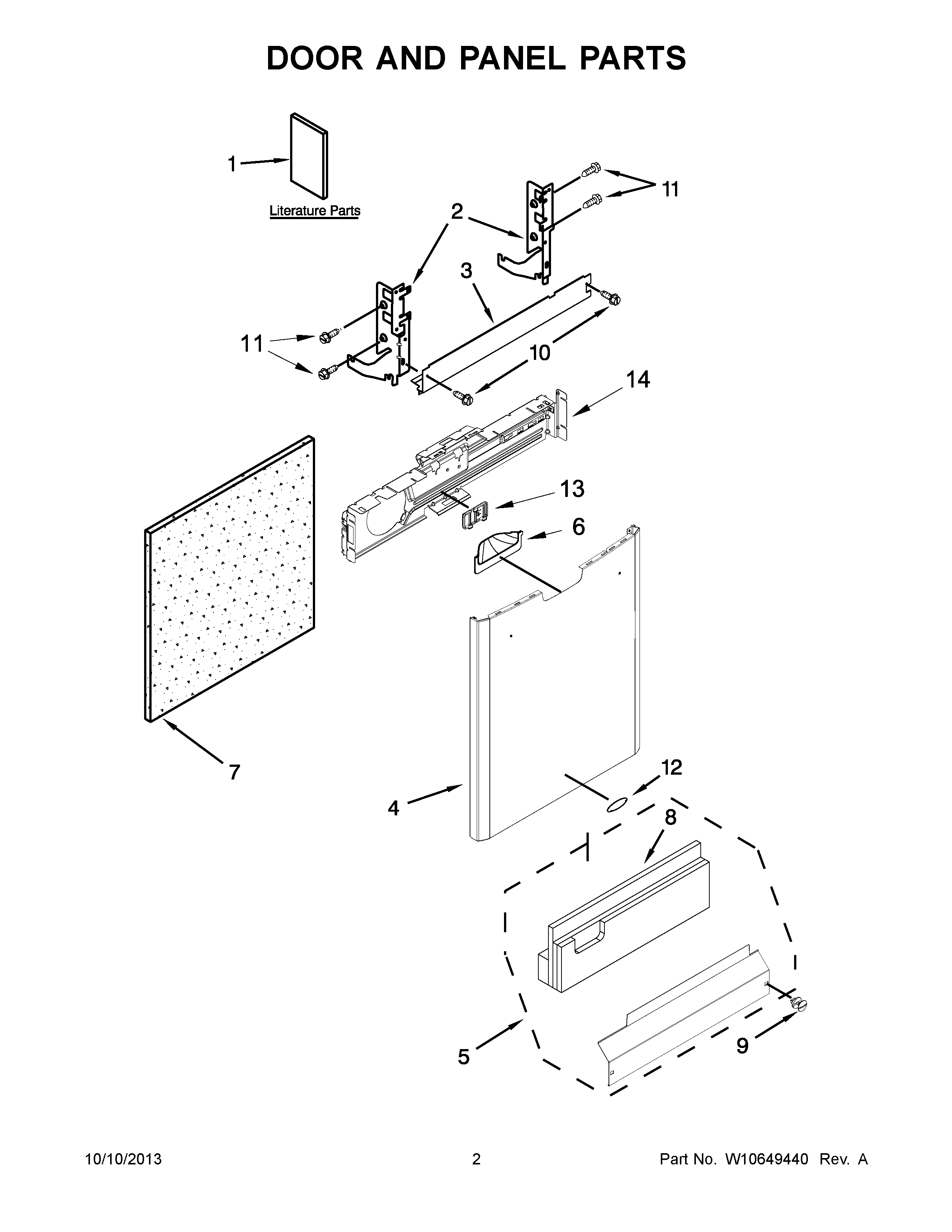

MDB7749SBM3 02 – DOOR AND PANEL PARTS

MDB7749SBM3 02 – DOOR AND PANEL PARTS

Written by

in

MDB7749SBM3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10596229
1MAY W10580510
1MAY W10638719
1MAY W10580509
1MAY W10532762
2MAY 8534854
2MAY 8534853
3VAPOR BARRIER ASSEMBLY
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (WHITE)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (BISCUIT/BISQUE)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (STAINLESS)
4FRONT PANEL (INCLUDES ITEMS 6 & 12) (BLACK)
5MAY W10526114
5MAY W10526115
5MAY W10526116
6POCKET, PANEL (BISCUIT/BISQUE)
6MAY W10343322
6MAY W10343320
6MAY W10571386
7INSULATION, FRONT PANEL
8INSULATION, FOUR LAYER
9MAY W10503548
9MAY W10503549
9MAY W10503550
10Screw
11SCREW
12BADGE (BLACK)
13MAY W10463662
14BRACKET, CONTROL
