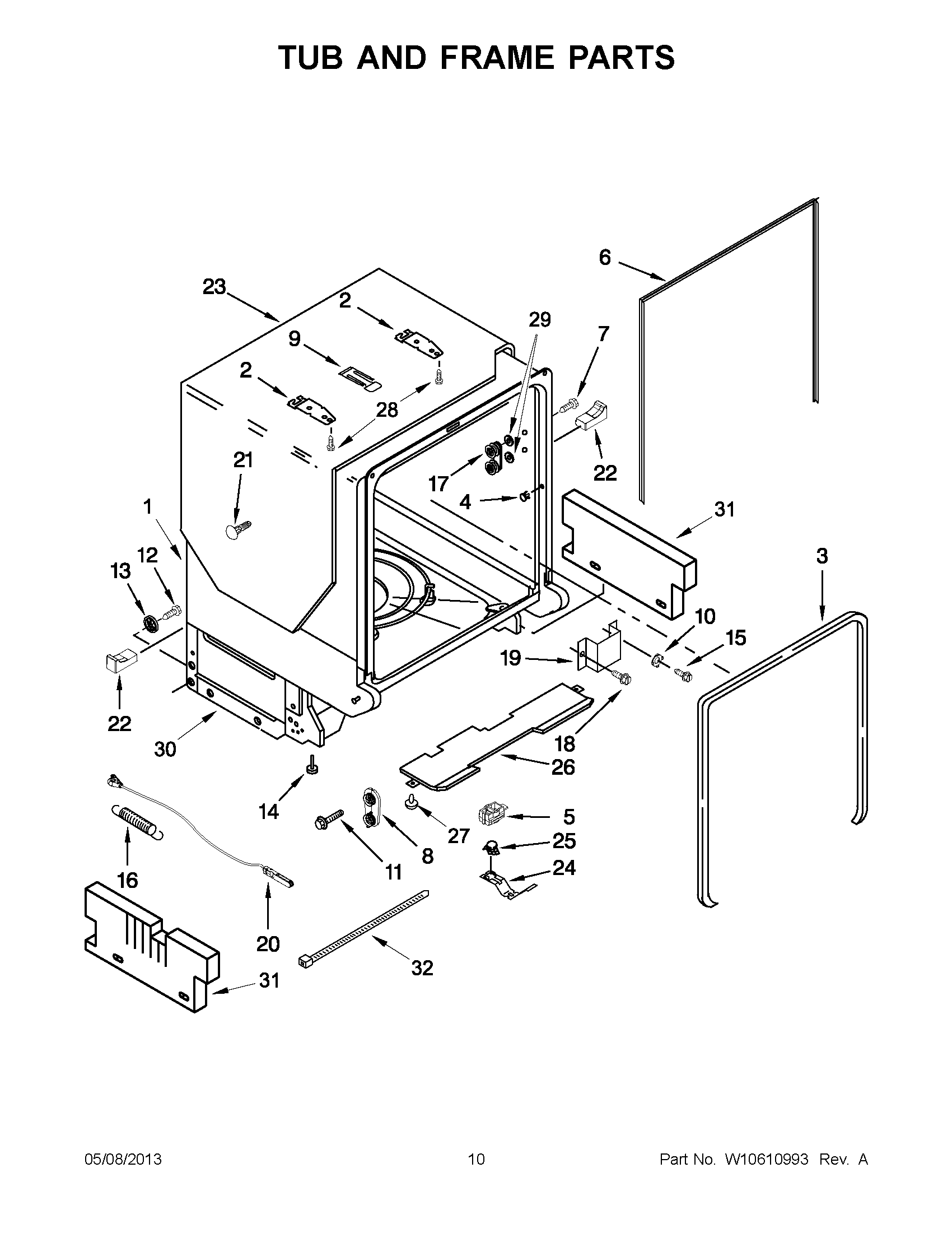

MDB7749SBW2 05 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10511187
2	MAY 8269145
3	SEAL, DOOR
4	MAY W10082838
5	MAY W10292870
6	SEAL, CABINET
7	MAY W10309090
8	DOOR BALANCE ASSEMBLY
9	STRIKE, PLATE
10	WASHER, PRONGED CUP
11	SCREW
12	MAY W10348411
13	WHEEL, LEG
14	MAY W10304228
15	MAY 3400014
16	MAY 8270020
17	WHEEL & MOUNT ASSEMBLY (ALSO ORDER ITEM 6)
18	MAY 3400892
19	MAY 8268991
20	CABLE, DOOR ASSEMBLY
21	RETAINER, PUSH
22	SPACER, TUB/BRACE (RIGHT)
22	SPACER, TUB/BRACE (LEFT)
23	MAY 8573239
24	MAY W10300703
25	MAY W10339563
26	INSULATION BOTTOM
27	MAY 3400924
28	MAY 3367670
29	MAY 9743002
30	MAY W10398392
31	SIDE SHIELD (RIGHT AND LEFT)
32	MAY 8539404
