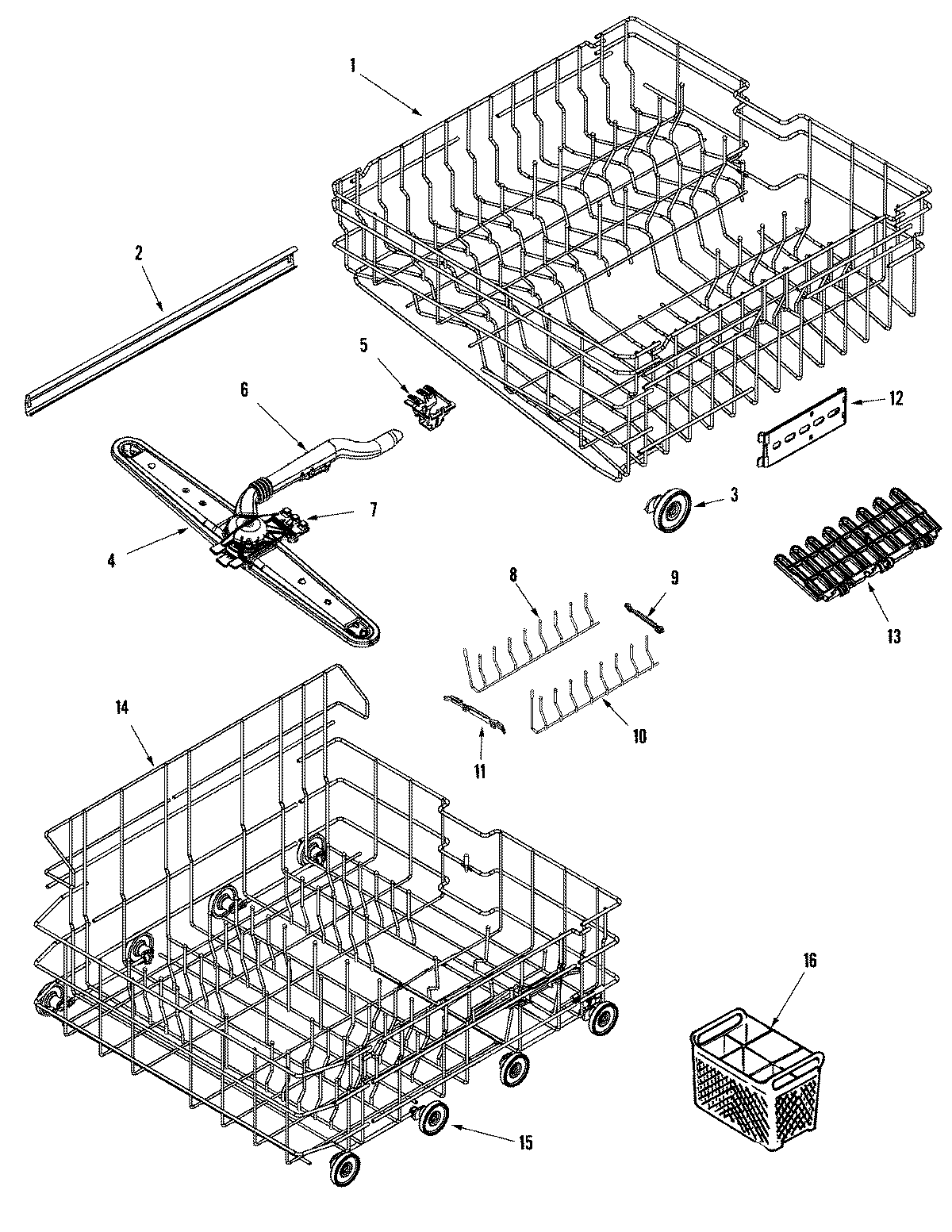

MDB7750AWQ 04 – RAIL & RACK ASSEMBLY

Products

Position	Product
1	MAY 99003310
2	WP99003281 Whirlpool Gray Rail Stop
2	MAY 99003069
2	MAY 99003066
2	WP99003068 Whirlpool Dishwasher Bearing
3	WP99003147 Whirlpool Dishwasher Upper Rack Wheel
4	WP99003070 Whirlpool Dishwasher Wash Arm
5	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
6	WASH MANIFOLD ASSY (UPR)
7	CLIP, UPR WASH MANIFOLD (FRT)
9	WP99002709 Whirlpool Tine Pivot Clip
10	WP99003496 Whirlpool Convertible Row Tine
11	WP99002710 Whirlpool Dishwasher Fold-Down Latch
12	MAY 99003053
12	MAY 99003052
13	MAY 99002671
14	MAY 99003311
14	MAY 99002905
15	WP99002780 Whirlpool Lower Wheel Assembly
16	WP6-918873 Whirlpool Silverware Basket
