MDB7750AWS 04 – RAIL & RACK ASSEMBLY

MDB7750AWS 04 – RAIL & RACK ASSEMBLY

Written by

in

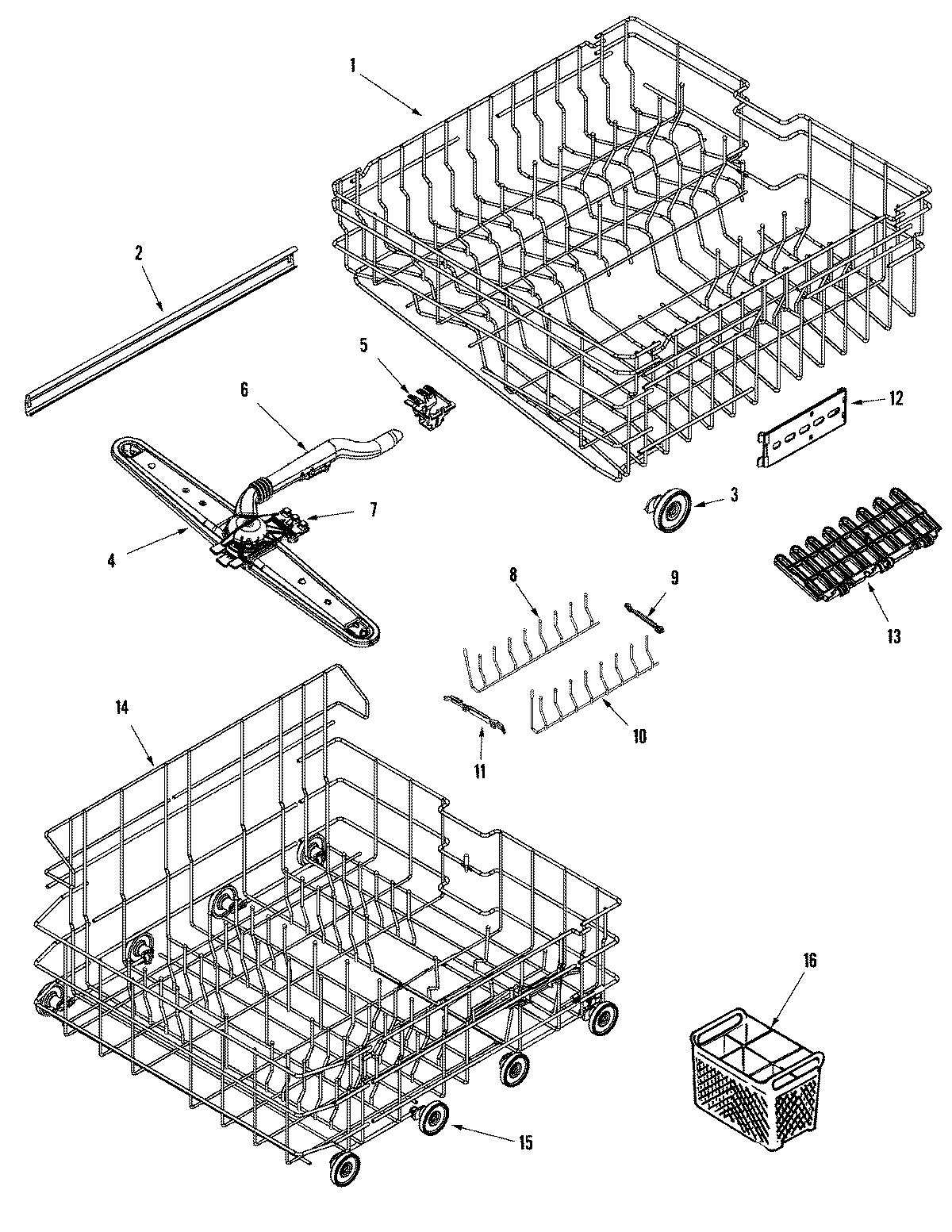

MDB7750AWS 04 – RAIL & RACK ASSEMBLY

Products

PositionProduct
1MAY 99003310
2WP99003281 Whirlpool Gray Rail Stop
2MAY 99003069
2MAY 99003066
2WP99003068 Whirlpool Dishwasher Bearing
3WP99003147 Whirlpool Dishwasher Upper Rack Wheel
4WP99003070 Whirlpool Dishwasher Wash Arm
599002945 Whirlpool Dishwasher Upper Wash Manifold Clip
6WASH MANIFOLD ASSY (UPR)
7CLIP, UPR WASH MANIFOLD (FRT)
9WP99002709 Whirlpool Tine Pivot Clip
10WP99003496 Whirlpool Convertible Row Tine
11WP99002710 Whirlpool Dishwasher Fold-Down Latch
12MAY 99003053
12MAY 99003052
13MAY 99002671
14MAY 99003311
14MAY 99002905
15WP99002780 Whirlpool Lower Wheel Assembly
16WP6-918873 Whirlpool Silverware Basket
