MDB7751AWS 04 – RAIL & RACK ASSEMBLY

MDB7751AWS 04 – RAIL & RACK ASSEMBLY

Written by

in

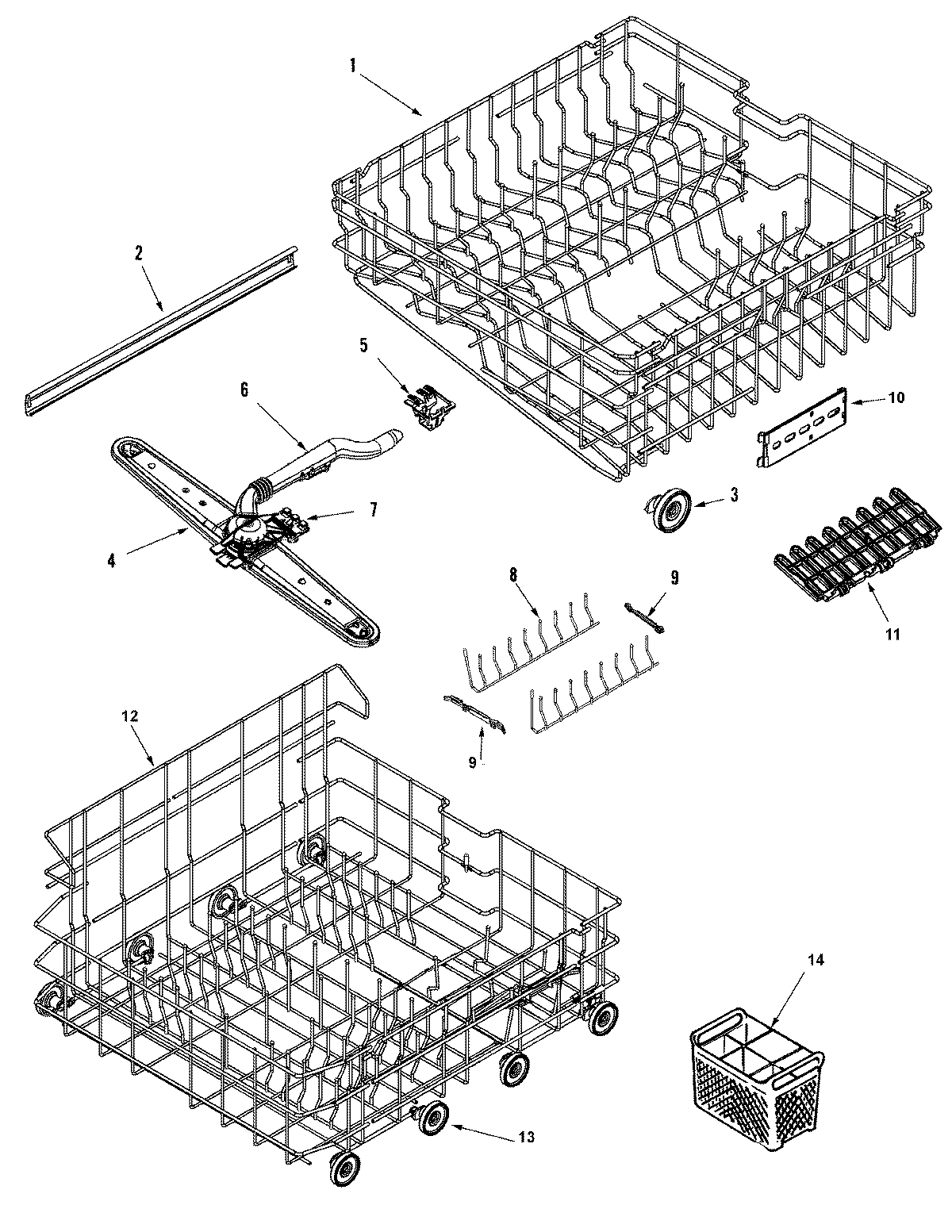

MDB7751AWS 04 – RAIL & RACK ASSEMBLY

Products

PositionProduct
1MAY 99003492
2WP99003281 Whirlpool Gray Rail Stop
2MAY 99003069
2MAY 99003066
2WP99003068 Whirlpool Dishwasher Bearing
3WP99003147 Whirlpool Dishwasher Upper Rack Wheel
4WP99003070 Whirlpool Dishwasher Wash Arm
599002945 Whirlpool Dishwasher Upper Wash Manifold Clip
6WASH MANIFOLD ASSY (UPR)
7CLIP, UPR WASH MANIFOLD (FRT)
8MAY 99003485
9WP99003484 Whirlpool Dishwasher Folding Tine Clip
9WP99002709 Whirlpool Tine Pivot Clip
10MAY 99003053
10MAY 99003052
11MAY 99002671
12MAY 99003311
12MAY 99002905
13WP99002780 Whirlpool Lower Wheel Assembly
14WP6-918873 Whirlpool Silverware Basket
