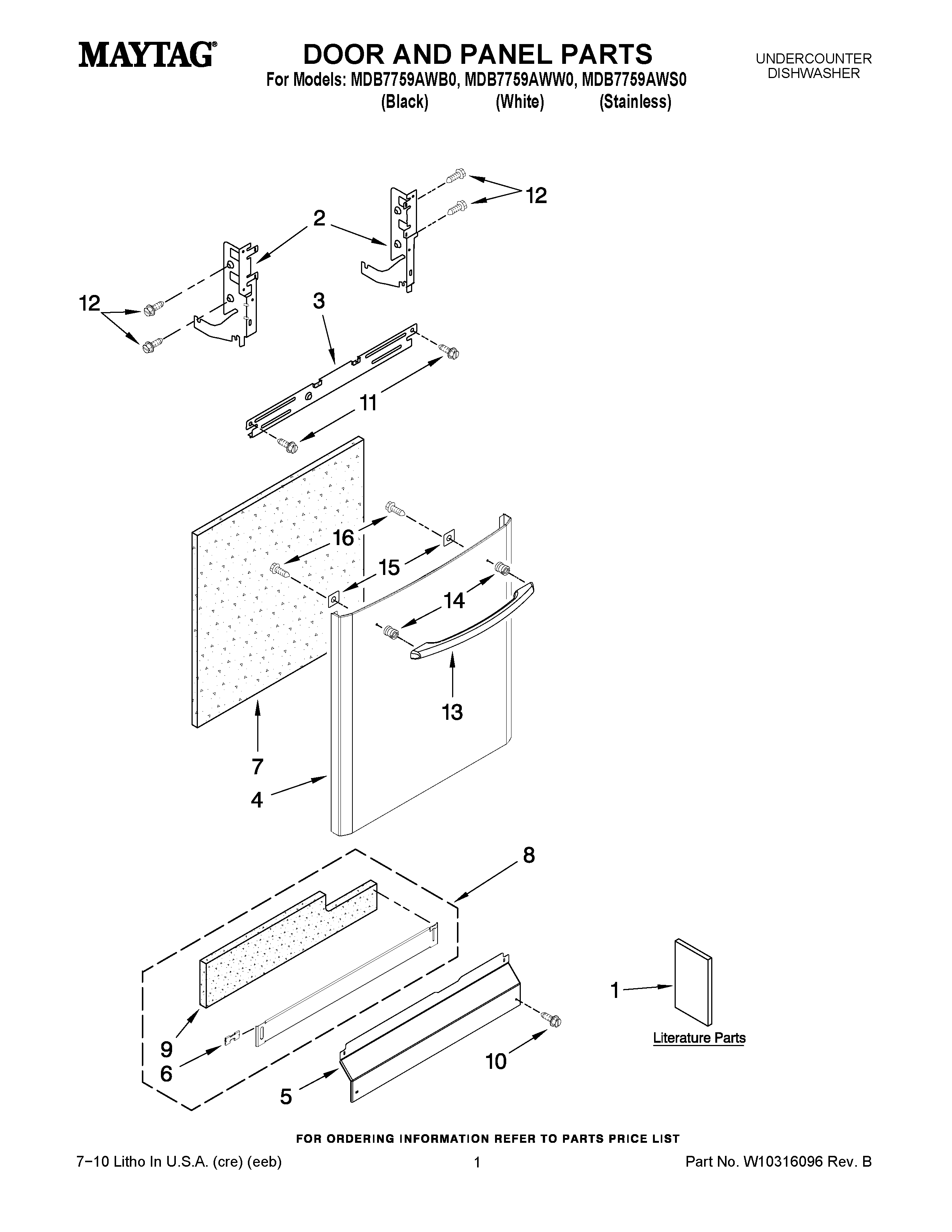

MDB7759AWS0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10298361
1	MAY W10199707
1	MAY W10199658
1	TECH SHEET
2	MAY 8534854
2	MAY 8534853
3	MAY 8268983
4	MAY W10199762
4	MAY W10199769
4	MAY W10199768
5	MAY 8573256
5	ACCESS PANEL (BLACK)
6	CLIP, GROUNDING
7	MAY W10073520
8	TOE PANEL (INCLUDES ITEM 9) (WHITE)
8	TOE PANEL (INCLUDES ITEM 9) (BLACK)
9	INSULATION, ACCESS PANEL
10	WP3400836 Whirlpool Dishwasher Screw
10	SCREW (BLACK)
11	Screw
12	SCREW
13	MAY W10199635
13	MAY W10199637
13	MAY W10199639
14	STUD, MOUNTING
15	PLATE, BACKING
16	MAY W10123421
