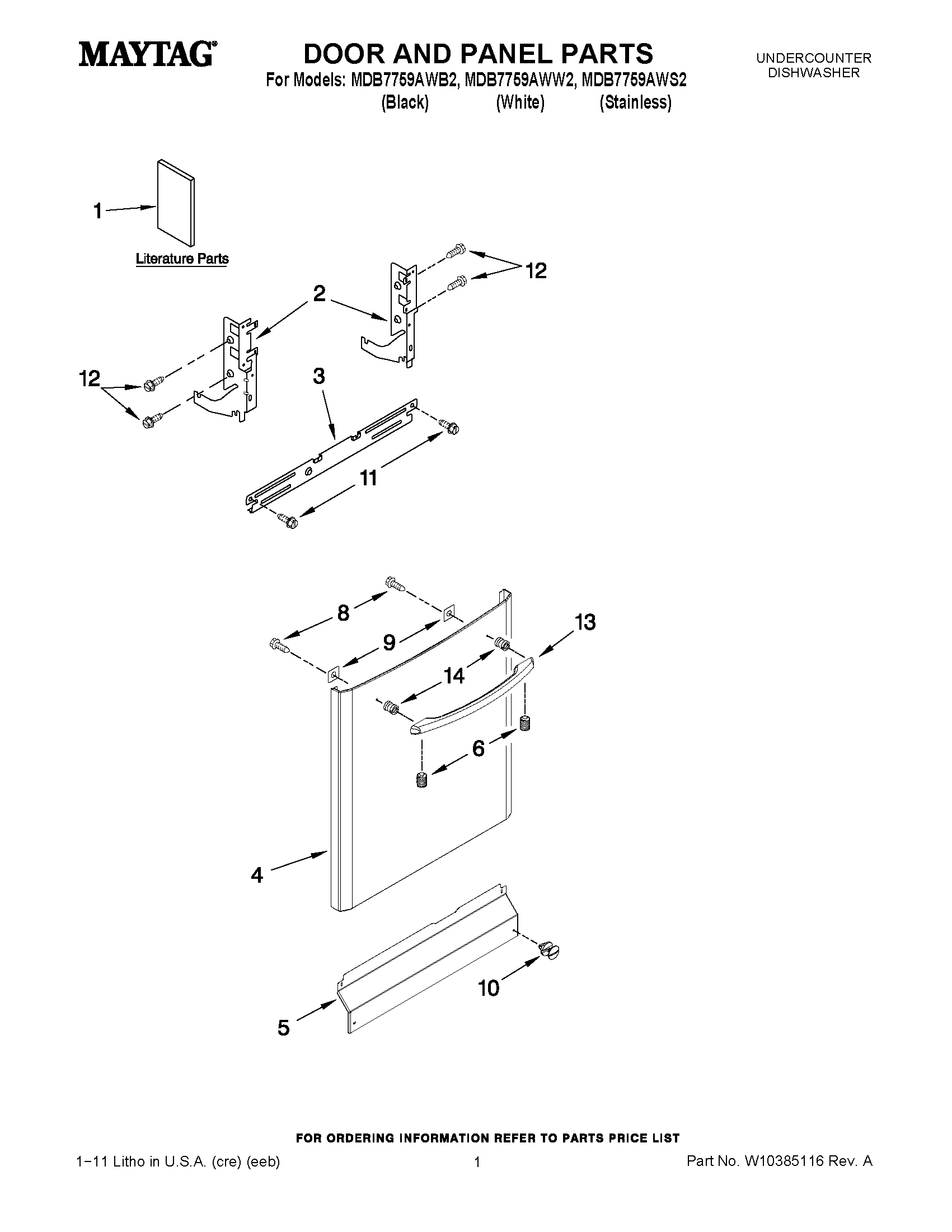

MDB7759AWS2 01 – DOOR AND PANEL PARTS

MDB7759AWS2 01 – DOOR AND PANEL PARTS

Written by

in

MDB7759AWS2 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10284980
1	MAY W10329555
1	MAY W10199658
1	TECH SHEET
2	MAY 8534853
2	MAY 8534854
3	MAY 8268983
4	MAY W10199762
4	MAY W10199768
4	MAY W10199769
5	ACCESS PANEL (WHITE)
5	MAY W10369024
5	MAY W10369028
6	SCREW, SET
8	MAY W10123421
9	PLATE, BACKING
10	SCREW (BISCUIT)
10	SCREW (WHITE)
10	SCREW (BLACK)
11	Screw
12	SCREW
13	MAY W10199637
13	MAY W10199635
13	MAY W10199639
14	STUD, MOUNTING
