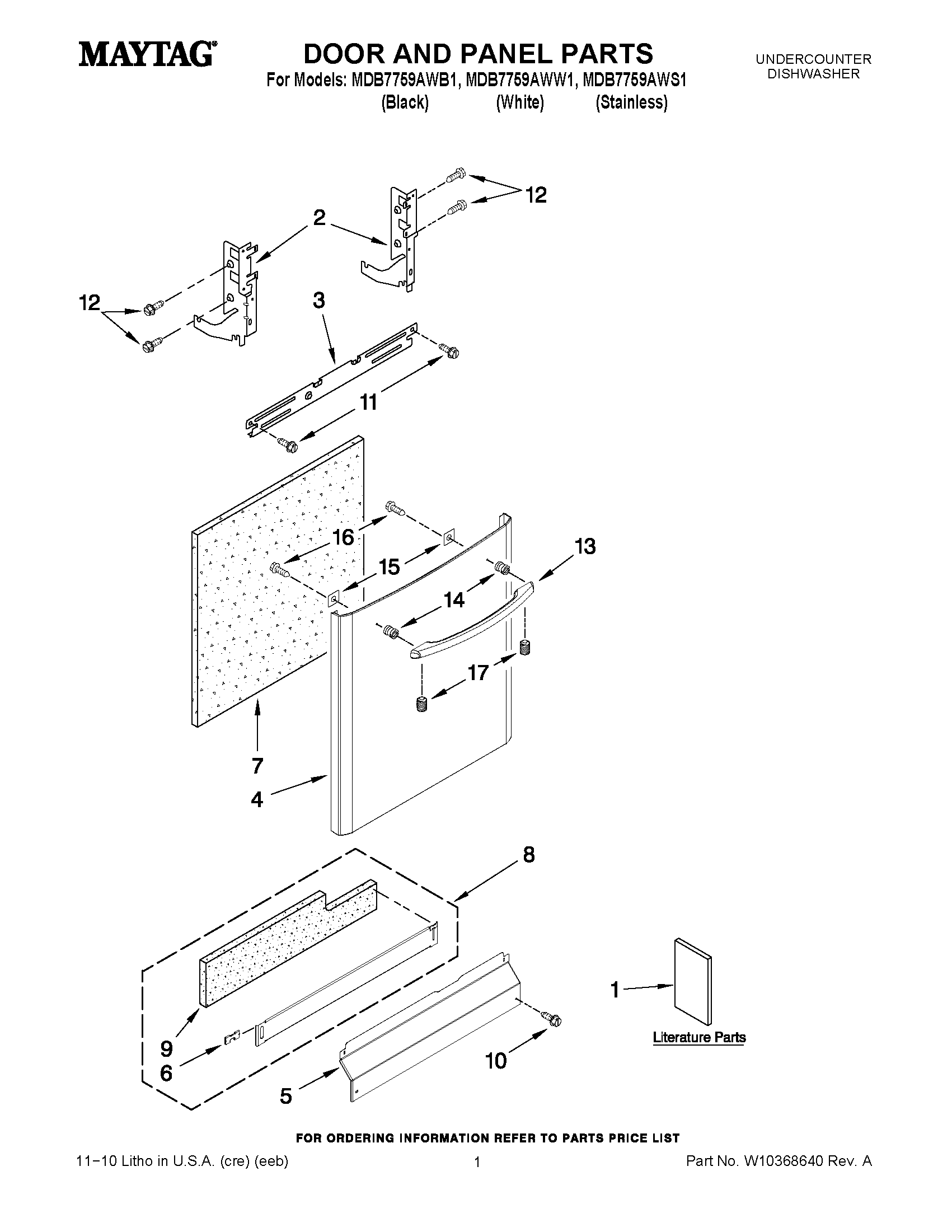

MDB7759AWW1 01 – DOOR AND PANEL PARTS

MDB7759AWW1 01 – DOOR AND PANEL PARTS

Written by

in

MDB7759AWW1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10284980
1TECH SHEET
1MAY W10199658
1MAY W10298361
2MAY 8534853
2MAY 8534854
3MAY 8268983
4MAY W10199762
4MAY W10199768
4MAY W10199769
5MAY W10195778
5MAY W10195779
5MAY W10195777
6CLIP, GROUNDING
7MAY W10073520
8TOE PANEL (INCLUDES ITEM 9) (BLACK)
8TOE PANEL (INCLUDES ITEM 9) (WHITE)
9INSULATION, ACCESS PANEL
10SCREW (BLACK)
10WP3400836 Whirlpool Dishwasher Screw
11Screw
12SCREW
13MAY W10199635
13MAY W10199637
13MAY W10199639
14STUD, MOUNTING
15PLATE, BACKING
16MAY W10123421
17SCREW, SET
