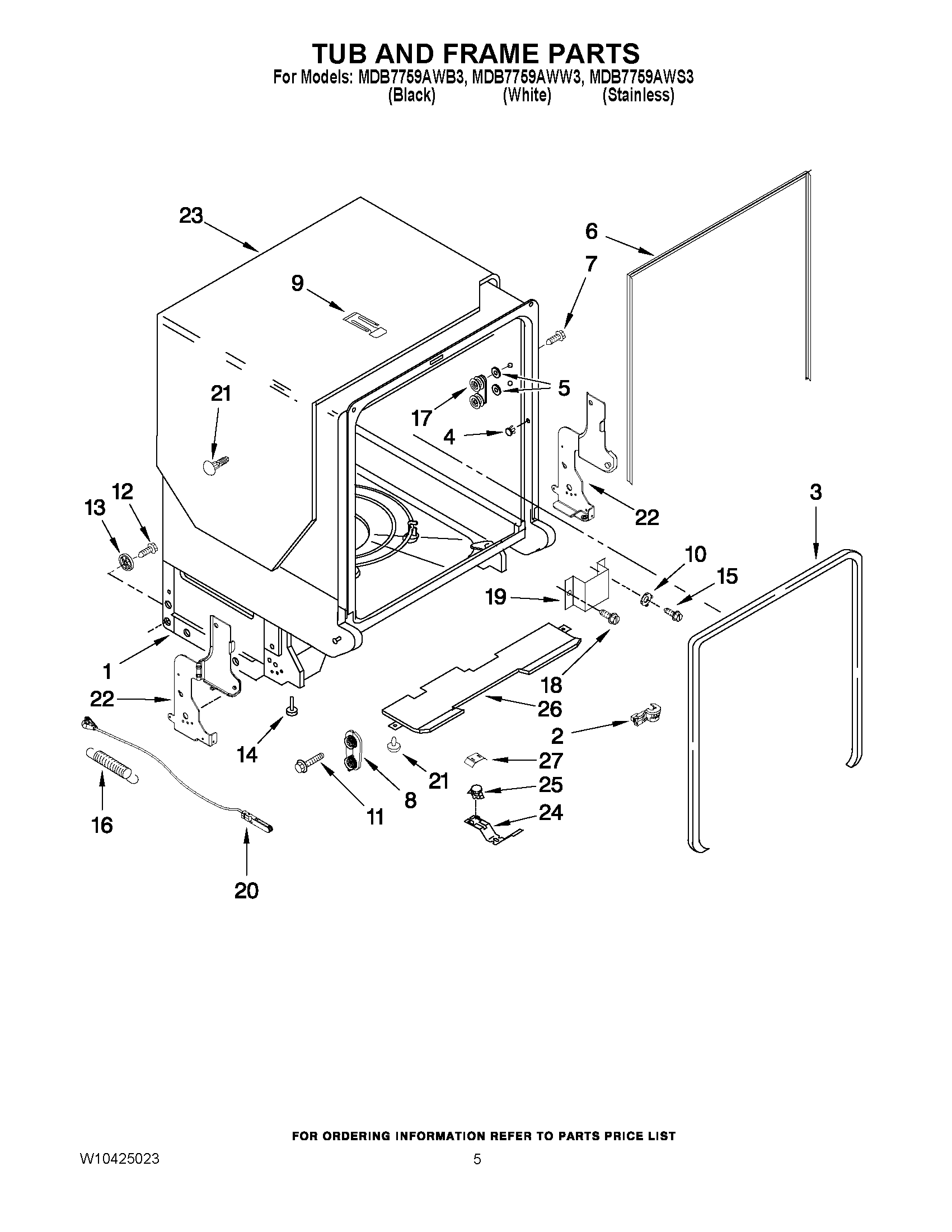

MDB7759AWW3 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY
2	MAY 8573061
3	MAY W10112096
4	MAY W10082838
5	MAY 9743002
6	MAY 8269110
7	MAY W10309090
8	DOOR BALANCE ASSEMBLY
9	MAY W10317686
10	WASHER, PRONGED CUP
11	SCREW
12	MAY W10348411
13	WHEEL, LEG
14	MAY 8524584
15	MAY 3400014
16	MAY 8270020
17	WHEEL & MOUNT ASSEMBLY (ALSO ORDER ITEM 6)
18	MAY 3400892
19	MAY 8268991
20	CABLE, DOOR ASSEMBLY
21	RETAINER, PUSH
22	MAY W10185368
23	MAY 8573239
24	MAY W10338903
25	MAY 661566
26	INSULATION BOTTOM
27	MAY W10321574
