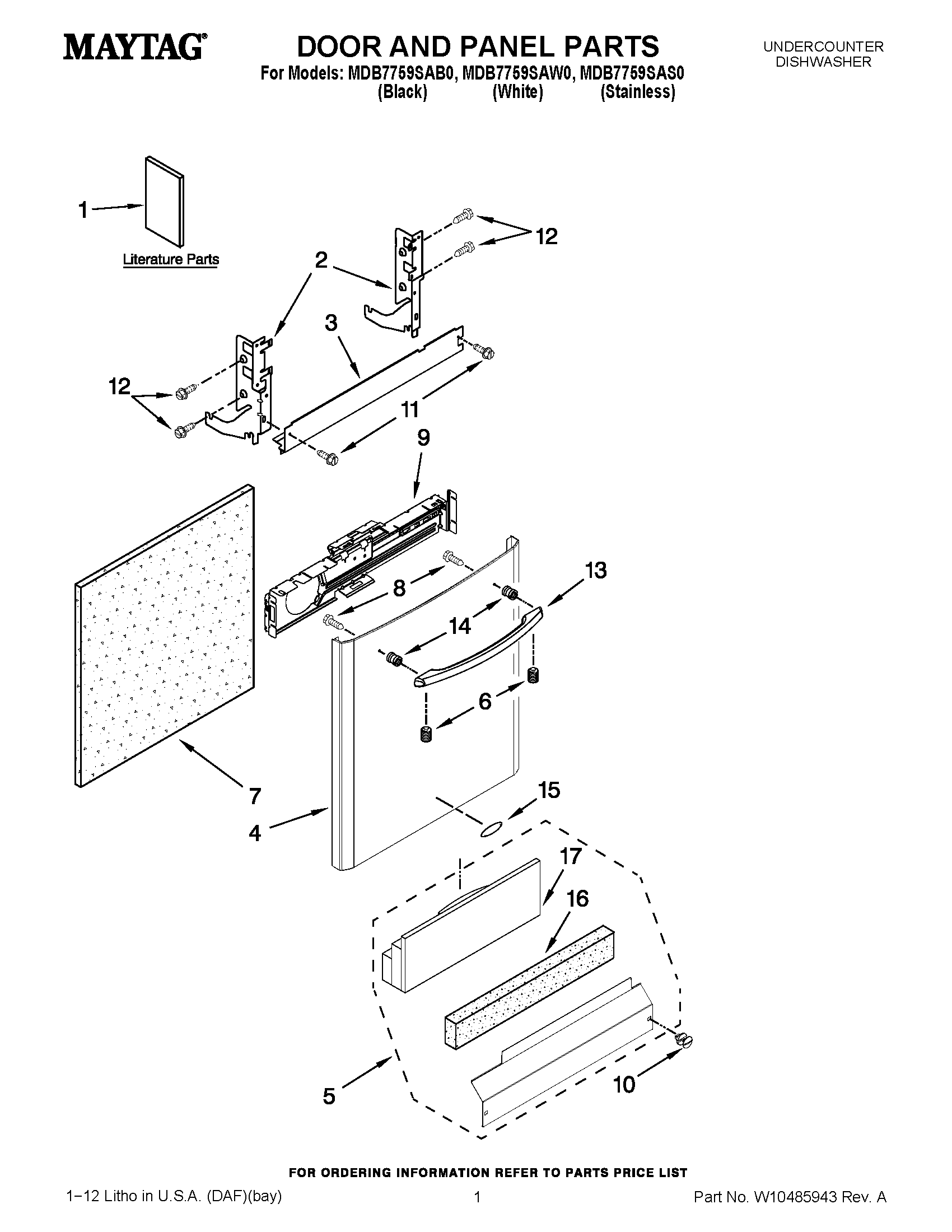

MDB7759SAB0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10401491
1MAY W10401494
1MAY W10401504
1TECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
2MAY 8534853
2MAY 8534854
3VAPOR BARRIER ASSEMBLY
4PANEL FRONT (ALSO INCLUDES ITEMS 8, 13, 15) (WHITE)
4PANEL FRONT (ALSO INCLUDES ITEMS 8, 13, 15) (BLACK)
4PANEL FRONT (ALSO INCLUDES ITEMS 8, 13, 15) (STAINLESS)
5MAY W10368716
5MAY W10368715
6SCREW, SET
7MAY W10073520
8MAY W10316572
9BRACKET, CONTROL
10SCREW (BLACK)
10SCREW (WHITE)
11Screw
12SCREW
13MAY W10461636
13MAY W10461635
13MAY W10461637
14MAY W10195726
15BADGE (BLACK)
16INSULATION, TOE PANEL
17MAY W10350437
