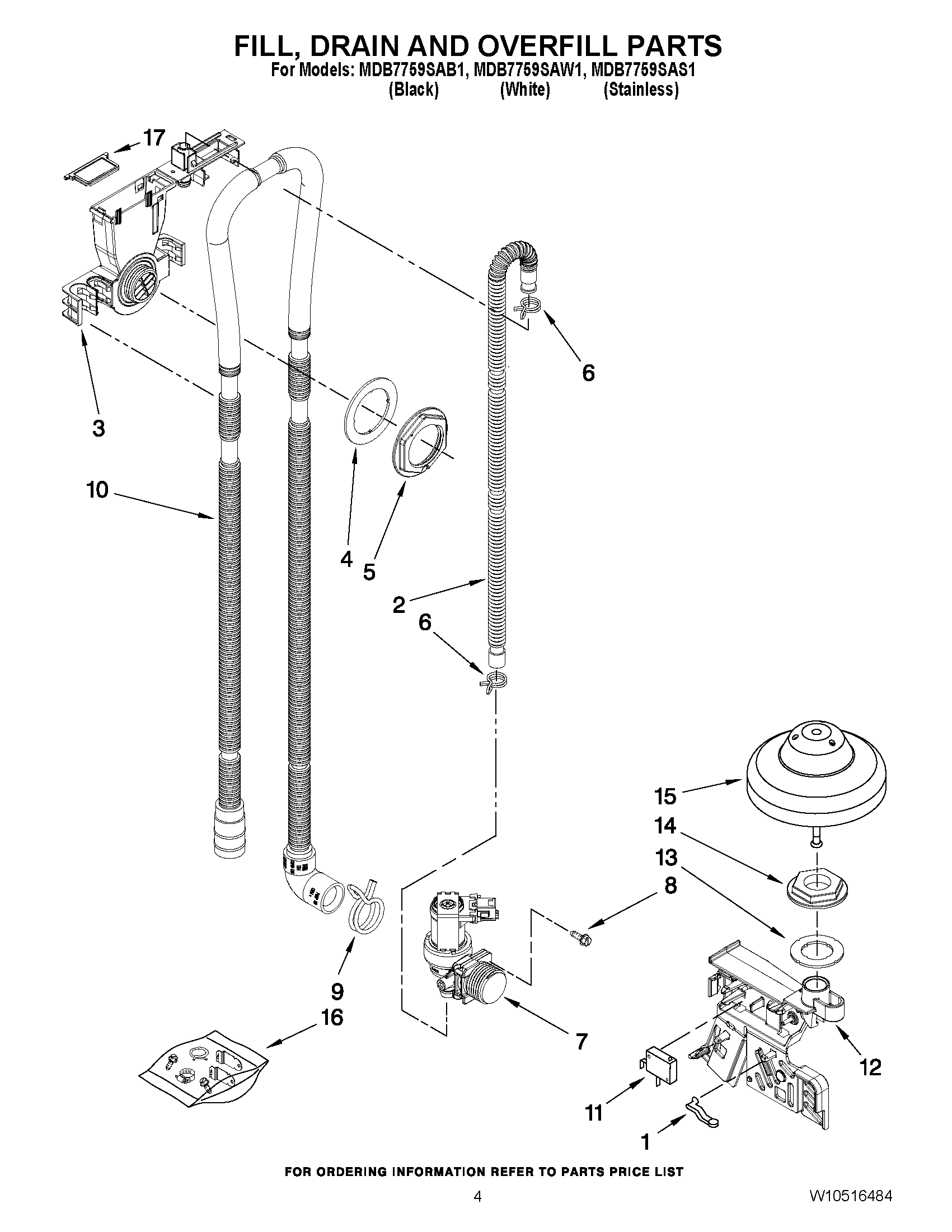

MDB7759SAS1 04 – FILL, DRAIN AND OVERFILL PARTS

MDB7759SAS1 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

MDB7759SAS1 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1LEVER, OVERFILL SWITCH
2MAY 8531412
3INLET, WATER (ALSO ORDER ITEMS 4 & 17)
4MAY 8531323
5NUT, WATER INLET (ALSO ORDER ITEM 4)
6MAY 371505
7MAY W10195047
8Screw
9MAY 370445
10MAY W10195750
11MAY W10195039
12STANDPIPE, OVERFILL (ALSO ORDER No.11)
13MAY 8531743
14MAY W10195038
15MAY W10195036
16MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAMPS, SCREWS & 2UNDER COUNTER BRACKETS)
17MAY W10316376
