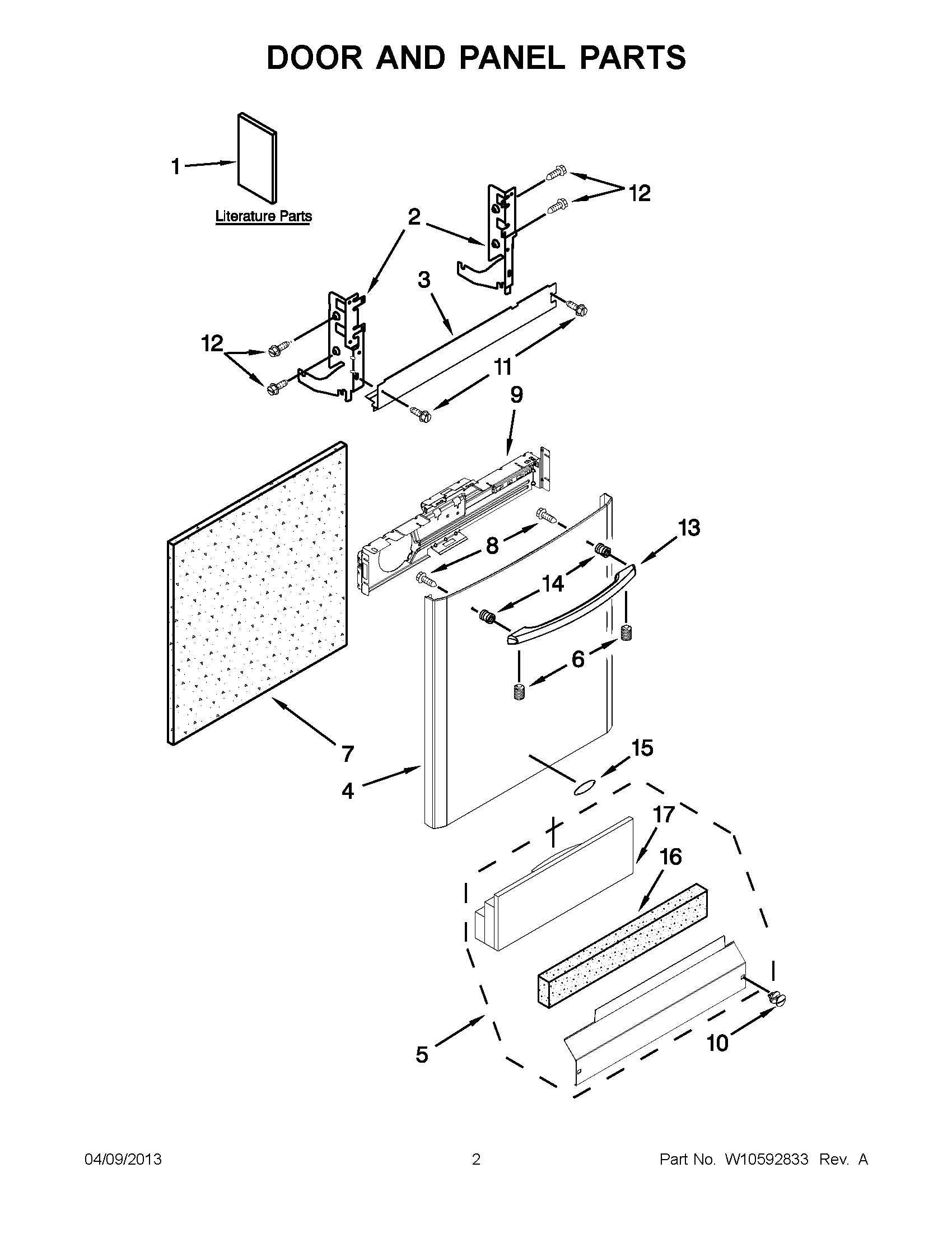

MDB7759SAS2 01 – DOOR AND PANEL PARTS

MDB7759SAS2 01 – DOOR AND PANEL PARTS

Written by

in

MDB7759SAS2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10490737
1MAY W10580509
1MAY W10532762
1MAY W10580510
1MAY W10438314
2MAY 8534854
2MAY 8534853
3VAPOR BARRIER ASSEMBLY
4PANEL FRONT (ALSO INCLUDES ITEMS 8, 13, 15) (BLACK)
4PANEL FRONT (ALSO INCLUDES ITEMS 8, 13, 15) (STAINLESS)
4PANEL FRONT (ALSO INCLUDES ITEMS 8, 13, 15) (WHITE)
5MAY W10368716
5MAY W10368715
6SCREW, SET
7MAY W10073520
8MAY W10316572
9BRACKET, CONTROL
10MAY W10503548
10MAY W10503549
11Screw
12SCREW
13MAY W10461635
13MAY W10461636
13MAY W10324628
14MAY W10195726
15BADGE (BLACK)
16INSULATION, TOE PANEL
17MAY W10350437
