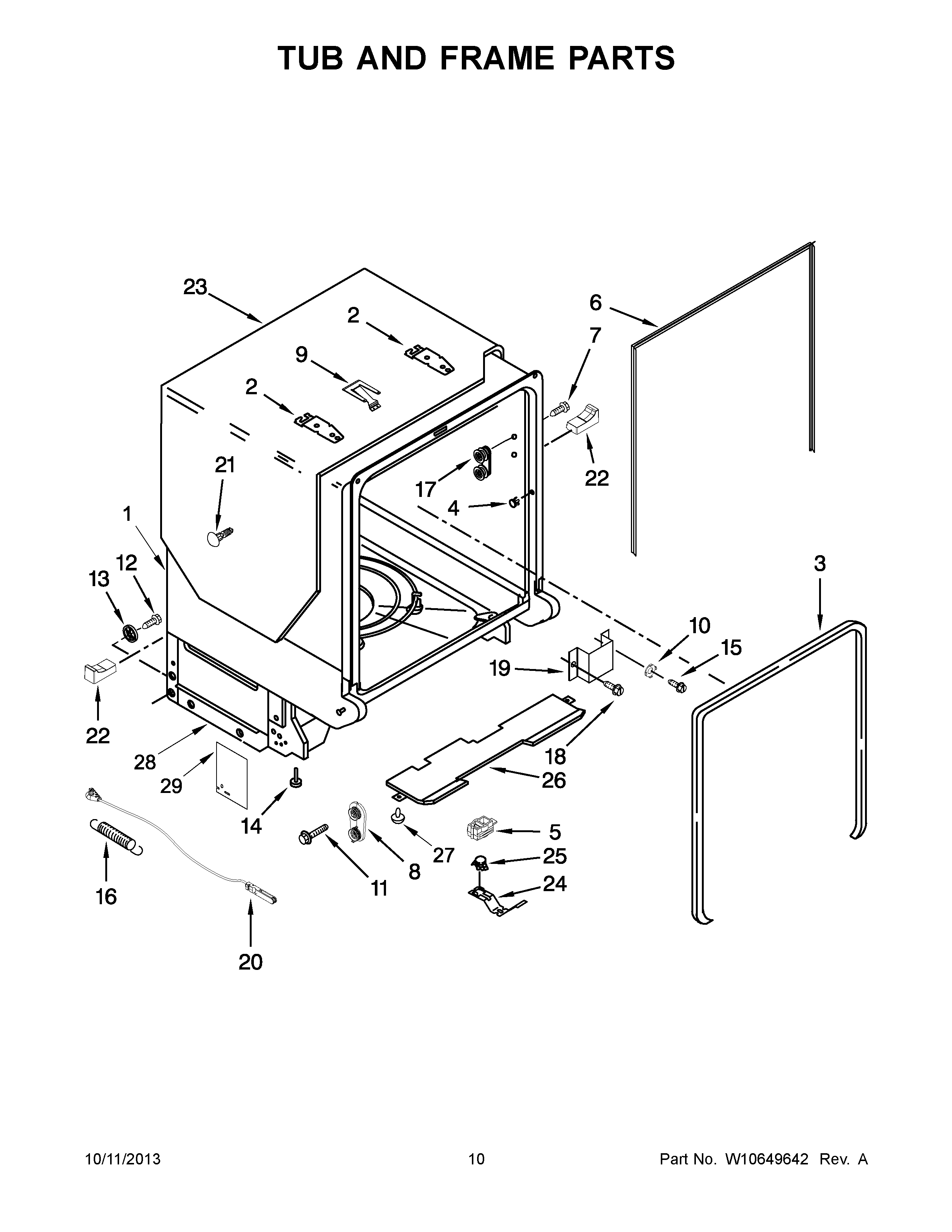

MDB7759SAS4 06 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	MAY 8269145
3	SEAL, DOOR
4	MAY W10082838
5	MAY W10292870
6	SEAL, CABINET
7	MAY W10309090
8	DOOR BALANCE ASSEMBLY
9	STRIKE, LATCH
10	WASHER, PRONGED CUP
11	SCREW
12	MAY W10348411
13	WHEEL, LEG
14	MAY W10304228
15	MAY 3400014
16	MAY 8270020
17	MAY W10505748
18	MAY 3400892
19	MAY 8268991
20	CABLE, DOOR ASSEMBLY
21	RETAINER, PUSH
22	SPACER, TUB/BRACE (LEFT)
22	SPACER, TUB/BRACE (RIGHT)
23	MAY 8573240
24	MAY W10300703
25	MAY W10195091
26	INSULATION BOTTOM
27	MAY 3400924
28	MAY W10398392
29	MAY W10609495
