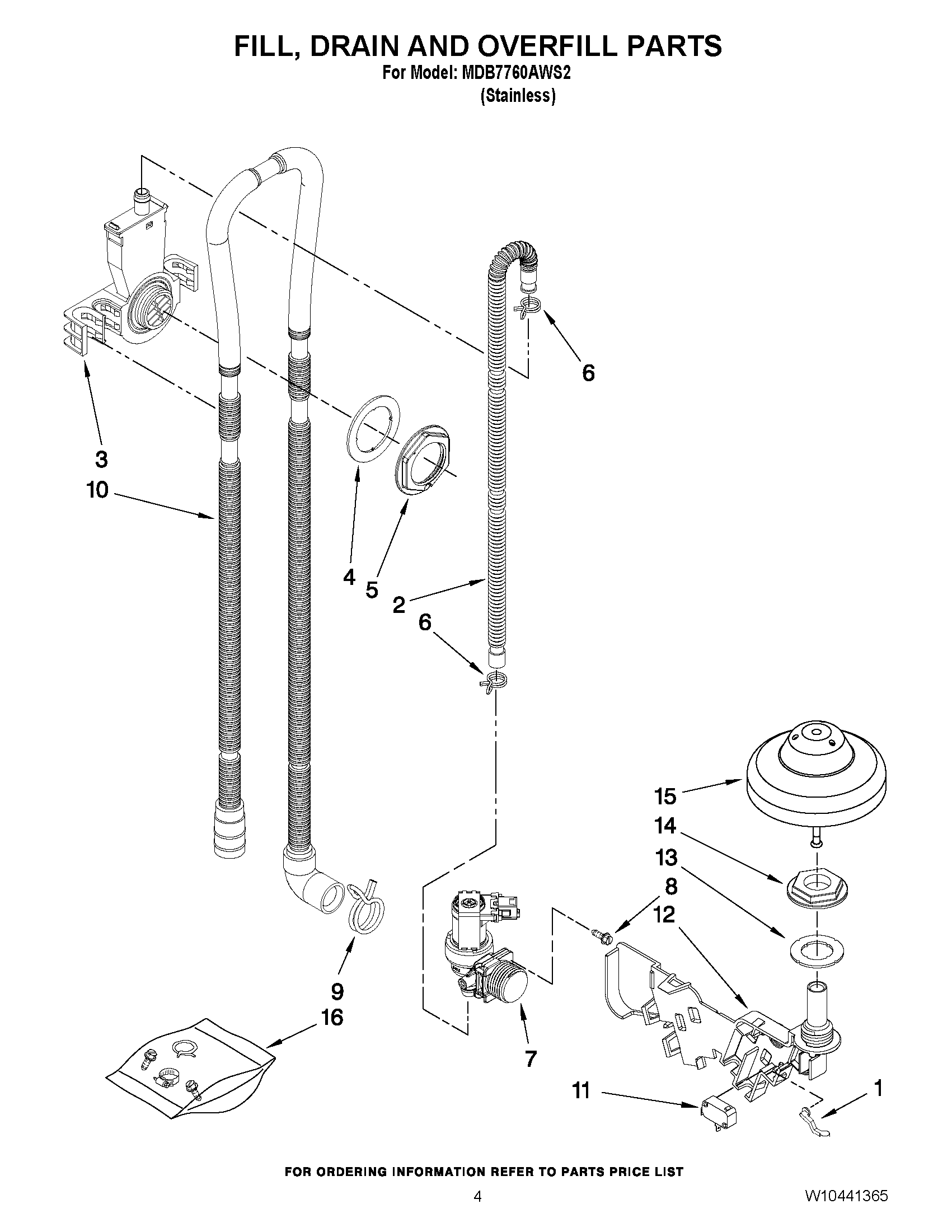

MDB7760AWS2 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1LEVER, OVERFLOW SWITCH
2MAY 8531412
3WATER INLET (ALSO ORDER ITEMS 4)
4MAY 8531323
5NUT, WATER INLET (ALSO ORDER ITEM 4)
6MAY 371505
7MAY W10195047
8Screw
9MAY 370445
10MAY W10195750
11SWITCH, OVERFILL
12STANDPIPE, OVERFILL (ALSO INCLUDES ITEM 13)
13MAY 8531743
14MAY W10195038
15MAY 8268895
16MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAMPS, SCREWS & 2UNDER COUNTER BRACKETS)
