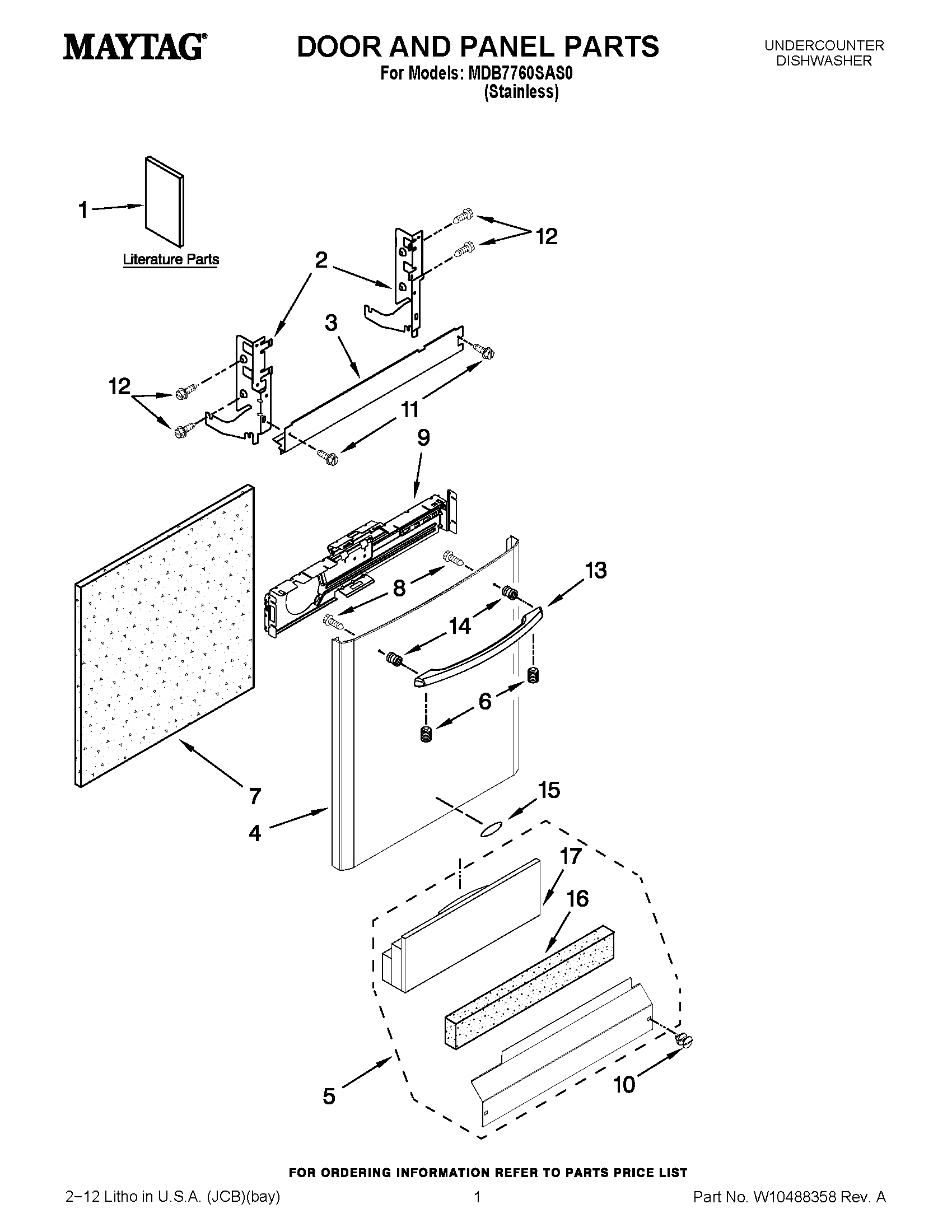

MDB7760SAS0 01 – DOOR AND PANEL PARTS

MDB7760SAS0 01 – DOOR AND PANEL PARTS

Written by

in

MDB7760SAS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1TECH SHEET (FRENCH)
1MAY W10401491
1MAY W10401504
1TECH SHEET (ENGLISH)
1MAY W10401494
2MAY 8534854
2MAY 8534853
3VAPOR BARRIER ASSEMBLY
4PANEL FRONT (ALSO INCLUDES ITEMS 8, 13, 15) (STAINLESS)
5MAY W10368715
6SCREW, SET
7MAY W10073520
8MAY W10316572
9BRACKET, CONTROL
10SCREW (BLACK)
11Screw
12SCREW
13MAY W10461637
14MAY W10195726
15BADGE (BLACK)
16INSULATION, TOE PANEL
17MAY W10350437
