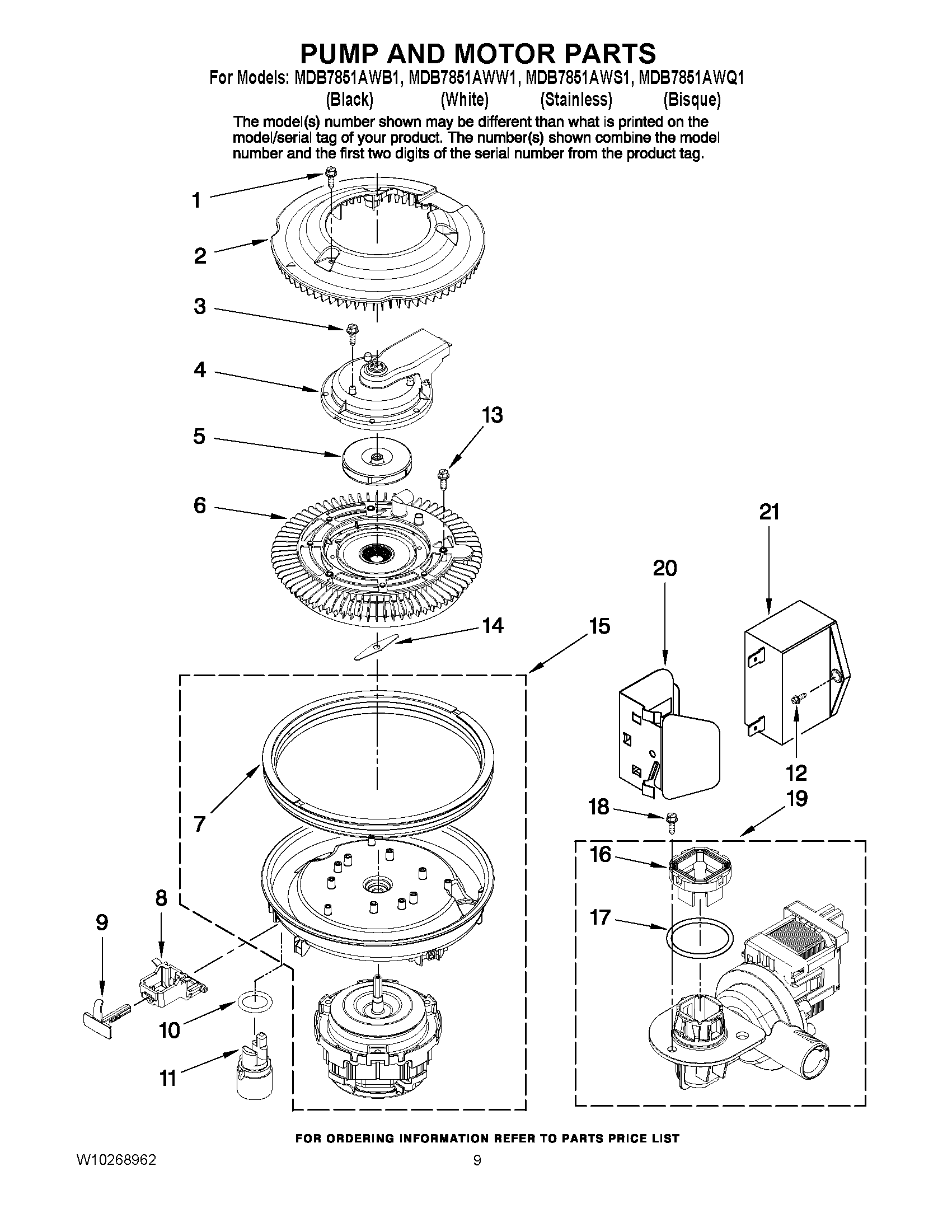

MDB7851AWB1 08 – PUMP AND MOTOR PARTS

Products

Position	Product
1	MAY 99002666
2	MAY W10166790
3	SCREW, STAINLESS PAN HEAD
4	MAY W10212444
5	WP99002659 Whirlpool Impeller
6	MAY W10192800
7	12002361 Whirlpool Dishwasher Gasket, Pump (W/SILICONE)
8	MAY 99003056
9	MAY 99003057
10	99002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
11	MAY W10120019
12	SCREW 10-32X.400 (T-20 HEAD)
13	SCREW, DISCHARGE HOUSING
14	MAY 6-919353
15	MAY W10118627
16	MAY 6-919119
17	MAY 6-917029
18	SCREW, TRUSS HEAD (10-18X.75)
19	MAY W10119816
20	MAY W10167912
21	CAPACITOR, MOTOR
